DS200NATOG2A - Voltage Feedback Scaling Board

DS200NATOG2A - Voltage Feedback Scaling Board DS200NATOG2A - Voltage Feedback Scaling Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200NATOG2A - Voltage Feedback Scaling Board is available in stock which ships the same day.

DS200NATOG2A - Voltage Feedback Scaling Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200NATOG2A - Voltage Feedback Scaling Board, contact us and we will get back to you within 24 hours.


Part Number: DS200NATOG2A
Manufacturer: General Electric
Series: LCI Innovation
Function: Input-Output Card
Product Type: Voltage Feedback Board
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100225

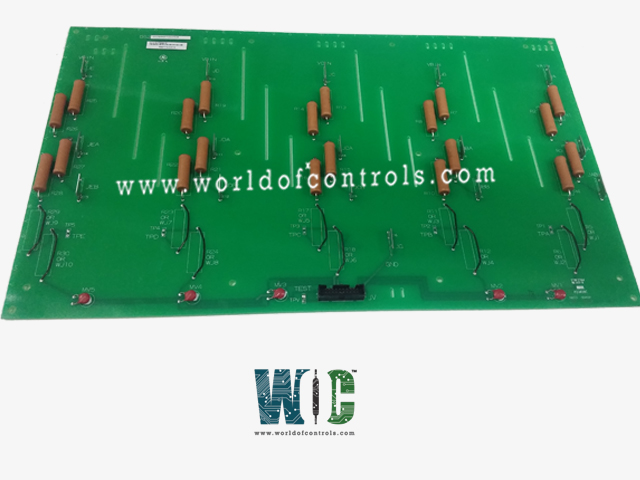

DS200NATOG2A is a Voltage Feedback Scaling Board manufactured and designed by General Electric as part of the Mark V Series used in gas turbine control systems. The Voltage Feedback Scaling board (NATO) attenuates the AC and DC voltages of an SCR bridge so that bridge voltage feedbacks may be accurately derived. It works in conjunction with two other boards, a VME backplane and a gate distribution and status board.


The NATO board contains five identical, series-connected strings of precision resistors. There is one string for each of the three AC phases, and one more apiece for positive and negative DC bus voltage. Each string can be configured using a selection of three different input stab connectors and two wire jumpers to at-tenuate 6900. 4200. 3300, 2200, or 1200 volt input.


The outputs of the five strings are connected to a single 20-pin ribbon header (see Table 2). A metal oxide varistor (MOV) prevents the output voltage of each string from becoming too high if the output ribbon circuit is interrupted while the input voltage is present. The burden resistor is located on the gate distribution and status board, rather than the NATO board.


RESISTOR STRINGS: The resistors on this board are grouped into five resistor strings denoted by the letters A through E (see string headings in Figure 1). Each string has three input points (stab connectors) for a total of 15 input points. Each string also has two optional wire jumpers, for a total of 10.

STAB CONNECTORS: Three stab connectors in each of the five resistor strings allow the user to connect input power to a varying number of the resistors, in order to accommodate a range of voltages. In the Stab Connector column of Table 1, replace x with the designator of the string to ascertain the appropriate connector. For example, for string C, the relevant stab connectors are JC, JCA, and JCB.

WOC has the largest stock of GE LCI Innovation Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


How to Check Price and Availability For DS200NATOG2A?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How long does it take WOC to repair my boards?

Your boards will be repaired by WOC in 3 to 5 business days. WOC also offers up to 24 months of customer satisfaction warranty on all repairs.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.
