DS200MBHAG1A - Multi-bridge Hub Communications Board

DS200MBHAG1A - Multi-bridge Hub Communications Board DS200MBHAG1A - Multi-bridge Hub Communications Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200MBHAG1A - Multi-bridge Hub Communications Board is available in stock which ships the same day.

DS200MBHAG1A - Multi-bridge Hub Communications Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200MBHAG1A - Multi-bridge Hub Communications Board, contact us and we will get back to you within 24 hours.


Part Number: DS200MBHAG1A
Manufacturer: General Electric
Series: Drive Control
Function: Multi-Bridge Hub Communications Board
Configurable Hardware: 1 Berg-Type Jumper (JP1)
Instruction Manual: GEI-100172
Product Type: DC2000 Digital Adjustable Speed Drive
Weight: 1lbs
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

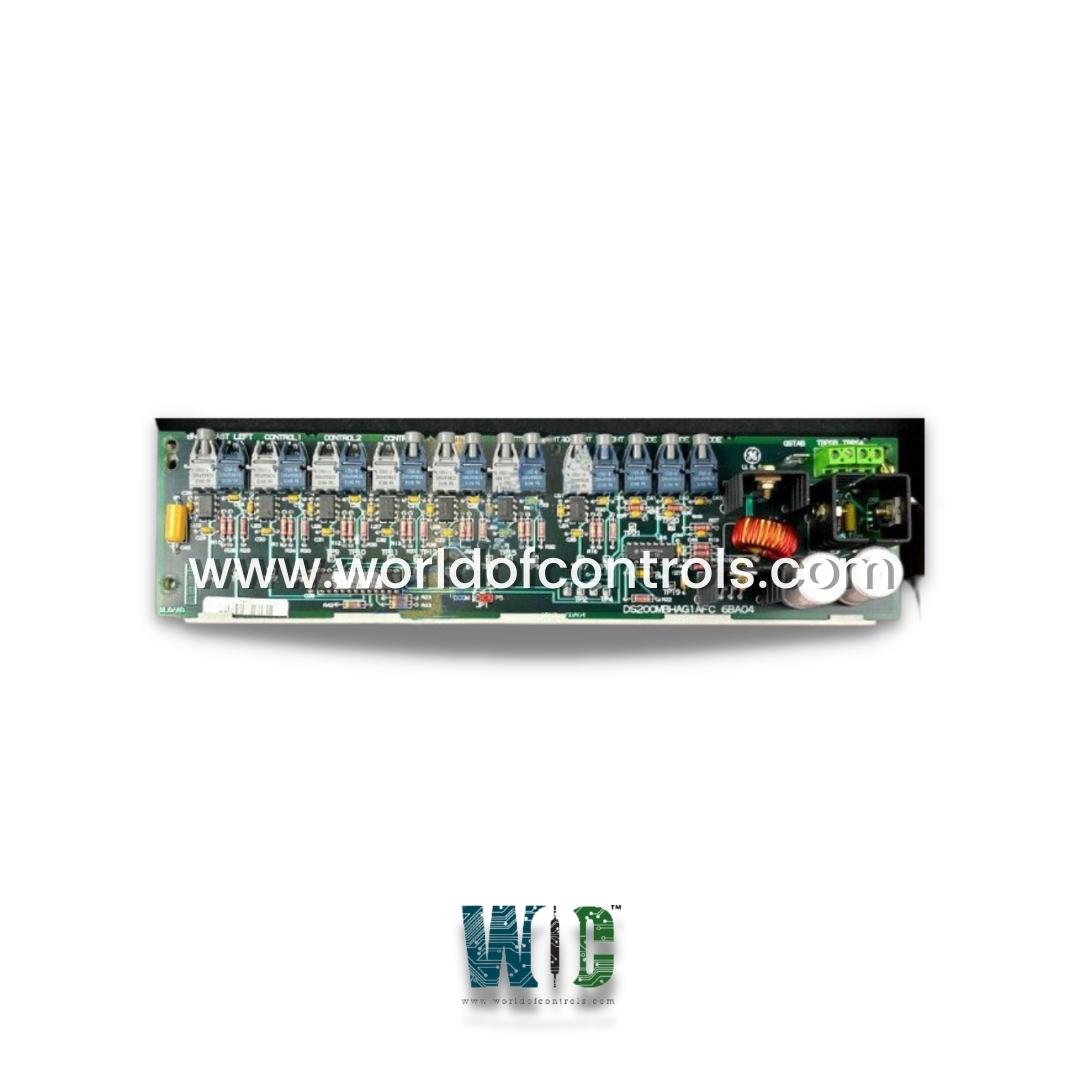

DS200MBHAG1A is a multi-bridge hub communications board developed by GE under Drive Control system. MBHA is the 6ber-optic communications link between a multi-bridge system's member drives. It has an internal +5 V de power supply, seven fiber-optic data links made up of receiver/transmitter pairs, optically coupled logic inputs for controlling local/broadcast modes, and a programmable logic device to provide system logic. The DC2000 Digital Adjustable Drive system includes a Multi-Bridge Hub Communications Board that acts as the application's fiber-optic communication link. Once installed, the card offers users fiber optic connectivity for signal transmission and reception. When this unit is installed, communication between multi-bridge system drives and neighboring drive systems is feasible.

DS200MBHAG1A Features

  • Fiber Optic Data Links: The board features seven fiber optic data links located along the edge of the board. These data links are designed to facilitate high-speed data communications. Each data link consists of a receiver/transmitter pair, which allows bidirectional communication at a rate of 1 Mbaud. These fiber optic data links provide reliable and efficient data transmission between the board and other connected devices.
  • Fiber Optic Logic Inputs: Includes three fiber optic logic inputs. These inputs utilize fiber optic receivers to receive control signals. The logic inputs enable control of local/broadcast modes from various drives or external devices. This functionality allows the board to receive and process control commands, enhancing its versatility in different automation applications.
  • On-board Logic Control System: Equipped with an on-board logic control system. This system provides the board with logic control capabilities, allowing it to perform various control and coordination functions within the overall system. The on-board logic control system enhances the autonomy and intelligence of the board, enabling it to execute specific tasks and respond to different events or conditions.
  • Configurable Jumper and Test Points: The board includes one configurable jumper and 22 test points. The configurable jumper, typically labeled as J1, allows users to modify the board's configuration or functionality according to specific requirements. The test points, on the other hand, provide access to signals, board commons, and power supplies, allowing users to perform diagnostic tests and check the status of different aspects of the board's operation.
  • Power Supply Range: Supports a power supply range of 15 to 30 VDC. This flexibility in power supply voltage allows the board to be compatible with different power systems and ensures its adaptability to various industrial environments.
  • Ethernet Connectors: The board features a long row of Ethernet connectors. These connectors provide a means for establishing Ethernet communication with other devices or network infrastructure. Ethernet connectivity offers fast and reliable communication, enabling seamless integration with Ethernet-enabled devices and systems.
  • G1, G2, and G3 Board Types: It belongs to the G1 board type within the MBHA series. Each board type, including G1, G2, and G3, may have variations in terms of their features and functionalities. In the case of G1 boards, there is a specific jumper (J1) that operates differently compared to the other board types. On G1 boards, J1 serves as a factory test jumper for a programmable logic device input. However, on other board types, J1 may have alternative functions or purposes.

Power Supply

The power supply of the board plays a critical role in providing the necessary electrical power for the MBHA (Main Board Hardware Assembly) and ensuring reliable operation. Here are the expanded details about the power supply:

  • Switching Power Supply: The board is powered by a 100 kHz + 5 V dc switching power supply. A switching power supply is a type of power supply that utilizes high-frequency switching techniques to convert the input voltage to a stable and regulated output voltage.
  • Input Voltage Range: The power supply is designed to be compatible with a wide range of input voltages. It is typically powered by an unregulated 24 V dc source, which is commonly used in industrial applications. The power supply can accept input voltages ranging from 15 to 30 V dc, providing flexibility in connecting to different power sources.
  • Power Consumption: The power supply's power consumption is approximately 5 watts. This value indicates the amount of electrical power consumed by the power supply during operation. It is essential to consider power consumption to ensure proper sizing and compatibility with the overall power requirements of the system.
  • Redundant Inputs: The power supply features redundant inputs, which enhance its reliability and resilience. These redundant inputs are wired in a diode OR configuration. This means that multiple input sources can be connected to the power supply, and it will utilize the higher of the two input voltages. This configuration ensures continuous power supply even if one of the inputs fails or becomes unavailable.
  • Fail-Safe Operation: In case one of the two inputs fails, the power supply can still function. The diode OR configuration allows the power supply to seamlessly switch to the remaining operational input without interruption. This fail-safe operation ensures that the power supply continues to deliver power to the MBHA, maintaining the system's functionality and minimizing downtime.

The power supply's design, with its switching capability, input voltage range, redundant inputs, and fail-safe operation, provides a reliable and stable power source for the MBHA on the board. It allows for consistent and uninterrupted operation of the system, even in the event of a power source failure or fluctuation.

Fibre Optic Transmitter/Receiver Pair

  • The system offer high reliability, the Simplex via software-implemented fault tolerance, and the TMR using that and its triple redundant architecture. Ihe system offer a direct sensor interface, built-in diagnostics, online maintenance, and have a common hardware platform for steam and gas applications.
  • The card functions as a Line Protection board. The card is equipped with drill holes in each board corner as well as others along each edge. These allow for mounting options and can be populated by standoffs or by screws. The board also has a vertical female cable connector, stab-on connectors, two terminal strips, LED indicators, a reset switch, and a transformer component.

Mode Control

  • Includes three fiber-optic receivers (CIMODE, CZMODE, and C3MODE) for receiving mode control information (local/broadcast) from Hom individual drives.
  • The CIMODE and C2MODE receivers are 5 Mbaud data links, while the C3MODE link has circm'ts that reduce its bandwidth to 100 kbaud.

Configurable Hardware

  • It features a Berg-type jumper labeled IP1, which provides a hardware configuration option. This jumper serves a specific purpose related to manufacturing testing and should be configured accordingly for normal operation.
  • The Berg-type jumper, also known as a header jumper or pin header, consists of a plastic housing with a row of metal pins that can be inserted into corresponding sockets. In the case of the MBHA board, the IP1 jumper is utilized to modify the hardware configuration.
  • It is important to note that the IP1 jumper is primarily intended for manufacturing testing purposes and not intended for user-configurable options or operational adjustments. The specific configuration of the jumper for normal operation is to connect pins 1 and 2. This connection ensures the correct hardware configuration is in place, enabling the board to function as intended within the system.
  • The purpose of this configuration may vary depending on the specific requirements or design considerations of the board. It is designed to support proper initialization, calibration, or testing procedures during the manufacturing phase. By configuring the IP1 jumper in the prescribed manner, manufacturers can ensure that the board is ready for deployment and meets the required performance specifications.
  • For normal operation and use of the MBHA board, it is crucial to follow the recommended configuration by connecting pins 1 and 2 of the IP1 jumper. This ensures that the board operates in its designated mode and maintains compatibility with other components and systems within the overall setup.
  • It is worth noting that any modifications or alterations to the jumper configuration should only be performed by qualified personnel and in strict adherence to the manufacturer's guidelines and specifications. Any unauthorized modifications or improper configurations may lead to functionality issues, system errors, or potential damage to the board.

Product Attributes

The product is characterized by several key attributes that contribute to its functionality and connectivity. Here is an expanded description of these attributes:

  • Seven 5-Mbaud Fiber Optic Data Links: The product features a total of seven fiber optic data links. These data links utilize fiber optic cables to transmit and receive data signals at a rate of 5 megabaud (Mbaud). Fiber optic technology offers high-speed and reliable data transmission over longer distances compared to traditional copper-based cables.
  • Three Fiber-Optic Receivers: The product is equipped with three fiber-optic receivers. These receivers are responsible for detecting and converting optical signals transmitted through the fiber optic cables into electrical signals that can be processed by the connected devices or systems. The presence of multiple receivers allows for simultaneous reception of data signals from different sources or channels.
  • Four-Port Terminal Strip: The product includes a four-port terminal strip. A terminal strip, also known as a terminal block or connector strip, is a component that provides a convenient and organized way to connect multiple wires or cables. In this case, the four-port terminal strip allows for the secure connection of various electrical wires or cables, facilitating the integration and interconnection of the product with other components or systems.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.


What is DS200MBHAG1A?
It is a multi-bridge hub communications board developed by GE

What is the function of the component?
Its main function is to provide seven fiber-optic data links for transmitting and receiving data between the member drives, as well as optically coupled logic inputs for controlling local/broadcast modes, and a programmable logic device to provide system logic.

How is MBHA powered?
The card is powered by a 100 kHz +5 V DC switching power supply . The power supply is typically powered by an unregulated 24 V DC source and can accept input voltages ranging from 15 to 30 V.

What are the components of MBHA?
It has several components, including a +5 V DC switching power supply, seven fiber-optic data links made up of receiver/transmitter pairs, optically coupled logic inputs for controlling local/broadcast modes, and a programmable logic device to provide system logic.

Is the hardware configurable?
Yes, the hardware is configurable with 1 Berg-Type Jumper (JP1).

How many ports does this product have?
This product has 7 5-Mbaud fiber-optic data links and 3 fiber-optic receivers.
