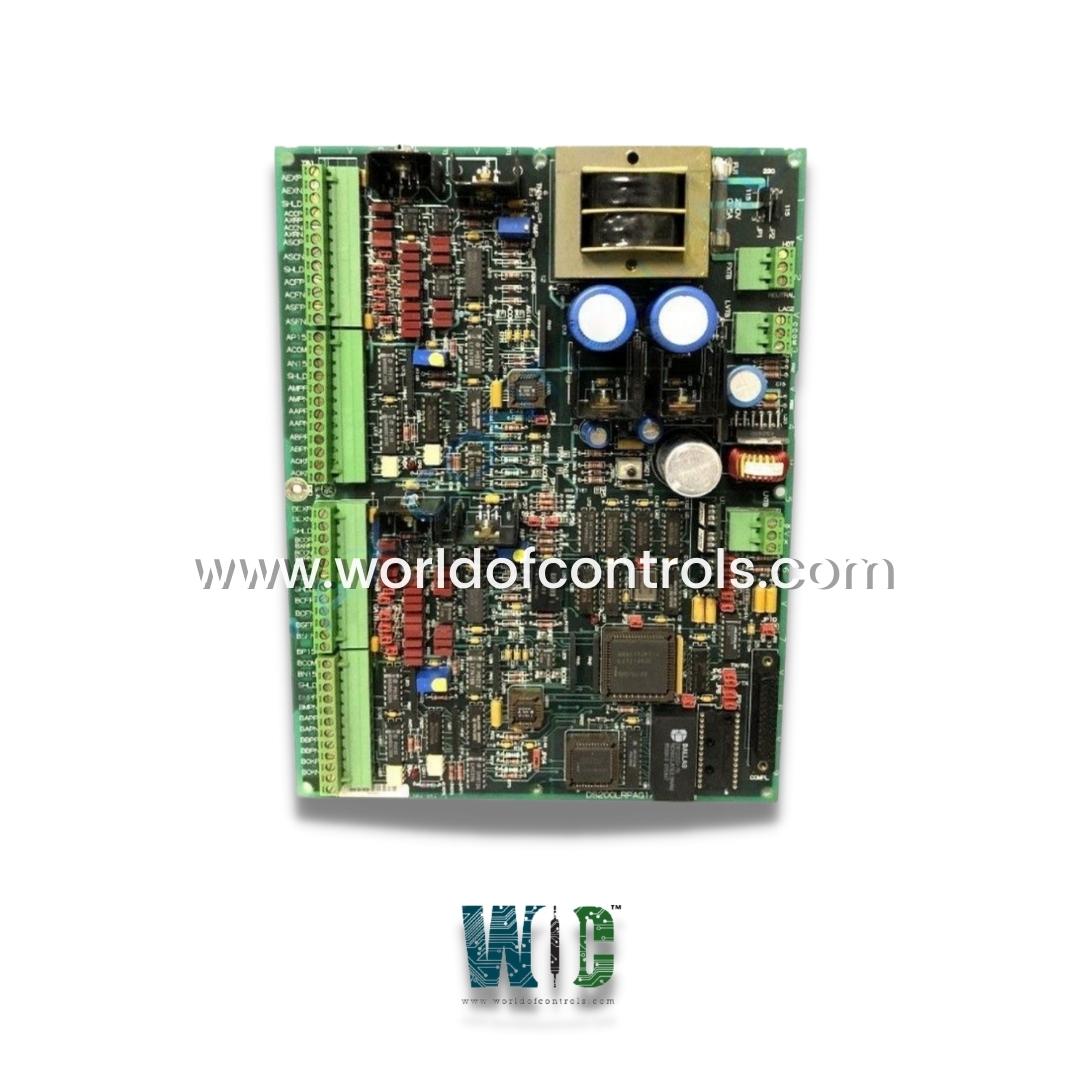

DS200LRPBG1A - Resolver Card

DS200LRPBG1A - Resolver Card DS200LRPBG1A - Resolver Card

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200LRPBG1A - Resolver Card is available in stock which ships the same day.

DS200LRPBG1A - Resolver Card comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200LRPBG1A - Resolver Card, contact us and we will get back to you within 24 hours.


Part Number: DS200LRPBG1A
Manufacturer: General Electric
Series: Drive Control
Product Type: Resolver Card
Country of Manufacture: United States (USA)

Functional Description

DS200LRPBG1A is a Resolver Card manufactured and designed by General Electric. It is a part of the Drive Control Series. These control units are equipped with digital microprocessor modules that enhance their capabilities. A key feature of is its incorporation of SIFT (Software-Implemented Fault Tolerance), a technique aimed at elevating the performance potential of the turbine system. The core functionalities of these control units are categorized into C, representing communication, P, denoting protection, and PD, signifying power distribution. The series encompasses various settings that enable versatile input and output capabilities.


  • The board is an essential component within the Mark V series, tailored to facilitate the control of hydro-electric turbine systems.
  • Within the Mark V system, a wide array of functions is managed, including speed regulation, temperature monitoring, and fire control. The board operates as a resolver card circuit board within this intricate system.
  • It features user-friendly terminal strips that enable swift I/O connections, and its design incorporates jumper settings that provide customization options for board utilization. Moreover, the unit's construction incorporates multiple heat sinks, effectively managing the dissipation of component-generated heat.

WOC has the largest stock of GE Distributed Gas Turbine Control System Replacement Parts. We can also repair your faulty boards. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs contact us.


What is DS200LRPBG1A?
It is a Resolver Card manufactured and designed by General Electric

How does the component handle heat dissipation?
The board is designed with multiple heat sinks to effectively dissipate heat generated by the components. This design feature contributes to the reliability and longevity of the board's operation.

Where can I find more information about this board?
Detailed information, including installation guidelines and handling procedures, can be found in General Electric manuals and user guides. It is essential to review all provided documentation before engaging in maintenance or installation activities.
