DS200FCGDH1A - Gate Distribution and Status Board

DS200FCGDH1A - Gate Distribution and Status Board DS200FCGDH1A - Gate Distribution and Status Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200FCGDH1A - Gate Distribution and Status Board is available in stock which ships the same day.

DS200FCGDH1A - Gate Distribution and Status Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200FCGDH1A - Gate Distribution and Status Board, contact us and we will get back to you within 24 hours.


Part No: DS200FCGDH1A
Manufacturer: General Electric
Product Type: Gate Distribution and Status Board
Series: LS2100 Innovation Series
Power Supplies: 240 Vdc
Frequency Range: 15 Hz - 7
Operating Temperature: 0°C to 55°C
Availability: In Stock
Weight: 2.00 lbs
Size: 9.2 x 6.3 inches
Country of Origin: USA
Manual: GEI-100221

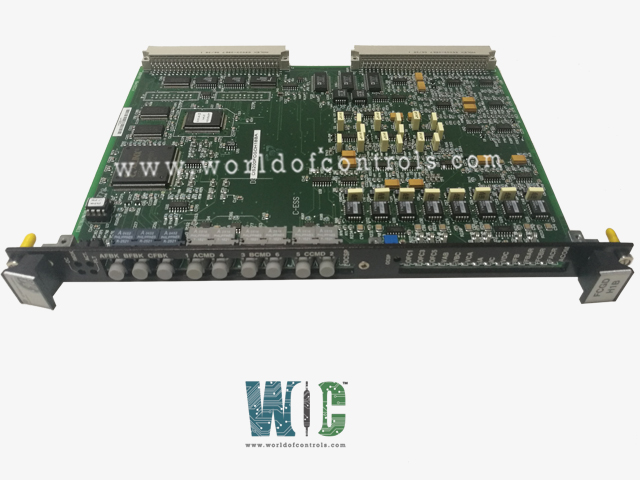

DS200FCGDH1A is a Gate Distribution and Status Board manufactured and designed by General Electric and is part of the LS2100 Innovation Series used in Static Starter Control systems. An interface board for a 6-pulse phase-controlled, non-reversing bridge is called the Gate Distribution and Status Card (FCGD). Through the VME backplane, it transmits feedback and diagnostic data after receiving SCR firing data from the DS200DSPC (DSPC, the VME processor) chip. The FCGD receives a multiplexed cell status signal from each bridge leg and decodes and de-tributes the cell gating signals for each bridge leg. Additionally, it takes in bridge feedback signals, scales them, and then transmits the voltage, frequency, and current status data back to the DSPC board.


SYSTEM CLOCK: The FCGD features a system clock register that produces firing commands and timestamp feedback values. This 16-bit up-counter ends when it reaches the hexadecimal value 0FFFFH and resets to 0.

SYSTEM RESET: During power-ups or hardware resets, the system reset signal sets all of the registers on the board to their starting settings.

SYSTEM HEARTBEAT: An electronic component's heartbeat is a regular signal that it sends out to let other components know that it is still alive and well. This function is supported by the system heartbeat register on the FCGD. The board-level heartbeat starts to count at the same rate as the system clock when the VME host CPU writes to it for the first time, and a green board-front LED marked IMOK (I am alright) turns on.

ANALOG & DIGITAL CONDITIONING: For analog voltage, current, and flux feedback, voltage-controlled oscillators are utilized. The VCOs are driven by the signals VA, VB, VC, VDC, IA, IC, FLUXBAR, and FLUXCBR (see Table 1). Additionally, six parallel Sigma-Delta converters that work with the VCOs are fed with the voltage and current signals.

WOC maintains the largest inventory of Replacement parts for GE Static Starter Control systems. Additionally, we offer warranty-backed unused and rebuilt boards as well as board repairs for your damaged ones. For your OEM needs, our team of professionals is available around-the-clock. We at WOC are happy to help you with any needs you may have in terms of automation. Please contact our team by phone or email for pricing and availability on any components and repairs.


How to Check the Price and Availability For Gate Distribution and Status Board?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

What Payment Options do You Accept?

Bank Transfer is the preferred payment method. For more payment options contact us.

Does WOC Provide a Warranty Certificate For their Products?

WOC provides warranty certificates depending on the Parts.
