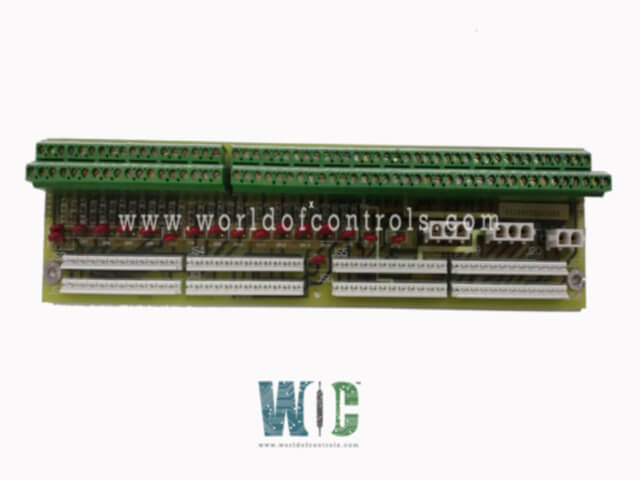

DS200DTBDG1AAB - Contact Output Expansion Termination Module

SPECIFICATIONS

Part No.: DS200DTBDG1AAB
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Contact Output Expansion Termination Module
Availability: In Stock
Series: Mark V

Functional Description

DS200DTBDG1AAB is a Contact Output Expansion Termination Module developed by GE. It is a part of Mark V control system.It serves as a crucial link to the relays located on the TCRA, specifically integrated into locations five of Q11, Q21, and Q51.

Features

• Within Q21 and Q51, DTBD offers a versatile configuration option where sixteen out of its 30 outputs, specifically located in position four, can be adapted for solenoid functionality using dedicated hardware jumpers. This flexibility enhances the module's utility by enabling tailored operational setups suitable for various applications requiring solenoid control.
• Moreover, DTBD features two distinct contact outputs, numbered #47 and #48, which can alternatively be utilized for ignition transformers. This capability is contingent upon connecting J19 and J20 while removing factory-installed wire jumpers. This configuration adjustment allows for efficient adaptation of the module to meet specific ignition system requirements, enhancing overall system flexibility and functionality.
• JS1 through JS8, J8, J19, and J20 - play integral roles in the operational dynamics of the system. They enable crucial functions such as relay signal reading, solenoid activation, and power distribution to ensure optimal performance and functionality across different operational zones within the system architecture.

The WOC team is always available to help you with your Mark V requirements. For more information, please contact WOC.

Frequently Asked Questions

What is DS200DTBDG1AAB?
It is a Contact Output Expansion Termination Module developed by GE under the Mark V series.

What are JS1 through JS8 used for?
JS1 through JS8 read the relay signals transmitted from the TCRA board located in position five. They serve as input interfaces for monitoring and controlling relay status within the system.

What is the role of J8 in the system?
J8 receives power from the TCPD board in the PD core. This power is used to activate solenoids, ensuring they operate according to system commands.
