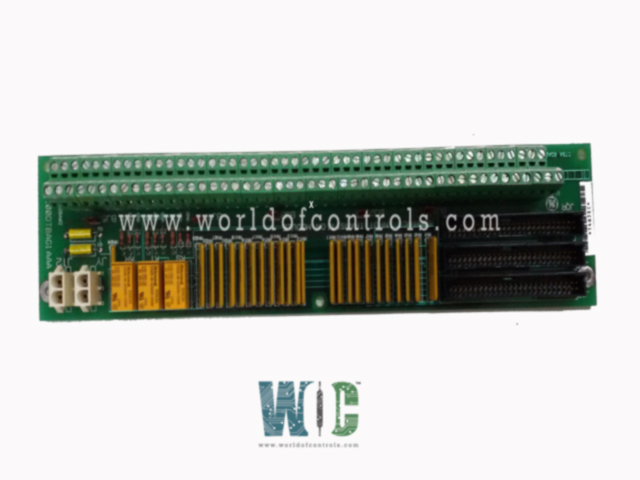

DS200DTBAG1A - Digital Contact Terminal Board

DS200DTBAG1A - Digital Contact Terminal Board DS200DTBAG1A - Digital Contact Terminal Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200DTBAG1A - Digital Contact Terminal Board is available in stock which ships the same day.

DS200DTBAG1A - Digital Contact Terminal Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200DTBAG1A - Digital Contact Terminal Board, contact us and we will get back to you within 24 hours.


Part Number: DS200DTBAG1A
Manufacturer: General Electric
Product Type: Digital Contact Terminal Board
Series: Mark V LM
Availability: In Stock
Country of Origin: USA

DS200DTBAG1A is a Digital Contact Terminal Board manufactured by General Electric as part of the Mark V LM Series used in gas turbine control management systems. Q11, Q21, and Q51 are the locations of the Contact Input Termination Module (DTBA). The first 46 contact inputs in the same digital core are connected to TCDA through DTBA. To enable fail-safe contact input functionality, the inputs can be configured in the TCDA IO Configuration to invert the contact sense. JY receives 125 V dc power from the DTBA board. The TB2 terminal board allows the excitation voltage for contact inputs DTBA and DTBB terminal boards in the digital cores to be 125 V dc from core or 24 V dc from

core. Implementation of the desired contact input excitation option is done at the factory.

  • To provide a fuse isolated and current limited interrogation voltage for the contact inputs, the Mark V LM controller draws either 125 V dc or 24 V dc from the power distribution core. By cutting off the interrogation voltage, jumpers on the DTBA and DTBB terminal boards can be utilized to isolate field grounds.
  • They are connected in eight-contact input groupings. Changes to these jumpers should only be made when the turbine is not in operation. On the TCDA board, which is in Location 1 of the digital I/O core, each contact input is optically isolated.
  • The CPU on the TCDA board assigns a time stamp to each contact input within 1 millisecond of a status change. Whenever a contact input's state changes, the operator interface printer can record the time stamp if the input is chosen for logging. If the contact input circuit fails, diagnostic checks constantly run and sound an alert.

WOC has the largest stock of Speedtronic Mark V control spares. We can repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.



What input voltage range does DTBA support?

It can accept voltages between 24 VDC and 125 VDC as input.

The DTBA termination board is for which contact inputs?

For digital contact inputs 1-46, it serves as a termination.

What kind of processors does the DS200DTBAG1A support?

Either the Common Data processor core or the digital I/O core for the three control processors are compatible with DS200DTBAG1A.
