IS200TRLYH1BGF - Relay Output Board

IS200TRLYH1BGF - Relay Output Board IS200TRLYH1BGF - Relay Output Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200TRLYH1BGF - Relay Output Board is available in stock which ships the same day.

IS200TRLYH1BGF - Relay Output Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200TRLYH1BGF - Relay Output Board, contact us and we will get back to you within 24 hours.


Part No.: IS200TRLYH1BGF
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Temperature rating: 0 to 60 oC
Size: 17.8 cm wide x 33.02 cm high
Temperature: -30 to + 65oC
Product Type: Relay Output Board
Availability: In Stock
Series: Mark VI

Functional Description

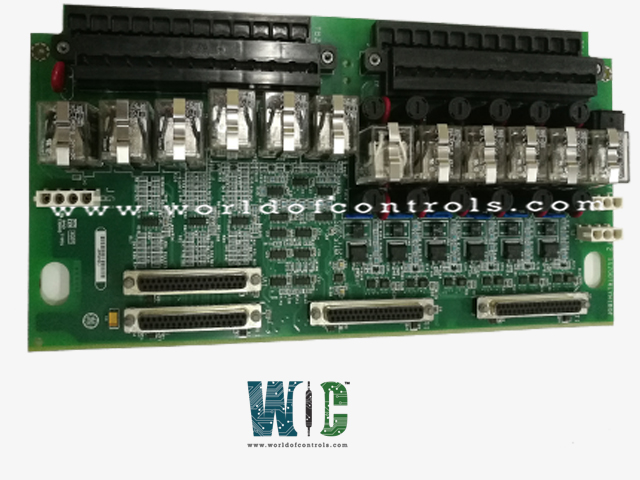

IS200TRLYH1BGF is a relay output board developed by GE. It is a part of Mark VI control system. In Mark VI systems, TRLY is under the control of either the VCCC, VCRC, or VGEN board, catering to both simplex and TMR configurations. Cables featuring molded plugs establish the connection between the terminal board and the VME rack, where the I/O boards reside. For simplex setups, Connector JA1 is utilized, while TMR systems employ connectors JR1, JS1, and JT1.


  • Relay Configuration: The board houses 12 plug-in magnetic relays, offering flexible configurations for different applications and requirements.
  • Output Options: The board's first six relay circuits are configurable via jumpers, enabling the selection between dry, Form-C contact outputs, or the driving of external solenoids.
  • Power Sources: Multiple power source options are available, including a standard 125 V DC or 115/230 V AC source, along with an optional 24 V DC source. Each source features individual jumper-selectable fuses and onboard suppression for enhanced safety.
  • Relay Functionality: Relays 7-11 provide unpowered isolated Form-C contacts, while output 12 offers an isolated Form-C contact designed for specialized applications such as ignition transformers.
  • Enhanced Control: With its configurable relay circuits and diverse power source options, the TRLYH1B terminal board provides enhanced control and flexibility in various industrial settings.
  • Reliable Performance: Designed for reliability and longevity, the board ensures consistent performance in demanding operational environments.
  • Integration and Compatibility: The board seamlessly integrates into existing control systems and is compatible with a wide range of industrial equipment and applications.
  • Ease of Installation: Installation and setup are streamlined, allowing for easy integration into control systems without extensive modifications or adjustments.
  • Safety Features: The board incorporates safety features such as onboard suppression and individual jumper-selectable fuses to ensure safe and reliable operation.

Fault Detection Mechanisms

The terminal board is equipped with advanced fault detection mechanisms to ensure system integrity and reliability. These mechanisms include:

  • 1. Loss of Relay Solenoid Excitation Current
    • The board detects any loss of excitation current to the relay solenoids, triggering an alarm or alert to notify operators of the issue.
    • This feature ensures that any disruption in solenoid excitation is promptly identified and addressed to prevent potential system malfunctions.
  • 2. Coil Current Disagreement with Command
    • The TRLYH1B board continuously monitors the coil current and compares it with the commanded value.
    • If there is a discrepancy between the actual and commanded coil currents, the board flags this as a fault condition, indicating a potential issue with the relay operation.
    • This helps maintain accuracy and consistency in relay performance, minimizing the risk of errors or inaccuracies in system operations.
  • 3. Unplugged Cable or Loss of Communication
    • The board actively monitors communication with the associated I/O board, ensuring seamless data exchange and relay control.
    • In case of an unplugged cable or loss of communication with the I/O board, the TRLYH1B terminal board triggers relays to de-energize as a safety measure.
    • This proactive approach helps prevent potential hazards or disruptions caused by communication failures, ensuring continuous system functionality.

The WOC team is always available to help you with your Mark VI requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IS200TRLYH1BGF?
It is a relay output board developed by GE under the Mark VI series.

How are control signals and feedback voltages transmitted in simplex operation?
In simplex operation, D-type connectors facilitate the transmission of control signals and monitor feedback voltages between the I/O processors and TRLY via connector JA1.

What are the specifications of the relays used on the TRLYH1B board?
The relays are driven at the frame rate and have a 3.0 A rating. They have a rated contact-to-contact voltage of 500 V AC for one minute and a rated coil-to-contact voltage of 1,500 V AC for one minute.

What is the typical operation time for the relays?
The typical time to operate the relays is 10 ms.
