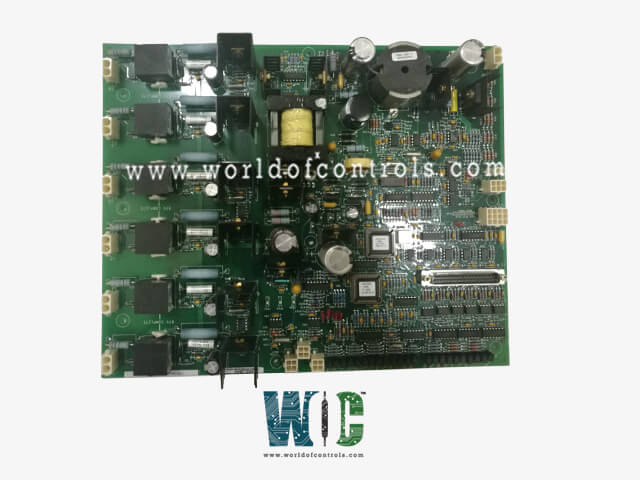

IS200EGPAG1B - Gate Pulse Amplifier Board

IS200EGPAG1B - Gate Pulse Amplifier Board IS200EGPAG1B - Gate Pulse Amplifier Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200EGPAG1B - Gate Pulse Amplifier Board is available in stock which ships the same day.

IS200EGPAG1B - Gate Pulse Amplifier Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200EGPAG1B - Gate Pulse Amplifier Board, contact us and we will get back to you within 24 hours.


Part Number: IS200EGPAG1B
Manufacturer: General Electric
Series: EX2100e
Product Type: PAMC Acoustic Monitor (Processor)
Availability: In Stock
Country of Manufacturer: United States(USA)

Functional Description

IS200EGPAG1B is an Gate Pulse Amplifier Board manufactured by General Electrics. It is a part of the EX2100e series used in gas turbine excitation system. The primary function is to manage gate commands generated by the ESEL (Excitation System Equipment List) and oversee the gate firing process for up to six SCRs (Silicon Controlled Rectifiers) situated on the Power Bridge. Additionally, the EGPA serves as the interface for various important monitoring functions, including current conduction feedback, bridge airflow, and temperature monitoring.


  • Gate Control: It plays a pivotal role in controlling the gate firing process of up to six SCRs on the Power Bridge. It takes the gate commands from the ESEL and ensures the precise and timely activation of these critical components. The accurate control of the gate firing is essential for managing power flow and maintaining system stability.
  • Feedback and Monitoring: It acts as an interface for various monitoring functions, including current conduction feedback. It allows the system to keep a close eye on the electrical currents in the system, ensuring they remain within safe and desired ranges. Additionally, the EGPA is involved in monitoring bridge airflow and temperature, providing crucial data for thermal management and system safety.
  • Power Supply Management: Receives a nominal 125 V DC power supply from the EPDM (Exciter Power Distribution Module). It houses an onboard DC/DC converter, which converts this input power source into the appropriate levels needed for SCR gating. This conversion capability allows the EGPA to function consistently across a wide range of input supply voltage conditions.
  • Visual Status Indication: The board is equipped with LEDs that offer visual indications of various system statuses. These LEDs provide information regarding the status of the EGPA power supply, the reception of gate commands from the ESEL, outputs to the SCRs, currents flowing into the bridge, the performance of the line filter, the rotation of the cooling fan, bridge temperature, as well as any alarms or fault conditions. These visual indicators are essential for real-time monitoring, troubleshooting, and maintenance.

Sensor Inputs

Conduction Current Sensors

  • All three phases of the bridge input are equipped with conduction current sensors.
  • The EGPA serves as an interface between these sensors, which are Hall Effect sensors located on the EXCS (Excitation Control System) boards, and the main control system.
  • Power is supplied to the EXCS, and the EGPA receives signals from the EXCS indicating the status of current flow through each leg of the three-phase bridge input.
  • These status signals are delivered to the EGPA through connectors J9 and J10. The EGPA conditions these signals and transmits the bridge's current status to the controller.

Bridge Temperature Sensors

  • The temperature of the bridge is monitored using an RTD (Resistance Temperature Detector) sensor input or a temperature switch input.
  • In new exciters, only the RTD input is used, and jumpers on the EGPA disable the temperature switch inputs.
  • In cases where a bridge is being retrofitted with an EX2100 control, the two temperature switch inputs are utilized to interface with temperature switches already mounted on the bridge. In this scenario, the RTD input is left open to disable it.
  • Both the RTD and temperature switch inputs are connected to the EGPA at connector J13.

Airflow Sensors (Fan Rotation)

  • To prevent overheating, airflow sensors are used to detect the loss of fan cooling in the bridge.
  • It can accommodate up to four fans, which are connected to it through connector J12.
  • The EGPA accepts either a pulsed or dry-contact, normally open sensor input from the fans. The mode of signal detection is configured through berg jumpers JP2-JP4.

Line Filter Fuse Failure Sensor

  • A line filter fuse failure is sensed and monitored through connector J14 on the EGPA.
  • This sensor input accepts a single, normally closed, dry contact input. It is designed to detect any failure in the line filter fuse, providing an early indication of potential issues with the power supply.

Replacement Procedures

  • De-Energize the Exciter: Ensure the exciter where the board is housed has been powered down to avoid any electrical hazards during the replacement process.
  • Electrical Circuit Test: Open the Power Conversion Cabinet door and perform thorough tests on electrical circuits to verify that power has been completely shut off before initiating any handling.
  • Check LEDs: Confirm that all LEDs are turned off to ensure no residual power or signal transmission through the board.
  • Label Verification for Cables: Ensure that each cable connected to the board is appropriately labeled with the correct connector name as indicated on the board. Proper labeling simplifies the reconnection process later on.
  • Carefully Disconnect Cables: With caution, disconnect all cables attached to the board, paying attention to avoid any damage to the connectors or the board itself.
  • Board Removal: Gently remove the board from its mounting position, ensuring a smooth extraction without causing any disturbance to nearby components.
  • Verify Replacement Board Jumpers: Prior to installation, carefully inspect the replacement card to confirm that all jumpers are correctly positioned, mirroring the configuration of the original board.
  • Install Replacement Board: Carefully re-insert the replacement board into its designated mounting slot, ensuring a proper fit and alignment.
  • Reconnect Cables: Reconnect all cables removed in the previous steps, ensuring they are appropriately reattached to their corresponding connectors on the replacement EGPA board. Securely tighten the connections to prevent any loose contacts.

WOC supports a large number of GE Speedtronic EX2100 parts. Please contact us if you require additional information or have a question.

Frequently Asked Questions


What is IS200EGPAG1B?
It is an Gate Pulse Amplifier Board manufactured by General Electric.

How are the gate commands transmitted from the ESEL to the EGPA?
The gate commands are transmitted from the ESEL to the EGPA through a twisted pair, multiconductor, shielded cable. This design helps protect the signal from interference and noise, ensuring reliable communication.

What is the purpose of optically coupling the gate commands?
Optically coupling the gate commands serves to electrically isolate the ESEL and the EGPA. It prevents electrical interference, such as voltage spikes or noise, from passing between them, which is crucial for system stability and safety.

What happens to the gate commands within the EGPA once received?
Once received, the gate commands undergo filtering and AC coupling. These processes further refine the signals, ensuring that they are free from unwanted noise or distortions that could affect SCR performance.

How does the EGPA interface with the Gate Pulse Amplifiers (GPA)?
EGPA serves as an intermediary, sending the processed and refined gate commands to the Gate Pulse Amplifiers (GPA). The GPA, in turn, is responsible for controlling the SCR operation.

What additional functions does the EGPA serve apart from SCR control?
In addition to SCR control, it acts as an interface for various functionalities such as current conduction feedback and monitoring bridge airflow and temperature, contributing to efficient operation and monitoring of the system.

What key features are depicted in the functional model?
The functional model highlights major I/O (Input/Output) elements critical to its operation and monitoring. This model helps visualize the connectivity and interactions within the EGPA.

How does the board manage its power supply for SCR gating?
It incorporates an on-board dc/dc converter powered by a nominal 125 V dc source from the EPDM. This converter enables SCR gating across a full range of input supply voltage.

What visual indicators does the component offer?
LEDs on the provide visual indications of various statuses, including the power supply, input gate commands from ESEL, EGPA outputs to the SCRs, currents into the bridge, line filter conditions, cooling fan rotation, bridge temperature, alarms, or fault conditions.
