Part No.: IS200EBACG2ABA
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Exciter Bridge AC Feedback Board
Availability: In Stock
Series: EX2100e

Functional Description

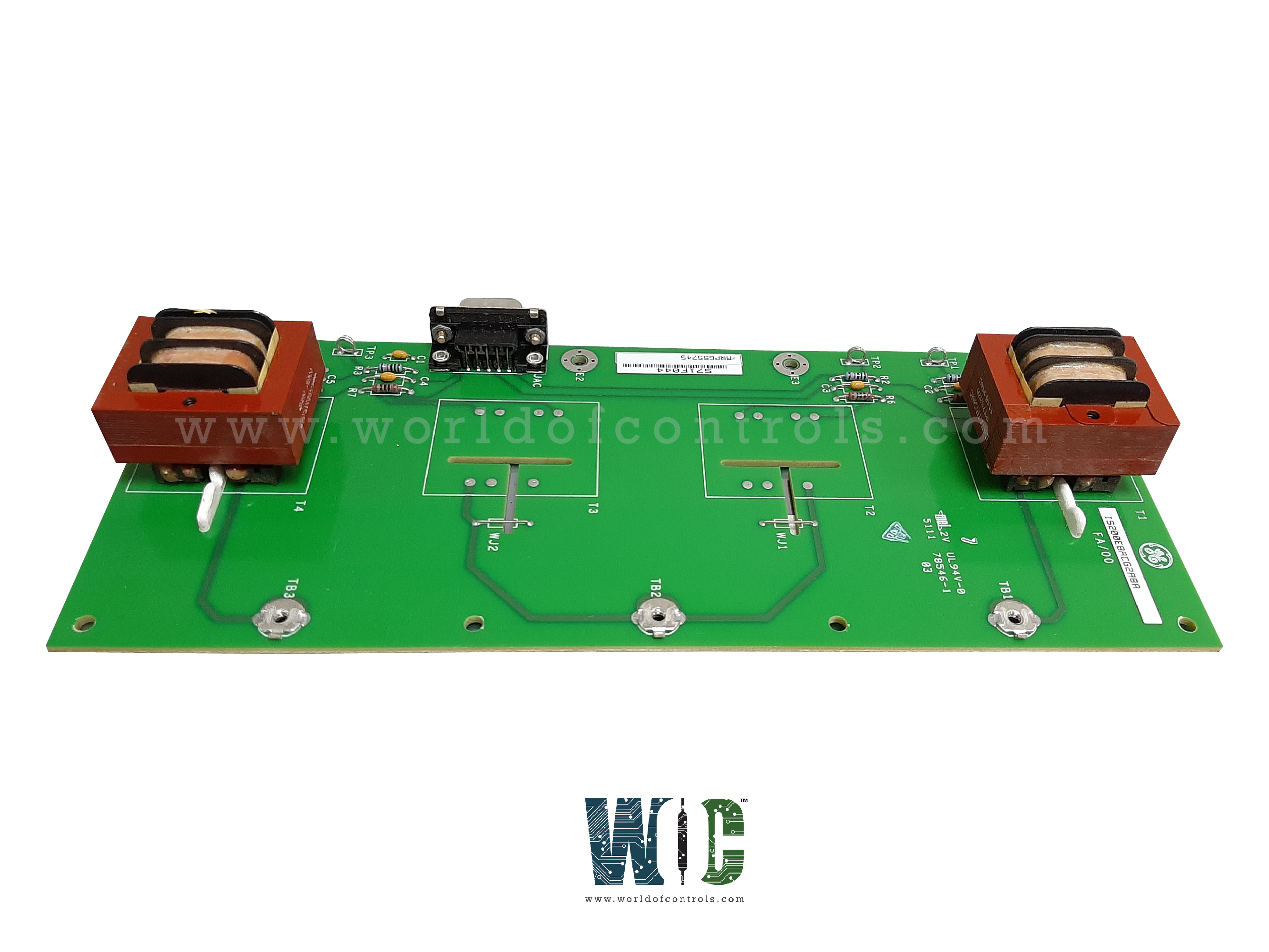

IS200EBACG2ABA is an Exciter Bridge AC Feedback Board developed by GE. It is a part of EX2100e control system. Designed by GE to ensure precise control and synchronization of SCR gating on incoming AC lines. This board utilizes a high-speed serial link protocol to communicate with the system's control processor. It interfaces with other boards such as ESYS, UCSB, HSLA, and CSLA, facilitating seamless integration and coordination within the control system.


  • Voltage Measurement: Equipped with transformers positioned on its surface, the board performs three-phase voltage measurements. These measurements are crucial for synchronizing and controlling SCR gating on the incoming AC lines, ensuring optimal performance and stability.
  • Output Voltage Handling: The board processes the incoming AC voltage signals and generates corresponding output voltages. These output voltages are then distributed to the M1, M2, and C controllers via the EAUX board, contributing to the overall control and regulation of the system.
  • Voltage Range Compatibility: It's essential to consider the voltage range compatibility when selecting the appropriate board for your system. Specifically designed for nominal AC line voltages up to 700 V. For applications requiring higher voltages, similar G1 boards are available. It's crucial to ensure compatibility to avoid any operational issues, as these boards are not interchangeable.
  • System Integration and Reliability: By effectively managing SCR gating and voltage control, the board plays a critical role in maintaining system integrity and reliability. Its robust design and precise functionality contribute to the overall performance and efficiency of the EX2100e control system.
