World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
DS200TCRAG1AAA - Relay Output Board is available in stock which ships the same day.
DS200TCRAG1AAA - Relay Output Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS200TCRAG1AAA - Relay Output Board, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: DS200TCRAG1AAA
Manufacturer: General Electric
Series: Mark V LM
Number of Channels: 8
Product Type: Relay Output Board
Sample Rate: Up to 100 kS/s per channel
Power Requirements: +5 V dc, 6 A
Logic Levels: 3.3V and 5V compatible
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Size: 30.48cm High x 21.33cm
Mounting: 4 mounting Holes
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
FUNCTIONAL DESCRIPTION:

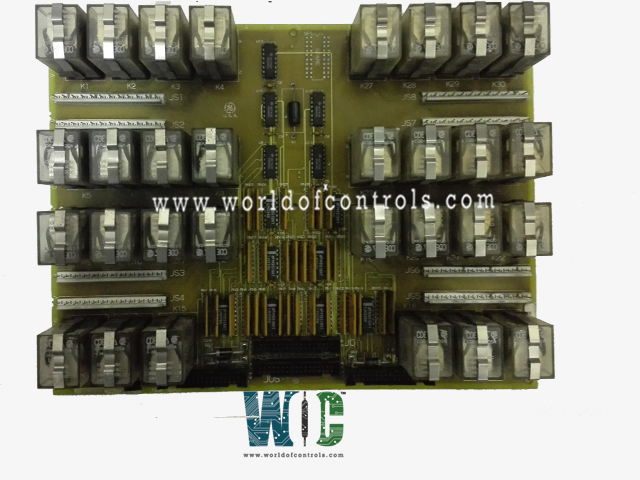

DS200TCRAG1AAA is a Relay Output Board manufactured and designed by General Electric as part of the Mark V LM Series used in the Line of Microprocessor aero-derivative turbine Control Systems. The Relay Output Board (TCRA), located in the digital cores, contains up to 30 relays, K1 through K30. There are two of these boards in each digital IO core. The TCRA board in location four of the
TCRA CONTACT OUTPUT CIRCUITS:
The relays on the TCRA boards are operated by signals from the CSP and sent to the STCA board over COREBUS to the IO Engines. The STCA boards read the signals and send them to the TCDA boards via the IONET. The TCDA board then writes the command signals to energize the relays via the JO connector. The relay (open/close) is connected to the DTBC and DTBD terminal boards via the JS1 through JS8 con- nectors.
WOC has the largest stock of OEM replacement parts for the GE Line of Microprocessor Aero-derivative turbine Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.
What are typical input voltages for Relay Output Boards?
The input voltage required to operate a Relay Output Board depends on its design and application. Common input voltage levels include 5V DC, 12V DC, and 24V DC, which are suitable for use with microcontrollers and industrial control systems. Some boards are designed to work with standard AC voltages, such as 110V or 230V AC, particularly in industrial and home automation environments where higher voltage devices need to be controlled.
How many channels are available in Relay Output Boards?
Relay Output Boards are available in different configurations based on the number of channels, allowing users to control multiple devices simultaneously. Common options include 1-channel, 2-channel, 4-channel, 8-channel, and 16-channel boards. The choice of board depends on the number of devices you need to control and the complexity of your automation setup. Multi-channel boards offer the advantage of compact design and centralized control.
What is the difference between NO and NC terminals?
Relay Output Boards typically have two key terminal types: Normally Open (NO) and Normally Closed (NC). The NO terminal is disconnected by default and only closes the circuit when the relay is activated, allowing current to flow. In contrast, the NC terminal is connected by default and opens the circuit when the relay is triggered, stopping the current flow.
