DS200TCQCG1BHF - BOARD,OVERFLOWTCQCG1B

SPECIFICATIONS

Part Number: DS200TCQCG1BHF
Manufacturer: General Electric
Series: Mark V
Function: Overflow Card

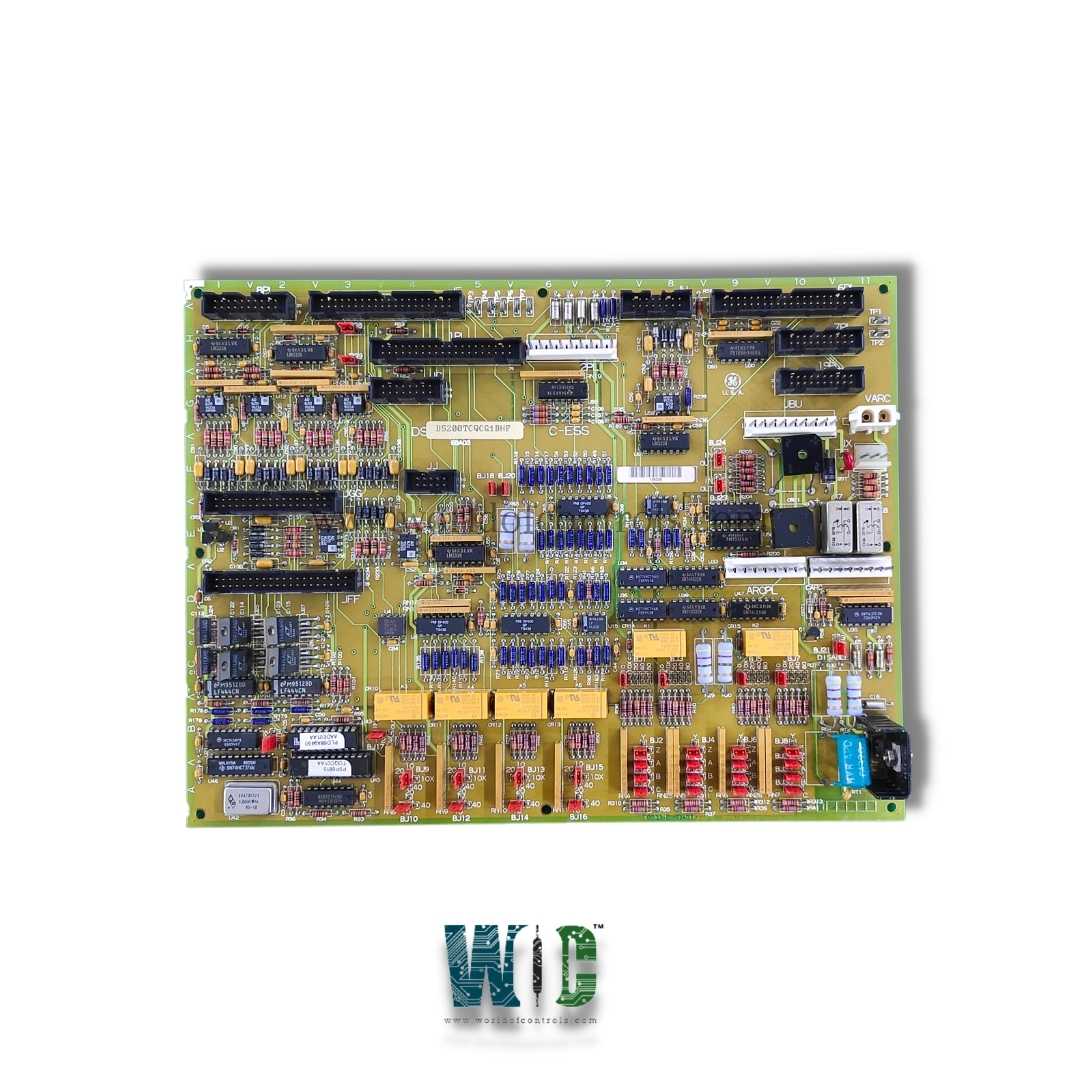

DS200TCQCG1BHF is an EX2000 Overflow RST PCB and is part of the GE Speedtronic Mark V gas turbine control systems. The DS200TCQCG1BHF is most commonly found in Mark V EX2000 subset. The DS200TCQCG1BHF is an Overflow card. Excitation for the LVDT and LVDR is provided by it. Eleven vertical pin cable connectors, five male vertical pin header connectors, and one vertical female plug are among the connectors on the board. Six relay components, over 25 resistor network arrays, TP test points, transistors, ceramic capacitors, diodes, metal film resistors, and capacitors of other materials are among the other board components. There are almost forty integrated circuits on the board, as well as a heat sink and 37 jumper switches.

• WOC has the largest stock of Speedtronic Mark V control spares and we can repair your faulty DS200TCQCG1BHF with a warranty of 12 months. WORLD OF CONTROLS can also supply UNUSED and REBUILT DS200TCQCG1BHF backed up with a warranty of 24 months.

• Our team of experts is available round the clock to support your DS200TCQCG1BHF needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS

What is DS200TCQCG1BHF?

The Overflow card DS200TCQCG1BHF is usually found in the EX2000 Subset.

In the DS200TCQCG1BHF, how many pin connectors are connected?

The connectors on the board include eleven vertical pin cable connectors, five male vertical pin header connectors, and one vertical female plug.

How long does it take for a WOC DS200TCQCG1BHF to Ship?

WOC has a vast inventory and can fill a large number of orders on the same day. For more information, please contact us.
