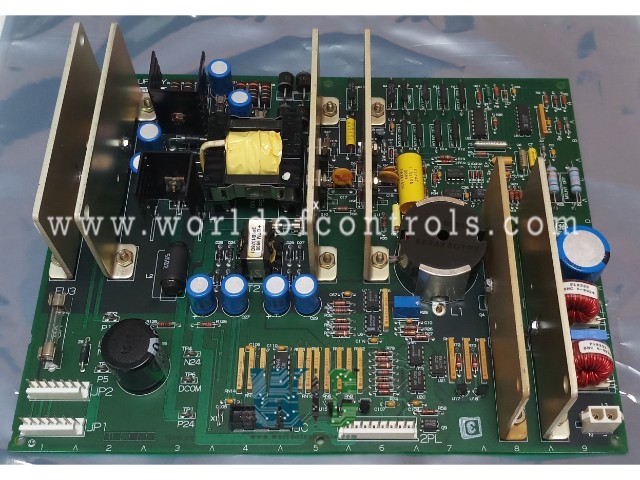

DS200TCPSG1ARE - DC Input Power Supply Board

SPECIFICATIONS:

Part Number: DS200TCPSG1ARE
Manufacturer: General Electric
Series: Mark V LM
Function: Power Supply
Input Voltage Range: 5V to 36V
Input Maximum Current: 2A
DC Output Voltage: 12V
Output Ripple and Noise: 50mV
Temperature Range: -40°C to 85°C
Dimensions: 100mm x 60mm x 20mm
Weight: 50 grams
Availability: In Stock
Country of Origin: United States
Manual: GEH-6353B

FUNCTIONAL DESCRIPTION:

DS200TCPSG1ARE is a DC Input Power Supply Board manufactured and designed by General Electric as part of the LM2500 Series used in GE Aeroderivative Gas Turbine Control Systems. The Power Supply Board (TCPS) is located in and each of the four IO cores converts 125 V dc power from to the voltage levels required. These include, but are not limited to such things as, microprocessor power supply voltages, mA output power supply voltages, RTD power supply voltages, and servo valve current outputs.

TCPS CONNECTORS:

2PL - Distributes the power supply voltages to the various boards in a daisy chain fashion.
J1 - Connector that brings in the 125 V dc power into the TCPS board from the TCPD board in the core.
JC - Distributes power supply voltages for the power supply diagnostics on the TCQC board in cores , , and and the TCCA board in the core.
JP1 - Distributes power supply voltages to the TCDA board in the digital cores , and and to the AAHA boards in the core.
JP2 - Same as JP1. Either JP1 or JP2 could be used. X1 - CCOM bus connection.
TB2 - Four-point terminal board for setting contact input excitation to either 24V dc or 125VC.

TCPS CONFIGURATION:

The IO boards in the Mark V LM controller are configured using a combination of hardware jumpers and software. Many boards in the Mark V LM controller have hardware jumpers for enabling or scaling input and output functions. Appendix A describes the hardware jumper settings, while the signal flow diagrams in Appendix D show how they affect input and output circuits.

I/O BOARD SOFTWARE CONFIGURATION:

The IO boards are programmed to scale and condition IO signals using firmware contained in EEPROM and configuration data stored in RAM. The IO configuration for all boards associated with a specific IO Engine is loaded during every re-boot/startup of their corresponding IO Engine. Each IO Engine receives configuration data from the Control Engine in the core. The Control Engine maintains the data until changed by a download from the operator interface over the Stage Link. The user sets IO configuration data using the I/O Configuration Editor from the operator interface.
