DS200TCPDG1BEC

DS200TCPDG1BEC - POWER DISTRIBUTION

DS200TCPDG1BEC - POWER DISTRIBUTION DS200TCPDG1BEC - POWER DISTRIBUTION

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TCPDG1BEC - POWER DISTRIBUTION is available in stock which ships the same day.

DS200TCPDG1BEC - POWER DISTRIBUTION comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TCPDG1BEC - POWER DISTRIBUTION, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part No.: DS200TCPDG1BEC
Manufacturer: General Electric
Product Type: Power Distribution Board
Series: Mark V

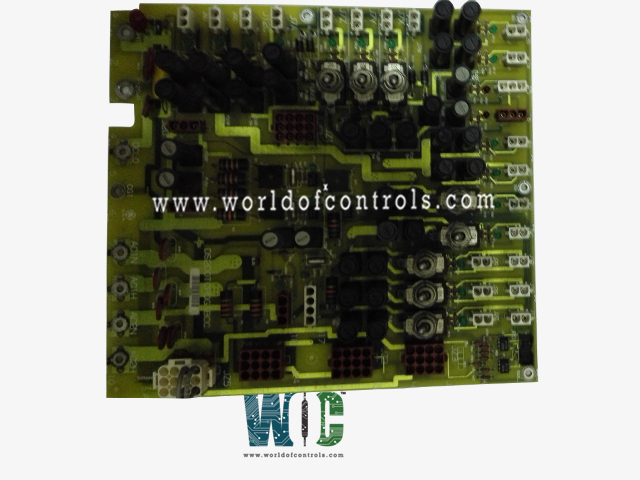

DS200TCPDG1BEC is a power distribution board developed by GE under the Mark V series. There are 36 fuses, 8 toggle switches, and 4 signal wire terminals on the Board.
There are also 36 OK LEDs and 1 10-pin connector. The GE Power Distribution Board DS200TCPDG1BEC is outfitted with 36 fuses housed in black plastic housings.

  • The fuses are located vertically in the canisters and are easy to access and replace when necessary. To replace a fuse on the board, open the canister by twisting the top. For ease of use, the top remains attached to the canister. Remove the fuse from the canister with your thumb and one finger.
  • It is best practice to discard the blown fuse so that it is not accidentally inserted into a canister on the board again. To replace a fuse, align it with the opening and drop it into the canister. The fuse can be inserted into the canister from either end. Close the canister by twisting the top on it. Because the fuse is inside the canister, a visual inspection of the fuse is not possible to determine if it is blown and needs to be replaced.
  • However, each fuse has an LED next to it that indicates whether or not the fuse is in good working order. When lit, the green LED indicates that the fuse element is intact and protecting the board circuit. When it is turned off, either the fuses have blown or the board is not receiving power. If all of the LEDs are turned off, it is possible that the board is not receiving power.

The most comprehensive selection of GE Speedtronic Mark V control components is available at World of Controls. Our experts are available at all times to assist you with your Mark V requirements. If you require any additional information, please contact WOC as soon as possible.



Frequently Asked Questions



What is DS200TCPDG1BEC?
DS200TCPDG1BEC is a power distribution board developed by GE under the Mark V series.

How to Obtain DS200TCPDG1BEC?
World of Controls provides DS200TCPDG1BEC as well as other turbine control products. Contact WOC.
