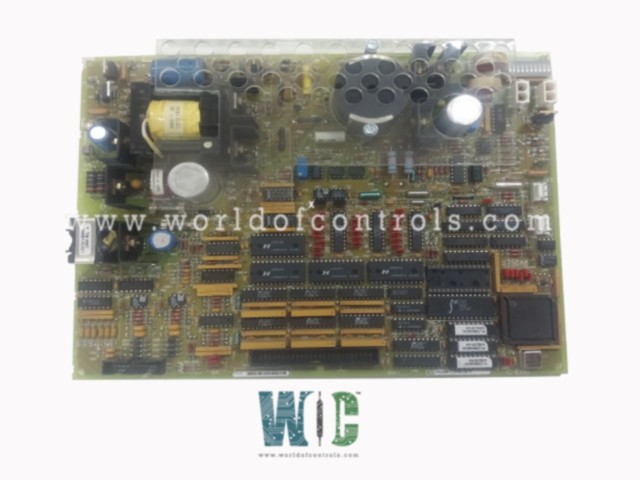

DS200TCEAG1BRE - EMERGENCY OVER SPEED BOARD

SPECIFICATIONS

Part Number: DS200TCEAG1BRE

Manufacturer: General Electric

Series: Mark V

Function: Emergency Over Speed Board

DS200TCEAG1BRE is an Emergency Overspeed Board and is part of the GE Speedtronic Mark V gas turbine control systems. One microprocessor and much programmable read-only memory (PROM) modules are included in the General Electric Emergency Overspeed Board type DS200TCEAG1BRE. Three fuses, 30 jumpers, and a pair of bayonet connections are also included. The board keeps an eye on the drive for over-speed and flame detection trip conditions and shuts it down as needed. The bayonet connectors are used to link the board to the rest of the drive's components and boards. Before connecting the male bayonet connectors on the end of the wires to the female bayonet connectors on the board, take some time to think about it.

• To remove a bayonet connector, maintain one hand on the connector and the other on the board to prevent it from bending or sliding. Remove the bayonet connection from the board's female connector and set aside the cable until you're ready to connect it to the replacement board.

• WOC has the largest stock of Speedtronic Mark V control spares and we can repair your faulty DS200TCEAG1BRE with a warranty of 12 months. WORLD OF CONTROLS can also supply UNUSED and REBUILT DS200TCEAG1BRE backed up with a warranty of 24 months.

• Our team of experts is available round the clock to support your DS200TCEAG1BRE needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What kind of microprocessor is used in the DS200TCEAG1BRE?

DS200TCEAG1BRE has an 80196 microprocessor.

What is the purpose of DS200TCEAG1BRE?

For DS200TCEAG1BRE, there are a series of berg jumpers that program DS200TCEAG1BRE to the place in the P > core where DS200TCEAG1BRE is located.

What is the function of DS200TCEAG1BRE, aside from Overspeed?

The DS200TCEAG1BRE is in charge of processing the Overspeed signals, as well as the flame detection trip signals.
