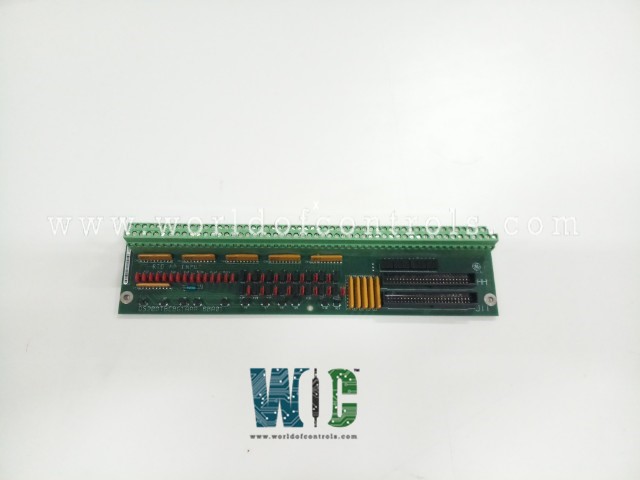

DS200TBCBG1AAA - 4-20 mA RTD Input Termination Module

DS200TBCBG1AAA - 4-20 mA RTD Input Termination Module DS200TBCBG1AAA - 4-20 mA RTD Input Termination Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TBCBG1AAA - 4-20 mA RTD Input Termination Module is available in stock which ships the same day.

DS200TBCBG1AAA - 4-20 mA RTD Input Termination Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TBCBG1AAA - 4-20 mA RTD Input Termination Module, contact us and we will get back to you within 24 hours.


Part Number: DS200TBCBG1AAA
Manufacturer: General Electric
Series: Mark V
Product Type: 4-20 mA RTD Input Termination Module
Power Requirements: +5 V dc, 6 A
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEH-6153


DS200TBCBG1AAA is a 4-20 mA RTD Input Termination Module manufactured and designed by General Electric as part of the Mark V Series used in GE Speedtronic Control Systems. A 4-20 mA RTD (Resistance Temperature Detector) Input Termination Module is a device used in industrial automation and control systems to interface with RTD sensors. The Termination Module RTD and 4-20 mA Input (TBCB) are in location seven of the core. RTD and mA input signals are landed on the TBCB terminal board. Eight of the 4 -20 mA input signals have the option to be configured using hardware jumpers to be 0 -1 mA input signals. The signals connected to the TBCB terminal board are written to the TCCB board in the core.


Input Signal Range: The module is designed to accept input signals in the range of 4-20 mA. This corresponds to the standard current loop used in industrial applications for transmitting sensor data.

RTD Compatibility: The module is specifically tailored for RTD sensors, which are devices that measure temperature by correlating the resistance of the RTD element with temperature. Common RTD types include PT100 and PT1000.

Termination: The term termination in this context refers to the way the module handles the input signal. It likely includes features such as proper impedance matching and signal conditioning to ensure accurate and reliable readings from the RTD sensor.

Module Interface: The module typically provides a standardized interface for connecting the RTD sensor. This may involve terminal blocks, connectors, or other means of securely attaching the sensor wiring to the module.

Power Supply: The module might require a power supply to operate. It could be powered from the same loop that carries the 4-20 mA signal or from a separate power source, depending on the design.

Output Signal: The module may convert the RTD signal into a standardized output signal that can be easily interpreted by other control or monitoring systems. Common output types include analog voltage signals or digital signals such as 0-10 V or 4-20 mA.

Temperature Measurement Accuracy: A high-quality RTD Input Termination Module should provide accurate temperature measurements. Accuracy is crucial in industrial processes where precise control is required.

Isolation: Some modules may incorporate isolation features to protect the connected equipment from electrical interference or to ensure safety in hazardous environments.

Configuration and Calibration: The module might have options for configuration and calibration to adapt to different RTD sensor types and environmental conditions.

Compatibility with Control Systems: The module should be compatible with common industrial control systems and protocols, ensuring seamless integration into larger automation setups.

WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


What is a 4-20 mA RTD Input Termination Module?

A 4-20 mA RTD Input Termination Module is a device used in industrial settings to interface with Resistance Temperature Detector (RTD) sensors. It processes the RTD's electrical signals within the 4-20 mA range for temperature measurement.

How does the 4-20 mA signal work with RTD sensors?

The 4-20 mA signal is a standardized current loop used to transmit sensor data. In the context of RTD sensors, the varying resistance of the RTD element due to temperature changes is translated into a corresponding current within the 4-20 mA range.

What types of RTD sensors are compatible with these modules?

4-20 mA RTD Input Termination Modules are designed to be compatible with various RTD types, including PT100 and PT1000 sensors. These are commonly used in industrial applications for temperature measurement.
