DS200IMCPG1CGC - IGBT Power Supply Board

SPECIFICATIONS

Part Number: DS200IMCPG1CGC
Manufacturer: General Electric
Series: Drive Control
Product Type: IGBT Power Supply Board
Temperature 0 to 60oC (32 to 149 oF)
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

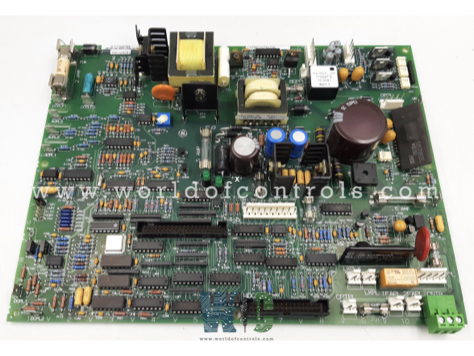

DS200IMCPG1CGC is an IGBT Power Supply Board developed by General Electric. It is a part of drive control system. It facilitates the control and regulation of power distribution within the panel, contributing to the efficient and reliable operation of various systems and subsystems. It incorporates sophisticated control mechanisms and protective features to ensure the safety of the overall system. These may include overcurrent protection, overvoltage protection, thermal management, and fault detection capabilities, among others.

Features

• The Power Requirements for the panel are meticulously managed through a comprehensive diagnostics system. This system ensures the health and stability of each voltage source and feeder, meticulously monitoring even the fuses within each solenoid circuit on the relay terminal board.
• The Mark V panel is designed to seamlessly integrate power from multiple sources, providing flexibility and redundancy. Each power input source, whether direct current (dc) or alternating current (ac), is required to pass through its dedicated external 30 A 2 pole thermal magnetic circuit breaker before entering the Mark V panel. This ensures the protection and isolation of each power source.
• The panel can be powered by a combination of up to two 120/240 V ac sources and/or a 125 V dc source. This versatility allows for adaptable configurations to suit various operational needs and environments.
• Internally, each core within the panel is equipped with its own power supply board. Despite their individuality, these boards are unified by a common 125 V dc panel distribution bus. This centralized distribution system ensures consistent and reliable power delivery throughout the panel, optimizing performance and reliability across all operations.

WOC has the largest stock of Speedtronic control spares. Please contact our staff by phone or email for pricing and availability on any parts and repairs

FREQUENTLY ASKED QUESTIONS

What is DS200IMCPG1CGC?
It is an IGBT Power Supply Board developed by General Electrics.

How are these power supply boards connected?
Despite their individuality, these boards are connected through a common 125 V dc panel distribution bus. This ensures a unified power distribution system across all cores within the panel.

How does this centralized distribution system benefit the Mark V panel?
By centralizing power distribution, the panel can efficiently manage power delivery to all its components. This optimizes performance and reliability by ensuring that each core receives a stable and consistent power supply.
