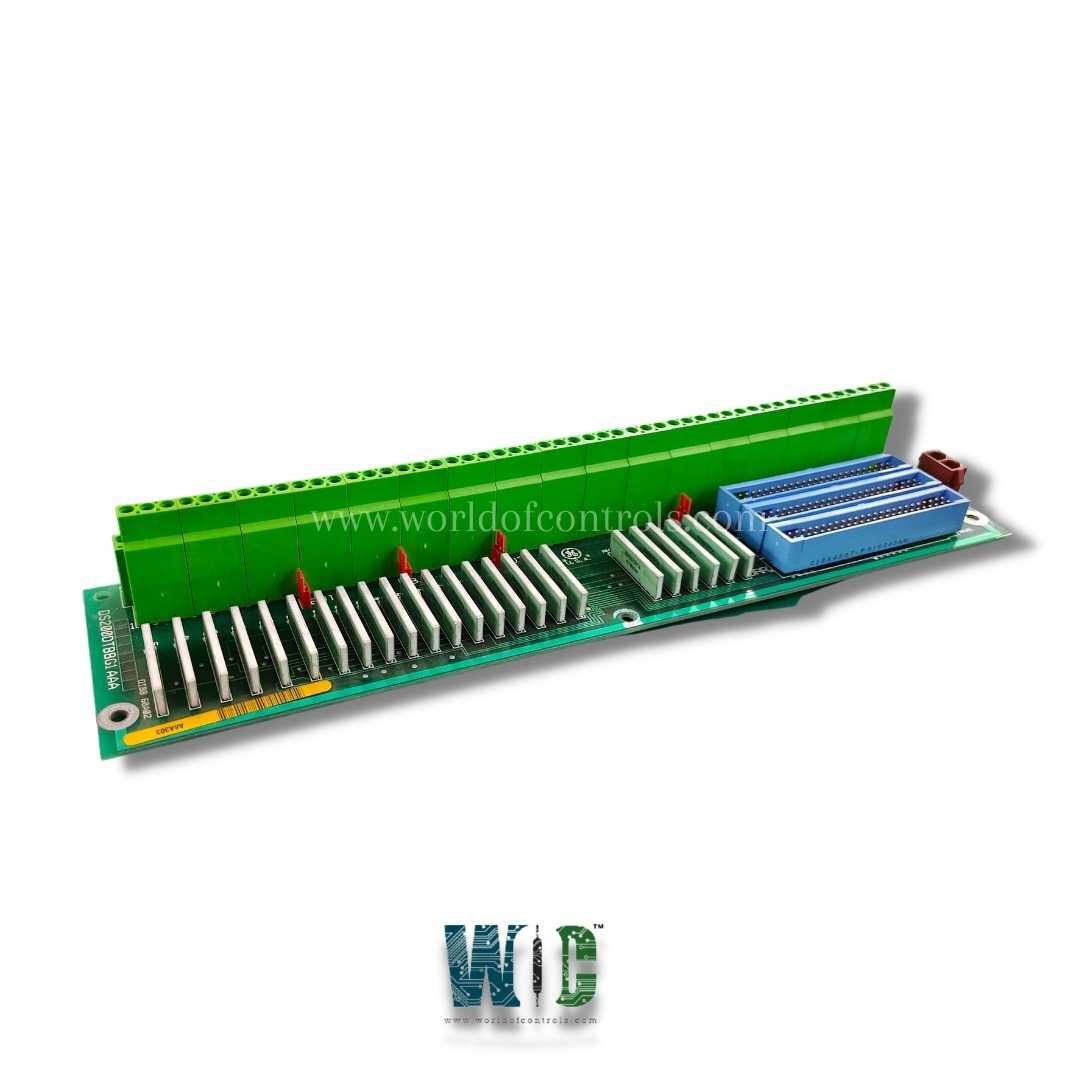

DS200DTBBG1AAA - Digital Contact Terminal Board

DS200DTBBG1AAA - Digital Contact Terminal Board DS200DTBBG1AAA - Digital Contact Terminal Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200DTBBG1AAA - Digital Contact Terminal Board is available in stock which ships the same day.

DS200DTBBG1AAA - Digital Contact Terminal Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200DTBBG1AAA - Digital Contact Terminal Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: DS200DTBBG1AAA
Manufacturer: General Electric
Series: Mark V
Product Type: Digital Contact Terminal Board

The GE Terminal Digital Connector Board DS200DTBBG1AAA has two terminal blocks with terminals for 95 signal wires, as well as three 50-pin connectors, bayonet connectors, and five jumpers. JFF, JFG, and JFH are the IDs for the 40-pin connectors. Because this board has three 40-pin connectors, it's a good idea to keep track of which 40-pin ribbon cable is connected to which connector. If the ribbon cables are connected to the wrong connectors, you will need to shut down the drive, reconnect the ribbon cables, and restart the drive, resulting in an outage and unnecessary downtime.

  • To avoid delays in operations, draw a diagram or label connectors. This board can connect up to 110 signal wires to the terminal blocks, but this will be difficult to manage without documentation of the signal wire connections.
  • With separate terminals numbered in sequence on each terminal block, one terminal block is assigned TB1 as the ID and the other terminal block is assigned TB2.
  • The terminal block ID and the number assigned to the terminal can be used to identify a specific terminal. TB1 90 and TB2 48, for example. Terminal 90 on Terminal Block 1 is TB1 90. Terminal 48 on Terminal Block 2 is TB2 48.
  • WOC has the largest stock of Speedtronic Mark V control spares and we can repair your faulty DS200DTBBG1AAA with a warranty.
  • WORLD OF CONTROLS can also supply UNUSED and REBUILT DS200DTBBG1AAA backed up with a warranty. Our team of experts are available round the clock to support your DS200DTBBG1AAA needs.
  • Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS



What is the input voltage on the DS200DTBBG1AAA?

DS200DTBBG1AAA is a terminal digital connector board in Mark V series.

How to obtain DS200DTBBG1AAA?

World of Controls supply UNUSED and REBUILT DS200DTBBG1AAA backed up with a warranty.
