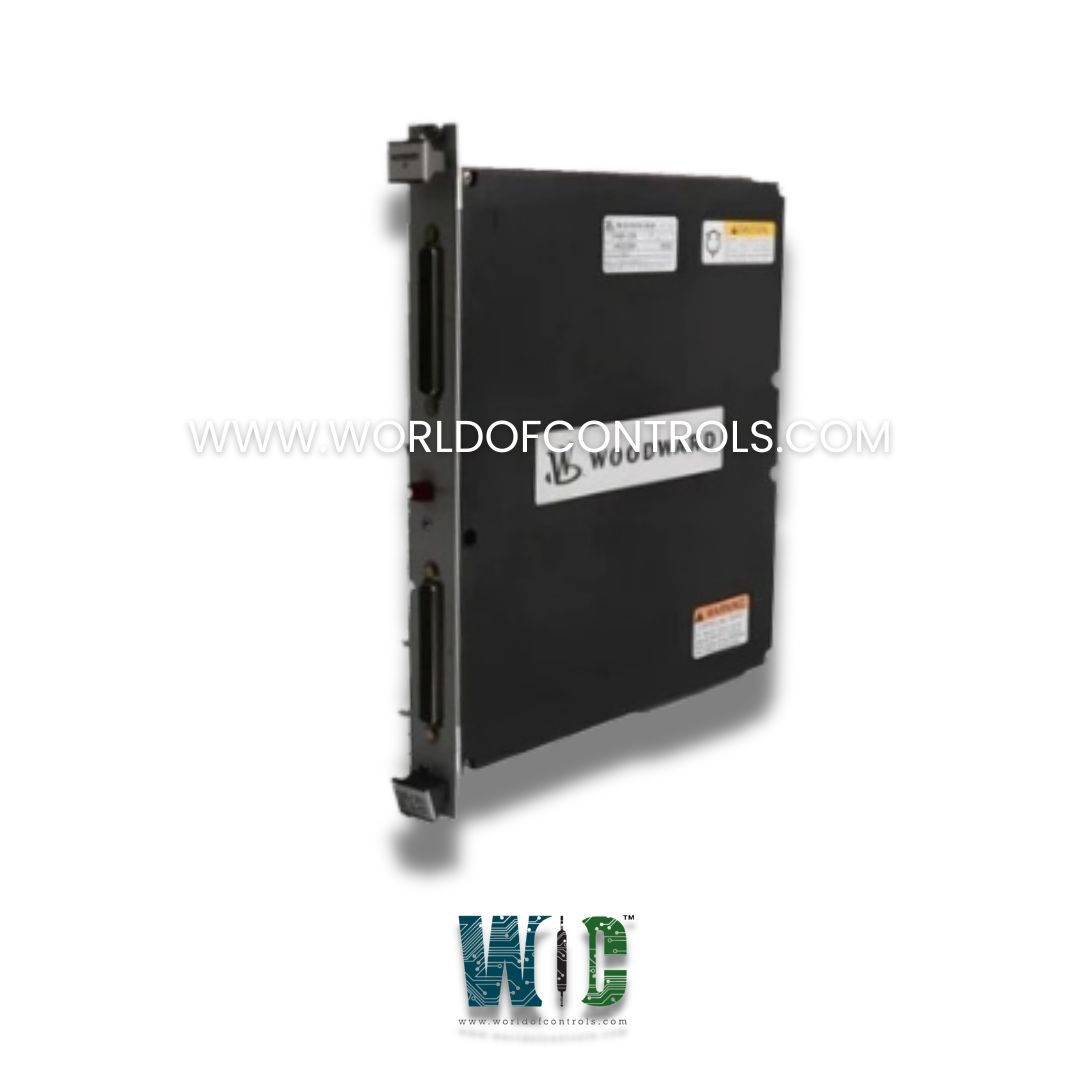

5463-887 - Thermocouple Input Module

SPECIFICATIONS

Part Number: 5463-887
Manufacturer: Woodward
Function: Thermocouple Input Module
Product type: Module
Operating Temperature Range: -40°C to +70°C
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

5463-887 is a Thermocouple Input Module developed by Woodward. It serves as the interface between thermocouples, which are temperature sensors, and the control system or programmable logic controller (PLC). The module converts the small voltage generated by the thermocouple into a readable signal that the PLC or other control systems can process. Thermocouples work on the principle of the Seebeck effect, where a temperature difference between two different metals generates a voltage. The thermocouple input module amplifies and conditions this voltage signal, often compensating for the cold-junction effect (the temperature difference at the connection point of the thermocouple wires). This ensures accurate temperature readings across a wide range of temperatures and environments.

Features

• The module supports a wide range of thermocouple types, ensuring flexibility for diverse applications. This compatibility allows integration with existing systems in industries such as power generation, manufacturing, and process control.
• The module provides precise temperature measurements, critical for applications requiring strict temperature control. Its design minimizes noise interference and ensures stable readings.
• Each input channel is electrically isolated to ensure safety and prevent interference between channels, which is particularly important in environments with varying electrical conditions.
• The module is built to withstand demanding industrial conditions. It operates effectively in environments with extreme temperatures, vibrations, and electrical noise.
• Integrated diagnostics continuously monitor the module's performance, enabling rapid detection of faults or anomalies to maintain system reliability.
• The module’s compact form factor makes it easy to install and integrate into existing systems without requiring significant space or modifications.

Advantages

• Versatility: Supports a wide range of thermocouple types for diverse applications.
• Enhanced Safety: Isolated channels protect against electrical interference and ensure system integrity.
• Reliable Performance: Rugged design ensures consistent operation in harsh environments.
• Compact and Efficient: Saves space and integrates easily with existing systems.
• Proactive Maintenance: Built-in diagnostics help identify issues before they impact operations.

World of Controls has the most comprehensive selection of GE and Woodward components. Our professionals are available to help you with your requirements at any time. If you require any additional information, please contact WOC immediately.

Frequently Asked Questions

What is 5463-887?
It is a Thermocouple Input Module developed by Woodward.

What types of thermocouples does the module support?
The module supports multiple thermocouple types, including Type J, K, T, E, and others, offering flexibility for a wide range of industrial temperature monitoring needs.

How many channels does the module have?
The module features multiple input channels, allowing simultaneous monitoring of various temperature points in a system.

Are the input channels isolated?
Yes, each input channel is electrically isolated. This enhances safety, minimizes interference, and ensures accurate temperature readings.
