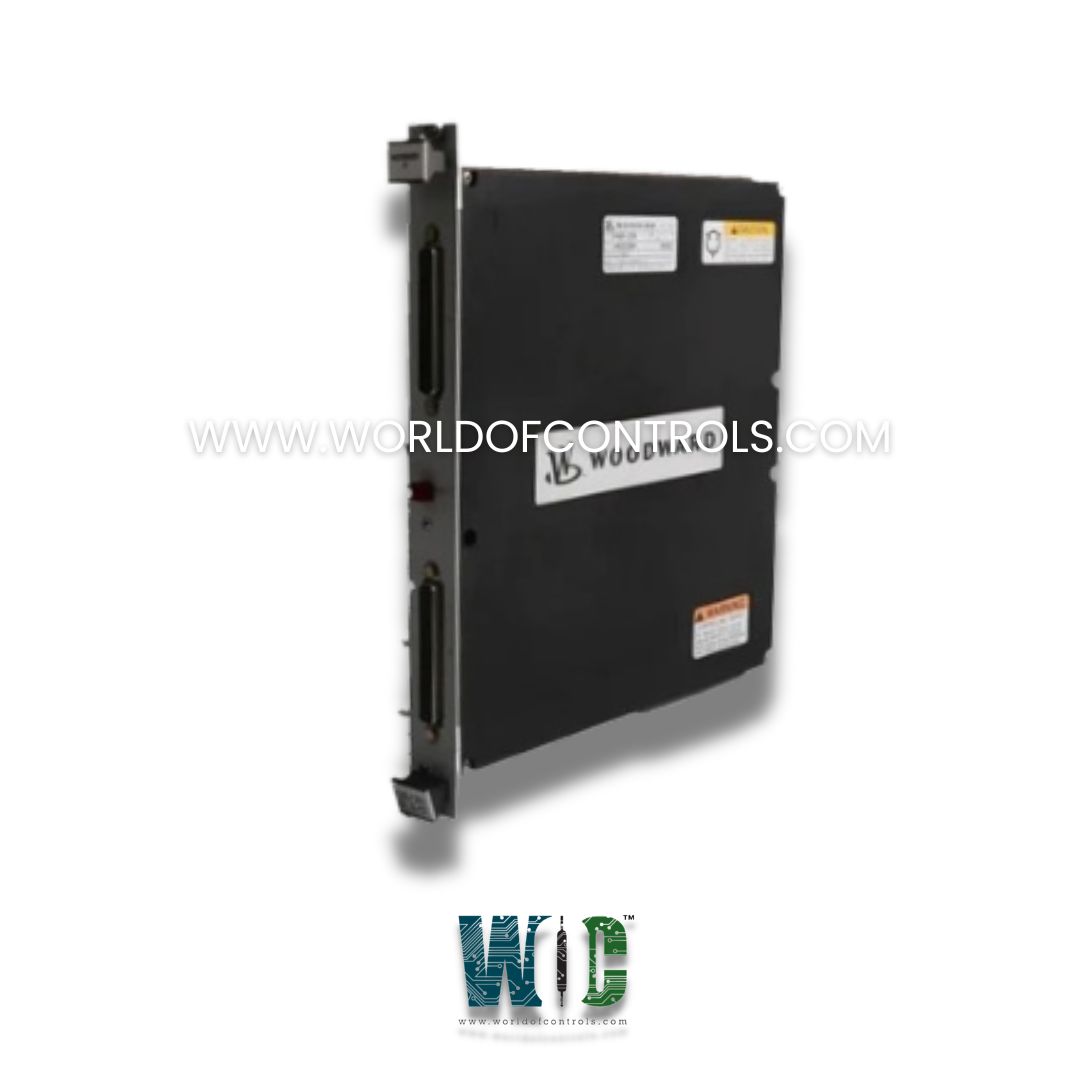

5463-785 - Isolated Analog Input Module

5463-785 - Isolated Analog Input Module 5463-785 - Isolated Analog Input Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

5463-785 - Isolated Analog Input Module is available in stock which ships the same day.

5463-785 - Isolated Analog Input Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 5463-785 - Isolated Analog Input Module, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: 5463-785
Manufacturer: Woodward
Function: Isolated Analog Input Module
Product type: Module
Channel Isolation: Yes
Power Supply: 24 VDC
Current Consumption: 0.6 A (maximum)
Operating Temperature Range: -40°C to +70°C
Dimensions: 19.1 cm x 2.5 cm x 23.5 cm
Weight: 0.3 kg
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

5463-785 is an Isolated Analog Input Module developed by Woodward. With its ability to handle analog input signals and provide electrical isolation, this module ensures accurate data acquisition, even in demanding environments. Its robust design and compact form factor suit industries requiring real-time monitoring and control of analog signals.

Features

  • The module provides electrical isolation between channels, ensuring safety and minimizing noise interference. This isolation enhances the reliability of the signal transmission, even in electrically noisy industrial environments.
  • Designed to work with the standard 4-20 mA input signal, the module supports a wide range of industrial sensors and transmitters, enabling seamless integration into existing systems.
  • The module is engineered to deliver precise and reliable measurements, which are crucial for critical processes in industries such as manufacturing, energy, and transportation.
  • With an operational range of -40oC to +70oC, the module is built to perform reliably in extreme temperatures, making it ideal for use in harsh and diverse environments.
  • The compact dimensions of the module (19.1 cm x 2.5 cm x 23.5 cm) ensure easy installation and integration into control systems with space constraints.
  • The module's durable design withstands challenging industrial conditions, ensuring a long service life and consistent performance.

Advantages

  • Enhanced Safety: Channel isolation protects against electrical faults and ensures user safety.
  • Improved Accuracy: Minimizes noise interference for precise signal acquisition.
  • Broad Compatibility: Supports a wide array of 4-20 mA sensors and transmitters.
  • Durability: Rugged construction ensures consistent performance in tough conditions.
  • Ease of Integration: Compact size and standard connections simplify installation in new or existing systems.

World of Controls has the most comprehensive selection of GE and Woodward components. Our professionals are available to help you with your requirements at any time. If you require any additional information, please contact WOC immediately.

Frequently Asked Questions

What is 5463-785?
It is an Isolated Analog Input Module developed by Woodward.

How many input channels does the module have?
The module is equipped with 8 isolated analog input channels, ensuring accurate and noise-free data acquisition.

What is the purpose of channel isolation?
Channel isolation protects against electrical faults, minimizes noise interference, and ensures accurate signal transmission, even in electrically noisy environments.

What is the power supply requirement for the module?
The module operates on a 24 VDC power supply, with a maximum current consumption of 0.6 A.

Is the module compatible with SCADA systems?
Yes, the module is designed to integrate seamlessly with SCADA systems, ensuring accurate and reliable data acquisition for supervisory control and monitoring.

How does the module ensure safety during operation?
The module features channel isolation, which protects against electrical faults and minimizes noise interference, enhancing both safety and accuracy.
