330130-080-00-05 - Extension Cable

Specifications

Part Number: 330130-080-00-05
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: Extension Cable
Series: Bentley Nevada 3300
Cable Length: 8 m
Operating Temperature: -51 oC to +177 oC
Availability: In Stock

Functional Description

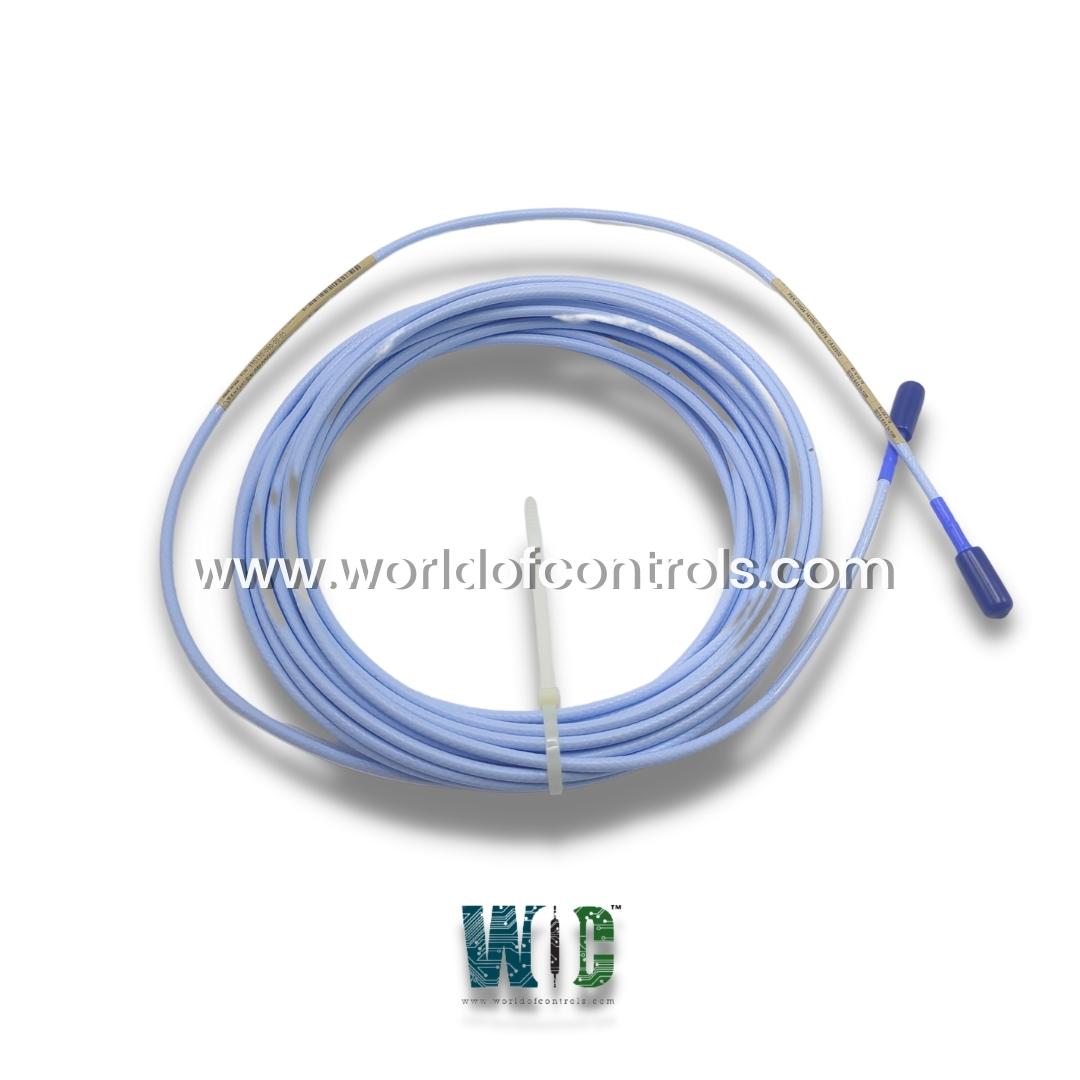

330130-080-00-05 is an Extension Cable developed by Bently Nevada. It is a 3300 XL Standard Extension Cable and a part of the Bently Nevada 3300 series. The component functions as an extension cable under Bently Nevada 3300 Proximity Transducer System. The non-XL 3300 5 mm and 8 mm components can be physically and electronically interchanged with 3300 XL 8 mm components. Even though the 3300 XL Proximitor Sensor's packaging is different from that of its predecessor, its design, when coupled with the 4-hole mounting base, conforms to the same mounting space standards.

Product Compatibility and Interchangeability

• It is fully compatible with both XL and non-XL 3300 Series transducer system components, including 5 mm and 8 mm probes.
• Despite having updated packaging, the 3300 XL Proximitor Sensor maintains the same mounting footprint as older models when used with the 4-hole mounting base, ensuring backward compatibility and ease of installation in existing systems.

Features

• Optimized for Fluid-Film Bearing Machines: Designed for demanding industrial equipment where precision monitoring is essential.
• Excellent for Speed Measurements and Compression Systems: Offers high reliability in critical speed and position monitoring tasks.
• Extended Temperature Applications: Suitable for environments ranging from extreme cold to high heat.
• Full System Interchangeability: Seamless integration with legacy systems without the need for reconfiguration.
• Backward Compatibility: Supports continued use of existing 3300 Series hardware, reducing upgrade costs.

Application Advisory

The 3300 Proximity Transducer is intended to measure position or vibration at frequencies ranging from 0 to 6.5 kHz. This system's typical applications include radial vibration and position, axial position, and Keyphasorâ measurements.

Application Alert

Although the Proximitorâ sensor's terminals and connector are protected against electrostatic discharge, take reasonable precautions to avoid electrostatic discharge during handling.

Routing and Field Wiring

Follow the steps below to route the extension cable.

• Check that the length of the extension cable and probe lead adds up to the length of the Proximitor sensor system.
• Mounting clips or similar devices should be used to secure the extension cable to supporting surfaces.
• Insert labels under the clear Teflon sleeves and shrink the tubing to identify the probe and both ends of the extension cable.
• Connect the Proximitorâ sensor, extension cable, and probe lead using coax connectors.
• To insulate the connection between the probe lead and the extension cable, use a connector protector or self-fusing silicone tape. DO NOT use self-fusing silicone tape to insulate a machine connection.
• If the probe is in a pressure or vacuum-sensitive area of the machine, use appropriate cable seals and terminal boxes to seal the hole where the extension cable exits the machine.

World of Controls is available 24/7 to assist you with Bently Nevada needs. Contact us.

Frequently Asked Questions

What is Bently Nevada 330130-080-00-05?
It is an Extension Cable developed by Bently Nevada under 3300 series.

Which is used in this Extension Cable?
The Extension Cable Material used is 75 ohm triaxial and fluoroethylene propylene (FEP).

What is the Operating and Storage Temperature of the component?
Operating and Storage Temperature is -51 degrees celsius to +177 degrees celsius.

How do I obtain this Cable?
Contact WOC for Bently Nevada spare parts. We ship worldwide.
