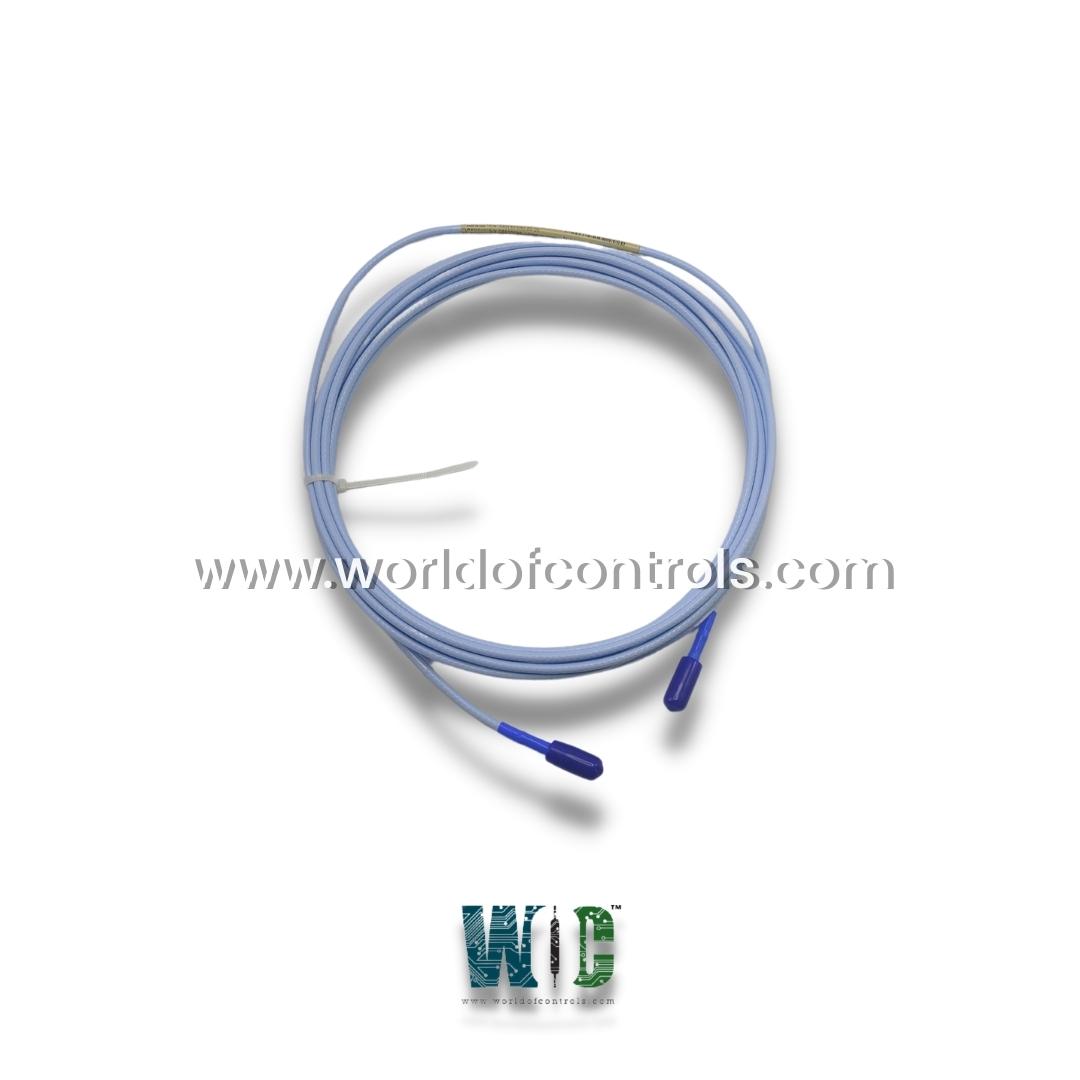

330130-040-00-00 - 3300 XL Standard Extension Cable

SPECIFICATIONS

Part Number: 330130-040-00-00
Manufacturer: Bently Nevada
Product Type: Standard Extension Cable
Availability: In Stock
Country of Origin: United States(USA)
Product Family: 3300 XL, 3300XL, 3300-XL

330130-040-00-00 is a 3300 XL Standard Extension Cable manufactured by Bently Nevada. Additionally, the 3300 XL probe and extension cable represent advancements over earlier models. The bond between the probe tip and the probe body is stronger thanks to the proprietary TipLoc molding process. For a more secure connection between the probe cable and probe tip, the probe's cable features a unique CableLoc design that offers 330 N (75 lbf) of pull strength.

330130-040-00-00 Functional Description

• 3300 XL 8 mm probes and extension cables with a FluidLoc cable option stop oil and other liquids from leaking out of the machine. ClickLoc connectors with corrosion-resistant gold plating are used on the 3300 XL probe, extension cable, and Proximity sensor. These connections can be finger-tightened to a certain degree (they will "click" when tight) and are locked in place by a specifically designed locking mechanism. For installation or removal, these connectors don't need any specialized equipment.
• The 3300 XL 8mm Proximity Transducer System from GE / Bently Nevada includes one 8mm probe, one extension cable, and one Proximitor Sensor. The system measures both static (position) and dynamic (vibration) measurements and gives an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface.
• Vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements, are the system's principal applications. Standard 3300 XL 8 mm 5-meter system also completely complies with the API 670 Standard (4th Edition) in terms of mechanical configuration, linear range, accuracy, and temperature stability. This level of performance is provided by all 3300 XL 8 mm proximity transducer systems.

Features

1. Probe tip material made of polyphenylene sulfide
2. Available in imperial or metric measurements
3. SST probe casing material made of AISI 303 or 304
4. Insulated probe cable made of fluoroethylene propylene (FEP).

Product Attributes

• Compression systems, speed measurements, and fluid-film bearing machines are all good candidates.
• Applications with a Wide Temperature Range
• Units and cabling are completely interchangeable.
• Other Non-3300 XL Series Transducer System Components Are Backwards Compatible

Product Characteristics

• Operating temperature: -51 to 177°C, or -60 to 350°F
• Cable length: 4.0 metres (13.1 feet)
• Weight: 0.14 Kg

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.



FREQUENTLY ASKED QUESTIONS

What is Bently Nevada 330130-040-00-00?

330130-040-00-00 is a 3300 XL Standard Extension Cable used in Proximity Transducer System.

Are the Products Genuine OEM Units?

These items have been certified by WOC Quality Control to be genuine OEM Units obtained through OEM or independent third-party channels.

Does WOC sell to international Non-USA customers?

Yes, WOC offers services to clients around the globe. In fact, a large portion of our company is international, and we have experience shipping to locations all over the world.
