330130-045-01-00 - 3300 XL Standard Extension Cable

330130-045-01-00 - 3300 XL Standard Extension Cable 330130-045-01-00 - 3300 XL Standard Extension Cable

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

330130-045-01-00 - 3300 XL Standard Extension Cable is available in stock which ships the same day.

330130-045-01-00 - 3300 XL Standard Extension Cable comes in UNUSED as well as REBUILT condition.

To avail our best deals for 330130-045-01-00 - 3300 XL Standard Extension Cable, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: 330130-045-01-00
Manufacturer: Bently Nevada
Product Type: 3300 XL 8 mm Extension Cable
Availability: In Stock
Country of Origin: USA
Product Family: 3300 XL, 3300XL, 3300-XL

330130-045-01-00 is a 3300 XL Standard Extension Cable manufactured by Bently Nevada and used in proximity transducer system. Proximitor® Sensors are standard calibrated to AISI 4140 steel from the factory. On-demand calibration to additional target materials is offered. Bently Nevada Applications can be consulted. Keep track of the considerations of using eddy current proximity probes for Overspeed protection applications while assessing this transducer system for tachometer or Overspeed measurements.

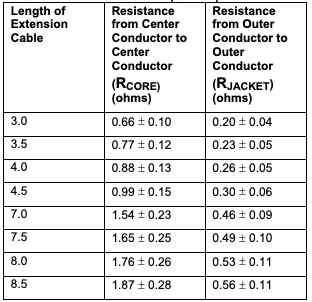

Extension Cable Data 330130-045-01-0



330130-045-01-00 Features

  • The non-XL 3300 5 and 8 mm components can be physically and electronically interchanged with the 3300 XL 8 mm components. Although the 3300 XL Proximitor® Sensor's packaging is different from that of its predecessor, it is still made to fit in the same 4-hole mounting pattern when coupled with the same mounting base's 4-hole mounting pattern and will conform to the same mounting space requirements (when minimum permissible cable bend radius is observed).
  •  System performance is restricted to the non-XL 3300 5 and 8 mm Transducer System standards when XL and non-XL 3300 series 5 and 8 mm system components are combined.
  • The 3300-series 5 mm probe (see Specifications and Ordering Information p/n 141605-01) has a smaller physical footprint than an 8 mm probe, but it cannot be used with reduced side view clearances or tip-to-tip spacing.
  • When the use of an 8 mm probe is prohibited by physical—not electrical—constraints, this method is used. Use the 3300 NSvTM Proximity Transducer System when narrow side view probes are needed.
  • A thicker encapsulation of the probe coil in the molded PPS plastic probe tip is offered by 8 mm probes. As a result, the probe becomes more robust.
  • The probe body's increased diameter also offers a stronger, more durable casing. For the best robustness against physical abuse, Bently Nevada advises using 8 mm probes wherever it is practical.

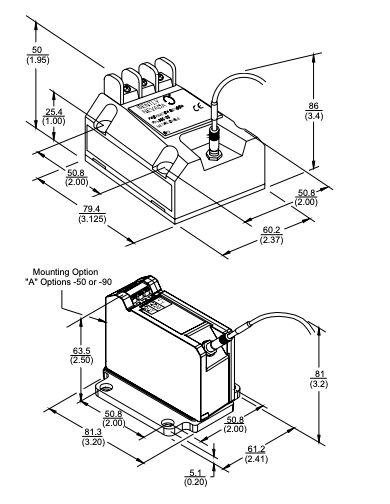

Physical mounting characteristics showing interchangeability of 3300 and 3300 XL Proximitor® Sensors when the 4-hole mounting option is used


Figure 2: Physical mounting characteristics showing interchangeability of 3300 and 3300 XL Proximitor® Sensors when the 4-hole mounting option is used

Characteristics

  • Cable length option : 040 = 4.0 metres (13.1 feet)
  • Weight : 0.034 g/m x 8.5 = 0.289Kg

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.
