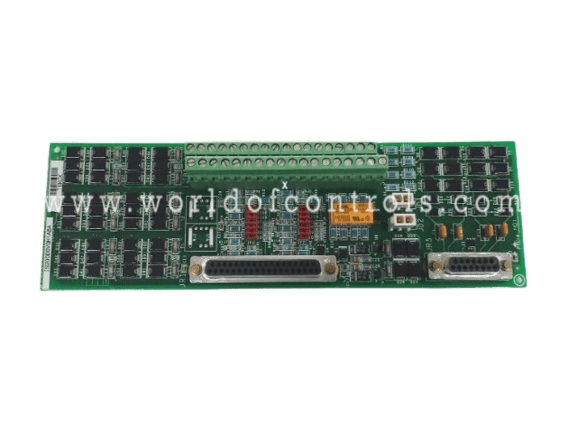

IS210DSVOH1A - Simplex Servo I/O Terminal Board

IS210DSVOH1A - Simplex Servo I/O Terminal Board IS210DSVOH1A - Simplex Servo I/O Terminal Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS210DSVOH1A - Simplex Servo I/O Terminal Board is available in stock which ships the same day.

IS210DSVOH1A - Simplex Servo I/O Terminal Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS210DSVOH1A - Simplex Servo I/O Terminal Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS:

Part No: IS210DSVOH1A
Manufacturer: General Electric
Function: Simplex Servo I/O Terminal Board
Series: Mark VI
Operating temperature: -30 to 65 C
Power Supply Voltage: 28 V dc
Board Size: 23.8 cm high x 8.6 cm
Weight: 0.45 kg
Number of inputs: 6
Number of outputs: 2
Availability: In Stock
Country of Origin: USA
Manual: GEH-6421M

FUNCTIONAL DESCRIPTION:

IS210DSVOH1A is a Simplex Servo I/O Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in the GE Speedtronic Control System. A small terminal board made for DIN-rail attachment is called the Simplex Servo Input/Output (DSVO) terminal board. This board features two servo outputs, I/O for six LVDT position sensors, and two active pulse rate inputs for flow monitoring. Jumpers are used to select servo coil currents between 10 and 120 mA. A 37-pin cable, similar to those used on the bigger TSVO board, is used to link DSVO to the VSVO processor board. In order to save cabinet space, the terminal boards can be stacked vertically on the DIN rail. If necessary, two DSVO boards may be linked to the VSVO. This board is only offered in simplex form.

The onboard features and high-frequency decoupling to the ground are identical to those on the TSVO. High-density Euro-Block type terminal blocks are permanently attached to the board using six screws for the ground connection (SCOM). In order to identify the board to the VSVO for system diagnostics, connectors JR1 and J5 connect to signals from onboard ID chips.

INSTALLATION:

After positioning the DSVO board in the plastic holder, mount it to the DIN rail. The terminal block should receive the servo I/O wires directly connected. The terminal block of the Euro-Block type is permanently installed on the terminal board and has 42 or 36 terminals (DSVOH1B, H2B) depending on the version. Twisted pair wire with a shield of #18 AWG is frequently utilized. For SCOM (ground) connection, six screws numbered 31 through 36 are provided; these screws should be used at the shortest possible distance.

CONFIGURATION:

The servo valve coil resistance, which ranges from 22 W to 1,000 W, and the desired coil current are selected on the DSVOH1B via jumpers JP1 and JP2. The coil currents and resistances are displayed in the following table; for instance, jumper 120B gives a coil current of about 120 mA.

WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

How to Check Price and Availability For IS210DSVOH1A?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.

Does WOC Provide a Warranty Certificate For their Products?

WOC provides warranty certificates depending on the Parts.
