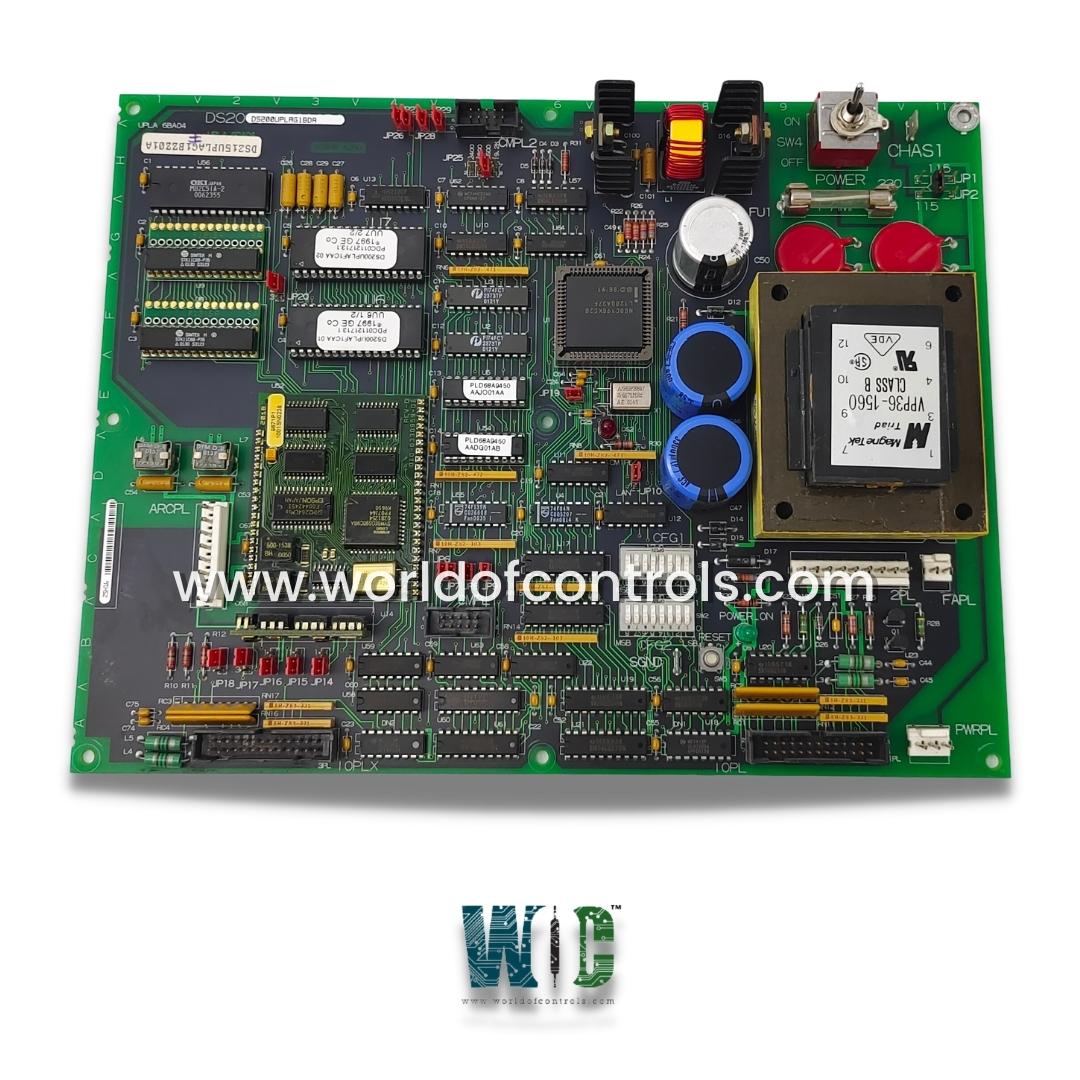

DS215UPLAG1BZZ01A - Power Supply/LAN Interface Board

DS215UPLAG1BZZ01A - Power Supply/LAN Interface Board DS215UPLAG1BZZ01A - Power Supply/LAN Interface Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS215UPLAG1BZZ01A - Power Supply/LAN Interface Board is available in stock which ships the same day.

DS215UPLAG1BZZ01A - Power Supply/LAN Interface Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS215UPLAG1BZZ01A - Power Supply/LAN Interface Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: DS215UPLAG1BZZ01A
Manufacturer: General Electric
Product Type: Power Supply/LAN Interface Board and Firmware
Series: EX2000
Availability: In Stock
Country of Origin: USA

DS215UPLAG1BZZ01A is a Power Supply/LAN Interface Board with firmware manufactured by General Electric as part of the EX2000 series used in excitation control systems. With on-board EEPROMS that update the firmware appropriately, it is an improved version of the DS200UPLAG1A.

DS215UPLAG1BZZ01A Features

There is a single reset button, 28 jumpers, and 2 banks of configuration switches on the board. Additionally, there are 2 indicator LEDs and 1 fuse on the GE Drive Systems UPLAG Board. One green Power On LED, which illuminates when power is present on the board, is found on the GE Drive Systems UPLAG Board. When the LED is not lighted, power is not present. A board problem is shown by the 1 red LED. It is best practice to initially hit the reset button on the board if an error has occurred. By pressing this button, the board's processing can be restarted without the board losing power. Restarting your computer might fix any errors that have happened.

DS215UPLAG1BZZ01A Hardware Components

The following are the major hardware components of this UPLA board:

  • 115/230 V ac, 50/60 Hz to 24 V, and a 5 V switching power supply
  • Power-on reset and 5 V Undervoltage detect
  • Microprocessor core
  • Flash (non-volatile) memory capability
  • DLAN+ interface port
  • RS-232C serial port


When the reset button is pressed during power up or whenever the 5 V logic supply voltage falls below 4.6 V, the reset is initiated.



WOC has the largest stock of GE Speedtronic and Excitation Control replacement spare parts and we can repair your faulty parts with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT backed up with a warranty of up to 24 months. Our team of experts is available round the clock to support your needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS



What is EX2000 DS215UPLAG1BZZ01A?

DS215UPLAG1BZZ01A is a Drive Systems UPLAG Board manufactured by General Electric as part of the EX2000 series used in excitation control systems.
