DS215UCIAG1AZZ05A - UC2000 Core Motherboard

DS215UCIAG1AZZ05A - UC2000 Core Motherboard DS215UCIAG1AZZ05A - UC2000 Core Motherboard

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS215UCIAG1AZZ05A - UC2000 Core Motherboard is available in stock which ships the same day.

DS215UCIAG1AZZ05A - UC2000 Core Motherboard comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS215UCIAG1AZZ05A - UC2000 Core Motherboard, contact us and we will get back to you within 24 hours.


Part Number: DS215UCIAG1AZZ05A
Manufacturer: General Electric
Series: Mark V
Product Type: UC2000 Motherboard
Number of channels: 12
Common Mode Voltage Range: +5 V dc
Maximum Lead Resistance: 15Ω
Analog output current: 0-20 mA
Operating temperature: -30 to 55 °C
Size: 8.26 cm high x 4.18 cm
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States

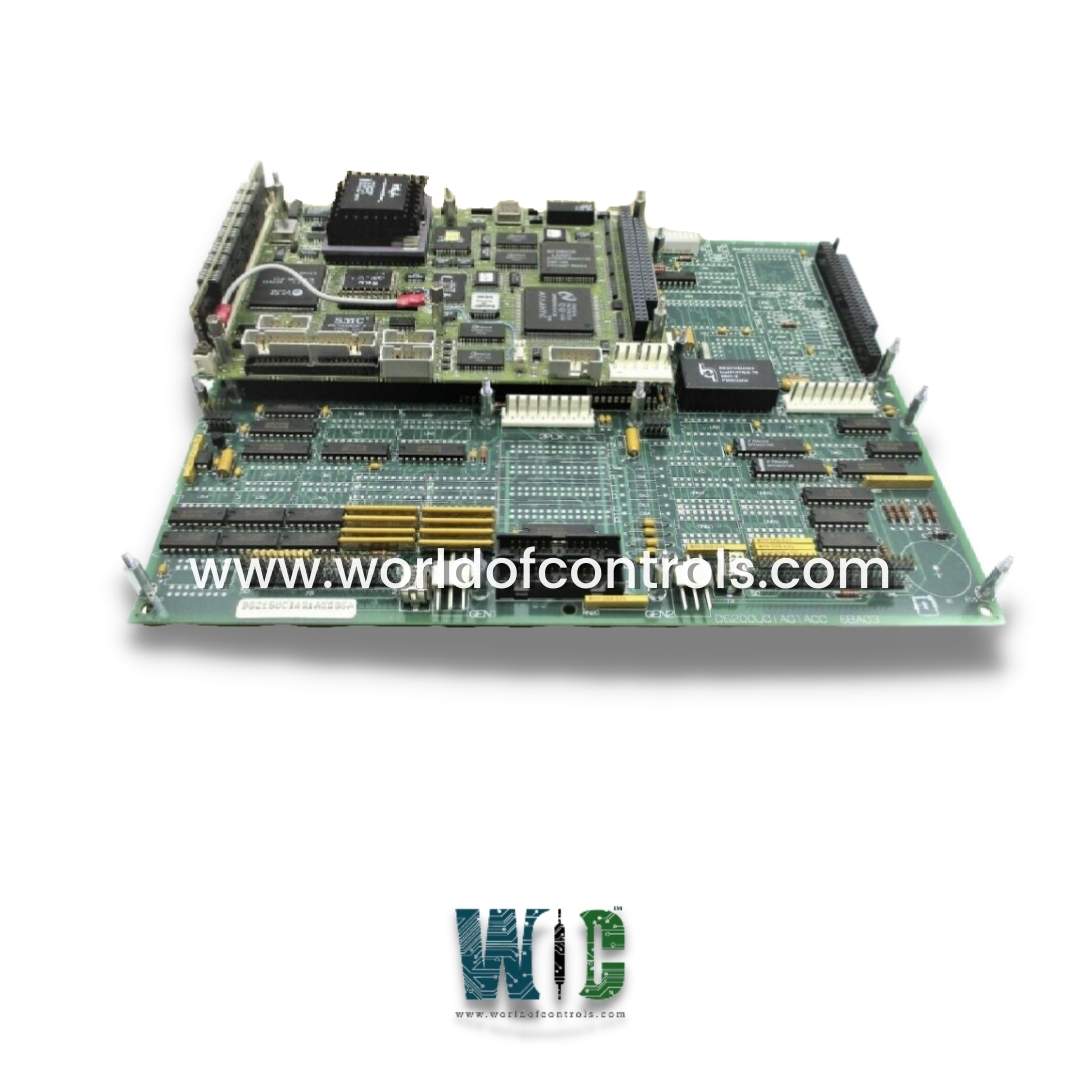

DS215UCIAG1AZZ05A is a UC2000 Core Motherboard manufactured and designed by General Electric as part of the Mark V Series used in GE Speedtronic Gas Turbine Control Systems. It features one microprocessor and several PROM modules. It also has one jumper and one connector for attaching other boards. A modular-type connector allows for the connection of a daughter card to the board. The daughter card is physically attached to the board via standoffs on the board, and the modular connector offers power and signal connections. Because the use of a daughter card requires more space in the board cabinet, it is standard practice to replace it in the same location when replacing it. The board's 10 LEDs provide a health status and signal if an error occurs.

  • When the drive is operational, the LEDs are visible, making it easy for the operator to locate the board and determine the state of the board by determining the pattern of the flashing LEDs.
  • When normal processing is taking place, the LEDs flash off and on in a clockwise direction from left to right.
  • When an error code is generated, the LEDs flash in a specific sequence to display the error code.

WOC has the largest stock of GE Speedtronic Gas Turbine Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


How to Check Price and Availability For DS215UCIAG1AZZ05A?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.

Does WOC Provide a Warranty Certificate For their Products?

WOC provides warranty certificates depending on the Parts.
