IS415UCCCH4A - Single Slot Controller Board

IS415UCCCH4A - Single Slot Controller Board IS415UCCCH4A - Single Slot Controller Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS415UCCCH4A - Single Slot Controller Board is available in stock which ships the same day.

IS415UCCCH4A - Single Slot Controller Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS415UCCCH4A - Single Slot Controller Board, contact us and we will get back to you within 24 hours.


Part Number: IS415UCCCH4A
Manufacturer: General Electric
Series: Mark VIe
Memory: 256 MB DDR
Operating System: QNX Neutrino
Programming: Boolean
Power Requirements: +5 V dc
Microprocessor: Intel Pentium M processor 1.6 GHz
Operating Temperature: 0 to +50°C (32 to +122 °F)
Product Type: Controller Board
Repair: 3-5 Days
Product of Origin: United States
Availability: In Stock
Manual: GEH-6721


IS415UCCCH4A is a Single Slot Controller Board manufactured and designed by General Electric as part of the Mark VIe Series used in Distributed Control Systems. The application code is run by a family of single-board, 6U high, CompactPCI (CPCI) computers called UCCC controllers. Through onboard I/O network interfaces, the controller connects to the I/O packs and mounts inside a CPCI enclosure. QNX Neutrino, a real-time, multitasking OS created for industrial applications requiring high speed and high reliability, serves as the controller operating system (OS). The I/O networks are private, dedicated Ethernet systems that solely support the controllers and I/O packs. The following links to the operator, engineering, and I/O interfaces are provided by five communication ports:

  • For communication with HMIs and other control devices, the Unit Data Highway (UDH) requires an Ethernet connection.
  • R, S, and T I/O network Ethernet connection
  • Setting up with an RS-232C connection through the COM1 port


The controller module includes a controller and a four-slot CPCI rack with one or two power supplies, at the very least. The leftmost slot must contain the principal controller (slot 1). A single rack can hold a second, third, and fourth controller. To increase the battery's lifespan while being stored, the CMOS battery is unplugged via a processor board jumper. The battery jumper needs to be reinstalled before inserting the board. For the position of the jumpers, consult the design for the relevant UCCx module. The internal date and real-time clock, as well as the CMOS RAM settings, are all powered by the battery. Since the CMOS settings are set to their appropriate default values by the BIOS, there is no need to change them. The real-time clock alone needs to be reset. Using the ToolboxST program or the system NTP server, the initial time and date can be set.

If the board is the system board (slot 1 board) and there are other boards in the rack, the other boards will stop functioning if the system board is ejected. When replacing any board in the rack, it is advised that power be turned off. You can eliminate rack power using one of the following techniques.

  • There is a switch that can be used to turn off the power supply outputs in a single power supply unit.
  • To turn off the electricity in a dual power supply device, both power supplies can be removed without risk.
  • Unplug the Mate-N-Lok connectors on the bottom of the CPCI enclosure that is used for bulk power input.

The UCCC module contains injectors/ejectors at the bottom and top, unlike Mark VI VME boards which only offered ejectors. The top ejector should be slanted upward, and the bottom ejector should be tilted downward, before sliding the board into the rack. The injectors should be used to fully insert the board once the connector on the rear of the board has made contact with the backplane connector. To accomplish this, pull up on the bottom ejector while pressing down on the top injector. Don't forget to tighten the top and bottom injector/ejector screws to complete the installation. This offers a chassis ground connection and mechanical security.


The controller has software tailored to its use, such as balance-of-plant (BOP) products, land-marine aero derivatives (LM), steam, and gas, among others. It can move blocks or rungs. The I/O packs and controllers' clocks are synchronized to within 100 microseconds using the IEEE 1588 standard via the R, S, and T IONets. Over the R, S, and T IONets, external data is sent to and received from the controller's control system database.


1. Handle the inputs and outputs for the I/O packets.

2. Values for the internal status and initialization data from the chosen controller

3. Information on the synchronization and status of both controllers.


1. Handle the inputs and outputs for the I/O packets.

2. Internal voting state variables, as well as synchronization data from each of the three controllers.

3. Data from the chosen controller regarding initialization.

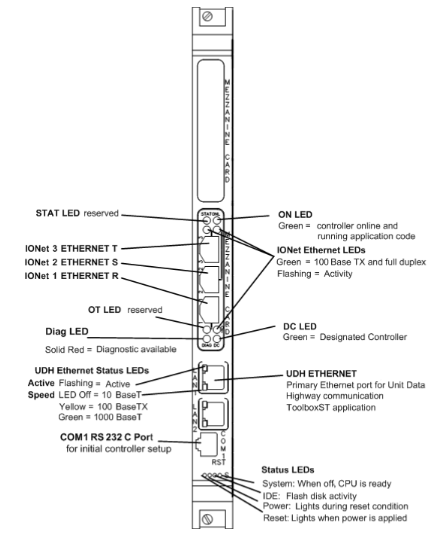

UCCC Front View

Fig 1: UCCC Front View

A 1.6 GHz Pentium M processor is found on the single-slot CPCI controller board known as the IS415UCCCH4A. Connectivity to the UDH and an optional Ethernet network is provided by two 10/100/1000BaseTX Ethernet connectors. The board is a module assembly that combines the controller board, 256 MB of DRAM, and 128 MB of flash memory.

WOC has the largest stock of GE Speedtronic Mark VIe OEM Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


What is GE Mark VIe IS415UCCCH4A?

IS415UCCCH4A is a Single Slot Controller Board developed by General Electric and used in distributed control systems.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.

How to Check Price and Availability For Controller Board?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
