World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

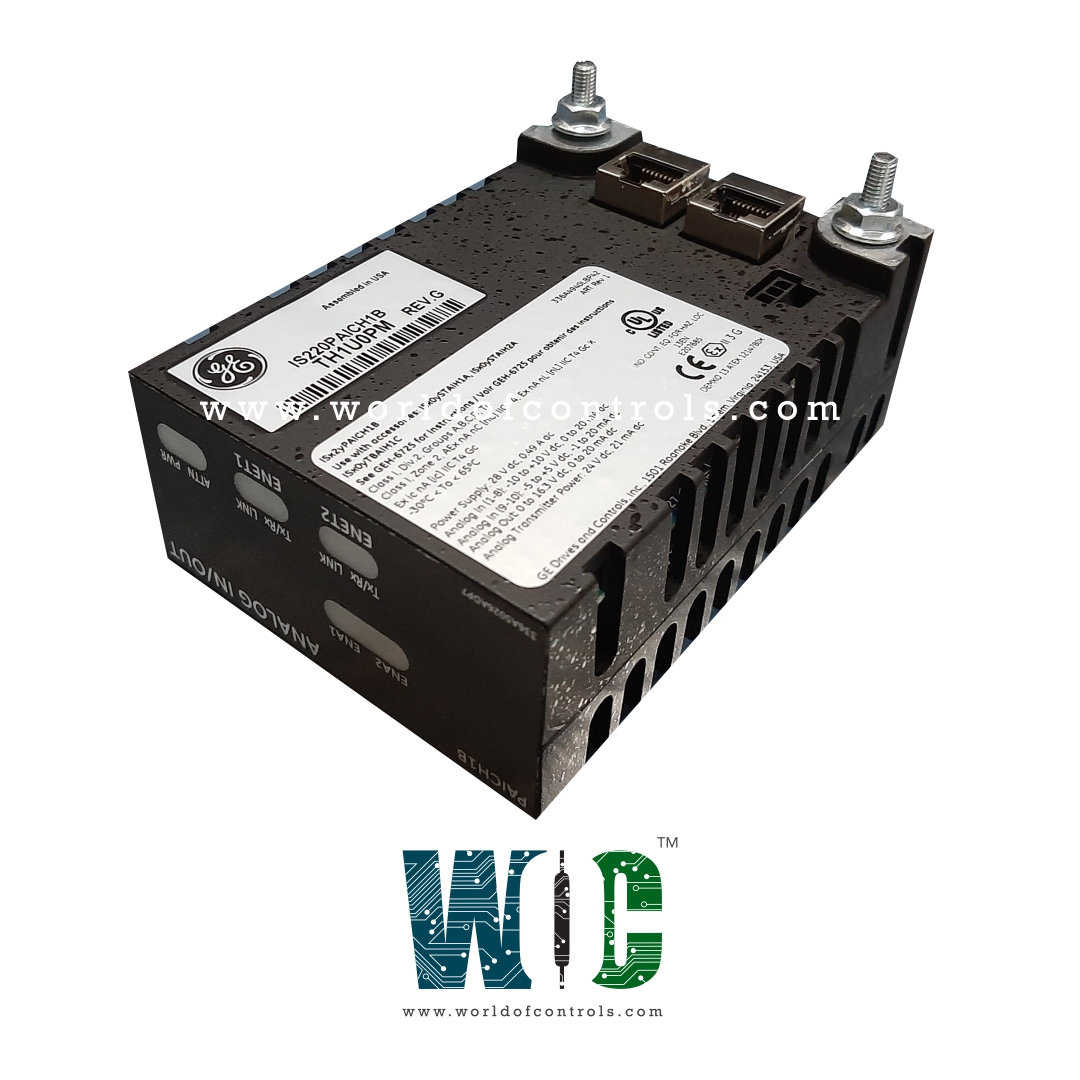

IS220PAICH1B, REV B - Analog Input/Output Module is available in stock which ships the same day.
IS220PAICH1B, REV B - Analog Input/Output Module comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS220PAICH1B, REV B - Analog Input/Output Module, contact us and we will get back to you within 24 hours.
TECHNICAL SPECIFICATIONS:
Part Number: IS220PAICH1B, REV B
Manufacturer: General Electric (GE)
Series: Mark VIe
Functional Acronym: PAIC
Product Type: Analog Input/Output Module / I/O Pack
Total Analog Inputs: 10 channels
Number of Channels: 12
Input Span: 1-5 V dc
Input Ranges (Channels 1-8): ±5 V DC, ±10 V DC, or 0-20 mA current loop
Input Ranges (Channels 9-10): ±1 mA or 0-20 mA current loop
Total Analog Outputs: 2 channels (0-20 mA)
Input Converter Resolution: 16-bit Analog-to-Digital Converter (ADC)
Output Converter Resolution: 14-bit Digital-to-Analog Converter (DAC)
Processor Architecture: 667 MHz PowerQUICC II Pro Freescale processor
Operating System: QNX Neutrino Real-Time OS
Scan Time: 5 milliseconds (200 Hz normal scan)
Power Supply Requirement: Minimum 22.8 V DC (Nominal 24-28 V DC)
Power Consumption: 5.3 W typical, 6.2 W maximum
Network Interfaces: Two 10/100BaseTX RJ45 Ethernet ports (IONet)
Output Isolation / Relay: Onboard mechanical suicide relays per channel
Substrate Protection: High-grade industrial conformal coating
Terminal Board Compatibility: IS200TBAIH1C, IS200TAIH1A, IS200TAIH2A
Ambient Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
Repair / Evaluation Lead Time: 3-5 Business Days
Availability: In Stock
Country of Origin: United States (USA)
Manual Reference: GEH-6721_VOL_II V
The IS220PAICH1B, REV B is an Analog Input/Output (PAIC) Pack designed and manufactured by General Electric for the Distributed Mark VIe turbine control systems. The Analog I/O pack (PAIC) provides the electrical interface between one or two I/O Ethernet networks and an analog input terminal board. The PAICH1B, REV B contains a BPPX processor board and an acquisition board specific to the analog input function. The I/O pack is capable of handling up to 10 analog inputs, the first eight of which can be configured as +5 V or ±10 V inputs, or 4-20 mA current loop inputs. The last two inputs may be configured as ±1 mA or 4-20 mA current inputs. The load terminal resistors for current loop inputs are located on the terminal board, and voltage is sensed across these resistors by the PAIC. The PAICHI also includes support for two 0-20 mA current loop outputs. The PAICH2 includes extra hardware to support 0-200 mA current on the first output. Input to the I/O pack is through dual RJ-45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
COMPATIBILITY:
The PAICH1B, REV B I/O pack includes one of the following compatible BPPx processor boards. The PAICHIA and H2A contain a BPPB processor board. The PAICHIB and H2B contain a functionally compatible BPPC that is supported in the ControlST* software suite V04.03 and later. PAICH2A and H2B also include extra hardware to support 0-200 mA current on the first output. The PAIC is compatible with the analog input terminal board (TBAIHIC) and the STAI board, but not the DIN rail-mounted DTAI board. The PAIC is only compatible with the HIC version of TBAI and will report a board compatibility problem with any of the earlier revisions. No physical damage will result if a PAIC is powered up on an older board in error.
INSTALLATION:
ANALOG INPUT HARDWARE:
Inputs 1-8 can be individually configured as ±5 V, ±10 V, or 4-20 mA scale signals, depending on the input configuration. Inputs 9-10 can only be configured for +1 mA or 4-20 mA. The terminal board provides a 250 2 burden resistor when configured for current inputs, yielding a 5 V signal at 20 mA. These analog input signals are first passed through a passive, low-pass filter network with a pole at 75.15 Hz. Voltage signal feedback from the analog output circuits and calibration voltages are also sensed by the PAIC analog input section.
ANALOG OUTPUT HARDWARE:
The PAIC includes two 0-20 mA analog outputs capable of 18 V compliance, running simplex or TMR. A 14-bit DAC commands a current reference to the current regulator loop in the PAIC that senses current both in the PAIC pack and on the terminal board. In TMR mode, the three current regulators in each PAIC share the commanded current loads among themselves. Analog output status feedback for each output includes.
WHY PARTNER WITH WORLD OF CONTROLS
World of Controls is a globally recognized provider of high-quality, warranty-backed OEM replacement parts and industrial automation solutions, specializing in unused surplus and professionally rebuilt components for critical turbine control systems, including General Electric Mark VI and Mark VIe platforms. Each component undergoes strict inspection, testing, and verification in an advanced electronics laboratory to ensure compliance with original equipment standards, reliable performance, and long-term operational efficiency. Supported by extensive technical expertise, the company delivers complete lifecycle solutions, including 24/7 technical assistance, expert troubleshooting, component repair, refurbishment services, and rapid worldwide shipping. By combining superior quality, engineering excellence, and responsive support, we help power generation and industrial organizations minimize downtime, optimize system performance, and maintain reliable operations across critical automation environments.
What is the IS220PAICH1B, REV B?
It is a General Electric Mark VIe Analog Input/Output (PAIC) I/O Pack designed to provide analog signal processing and communication between turbine control systems and analog input terminal boards. It supports multiple voltage and current input configurations along with analog current outputs for industrial control applications.
What are the applications of the Analog Input/Output Module?
It is primarily used in GE Mark VIe turbine control systems for monitoring and controlling analog field signals in power generation and industrial automation environments. It is commonly installed in gas turbines, steam turbines, and other critical control applications.
How many analog inputs and outputs does the Analog Input/Output Module?
The module supports up to 10 analog input channels and 2 analog output channels. The input channels can be configured for different voltage and current signal ranges, including ±5 V DC, ±10 V DC, and 0-20 mA current loops.
What terminal boards are compatible with the module?
The module is compatible with GE Mark VIe analog terminal boards, including IS200TBAIH1C, IS200TAIH1A, and IS200TAIH2A configurations. Proper terminal board compatibility should be verified before installation.
What processor does the Analog Input/Output Module have?
The module uses a 667 MHz PowerQUICC II Pro Freescale processor and operates on the QNX Neutrino Real-Time Operating System, providing high-speed processing and reliable real-time control performance.
How can I request a quote?
Customers can request a quote by providing their required quantity and application details. Technical support is available to help identify the correct replacement solution.
Why choose this module from World of Controls?
The Module is supplied by World of Controls and is supported by expert technical knowledge, rigorous testing procedures, warranty coverage, and global availability. This ensures customers receive reliable replacement solutions that help reduce downtime and maintain efficient turbine control operations.
