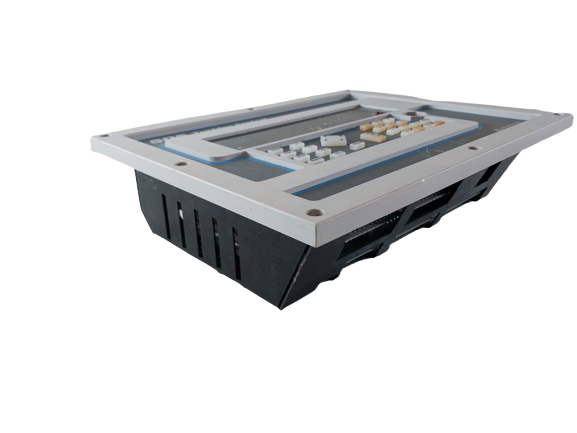

9907-164 - Digital Microprocessor Controller Module

9907-164 - Digital Microprocessor Controller Module 9907-164 - Digital Microprocessor Controller Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

9907-164 - Digital Microprocessor Controller Module is available in stock which ships the same day.

9907-164 - Digital Microprocessor Controller Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 9907-164 - Digital Microprocessor Controller Module, contact us and we will get back to you within 24 hours.


Part Number: 9907-164
Manufacturer: Woodward
Dimensions: 14W x 11H x 4D
Display Type: 2 lines x 24 characters
Availability: In Stock
Country of Origin: United States
Humidity Standards: 20 and 55 °C at 95% for 48hrs
Input Voltage: +24 Vdc at 1 A
Keypad/Display: 30 Multi-function Keypad
Operating Temperature: –4 to +140 F
Weight: 9.11 lbs


9907-164 is a Digital Microprocessor Controller Module manufactured and designed by Woodward. 505 Digital microprocessor-based Controllers for Steam Turbines with Single or Split-Range Actuators. It is an electronic device that receives inputs, processes them using an embedded microprocessor, and produces outputs to control a system or process. Digital controllers are widely used in industrial control systems, such as in manufacturing, chemical processing, and power generation. The digital controller typically includes several components, including a microprocessor, memory, input/output interfaces, and software. The microprocessor is responsible for executing software instructions to control the system or process, while memory stores the software program and data. The input/output interfaces allow the controller to receive and transmit signals to the system being controlled.

A digital microprocessor controller module, also known as a digital controller module or simply a controller module, is an electronic device that utilizes a microprocessor to control and monitor various functions and processes in a system. It acts as the central brain or control unit, receiving input signals, processing them, and providing output signals to control the system's behavior. Controller modules are commonly used in a wide range of applications, including industrial automation, robotics, automotive systems, aerospace, consumer electronics, and more. They play a crucial role in ensuring precise and accurate control over complex systems.


Microprocessor: The core component of the module is a microprocessor, which is a small, programmable chip capable of executing instructions and performing calculations. It serves as the control unit for the module.

Inputs: The controller module receives input signals from various sensors or external devices, such as temperature sensors, pressure sensors, switches, or other control modules. These inputs provide information about the system's current state.

Outputs: Based on the input signals and programmed instructions, the controller module generates output signals that control actuators, motors, valves, displays, or other components in the system. It regulates and adjusts the system's behavior according to the desired parameters.

Programming and Algorithms: The microprocessor in the controller module can be programmed using specific software or programming languages. The programming allows customization of the control logic, algorithms, and response characteristics of the system. Different control strategies, such as PID (Proportional-Integral-Derivative) control, can be implemented to achieve the desired performance.

Communication: Many controller modules support communication interfaces, such as serial communication (RS-232, RS-485), Ethernet, or fieldbus protocols (Profibus, Modbus). These interfaces enable the controller module to exchange data with other devices, such as human-machine interfaces (HMIs), supervisory control and data acquisition (SCADA) systems, or other controller modules in a distributed control system.

Real-Time Operation: Many controller modules operate in real time, meaning they can process input signals and generate output signals within specific time constraints. This capability is essential for applications where precise timing and responsiveness are crucial, such as robotics or motion control systems.

WOC has the largest stock of Woodward Steam Turbine Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


How to Check Price and Availability For 9907-164?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.

What Payment Options Do You Accept?

Bank Transfer is the preferred payment method. For more payment options contact us.
