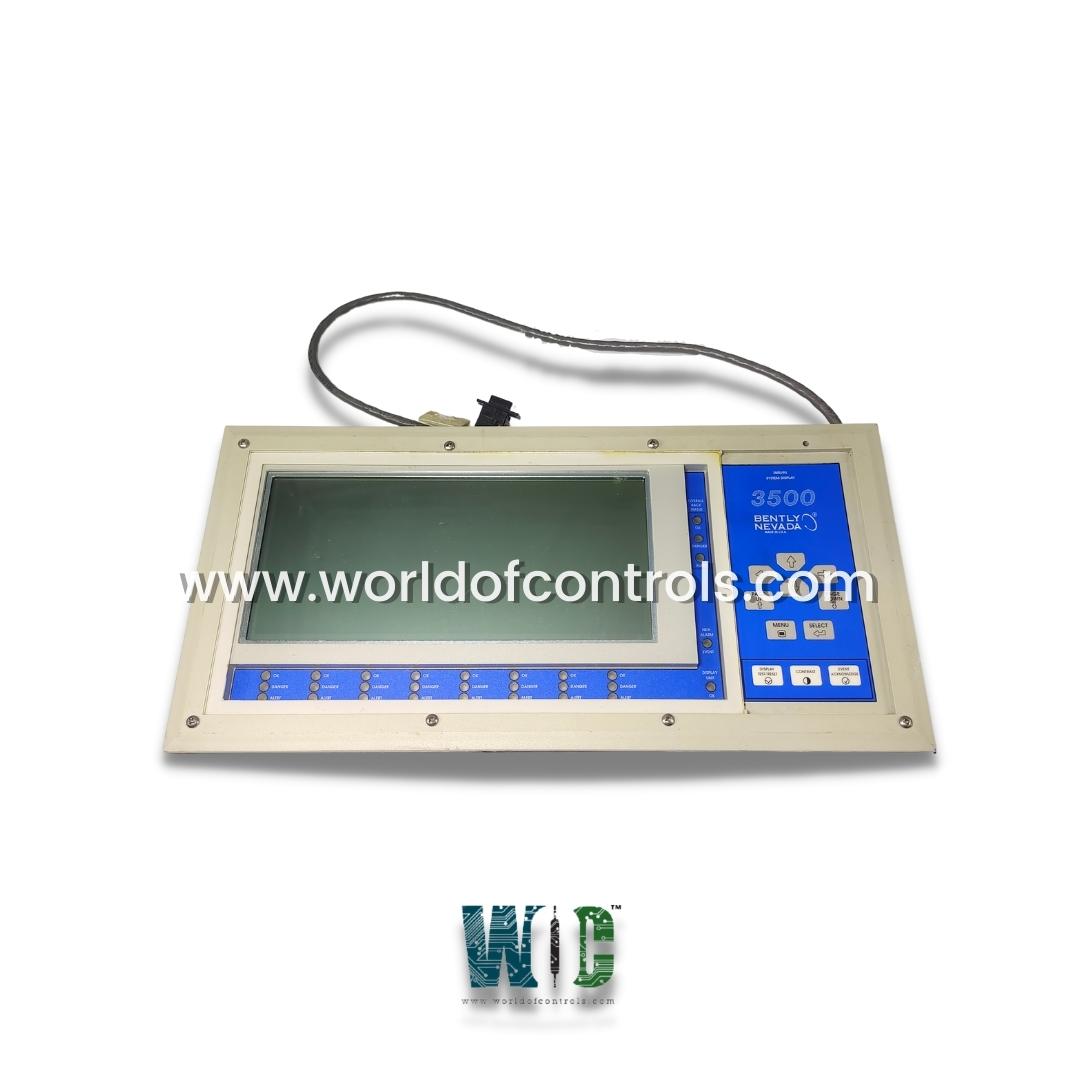

3500/93 - System Display

3500/93 - System Display 3500/93 - System Display

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

3500/93 - System Display is available in stock which ships the same day.

3500/93 - System Display comes in UNUSED as well as REBUILT condition.

To avail our best deals for 3500/93 - System Display, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: 3500/93
Manufacturer: Bently Nevada
Manufacturer Origin: United States
Product Type: 3500/93 System Display
Inputs Power Consumption: 15.5 watts Maximum

3500/93 is a Display Interface I/O Module & it is built to satisfy the criteria of American Petroleum Institute Standard 670 and provides local or remote visual indication of all 3500 Machinery Protection System information stored in the rack, including All Channel, Monitor, Relay Module, Keyphasor Module, or Tachometer Module data is listed in the System Event List. The 3500 Rack Configuration Software is used to set up the 3500/93 System Display.

3500/93 Mounting

There are four different ways to mount the display:

Face Mounting: Using a custom hinged support, the display fits right over the front panel of any full-size 3500 racks. This allows you to access the rack's buffered output connectors, as well as the user interface buttons and switches, without having to detach or disable the display.

19 Inch EIA Rack Mounting: Up to 100 feet away from the 3500 System, the display is mounted on 19-inch EIA rails. When using the External Power Supply, you can be up to 4000 feet away from the 3500 System.

Panel Mounting: The display is housed in a panel cutout in the same cabinet as the 3500 System or up to 100 feet away. When using the External Power Supply, you can be up to 4000 feet away from the 3500 System.

Independent Mounting: Up to 100 feet distant from the 3500 System, the display is flush against a wall or panel. When using the External Power Supply, you can get up to 4000 feet away from the 3500 System.

3500/93 Features

  • Each 3500 rack may support up to two displays, and each display needs a free slot to insert the DIM that corresponds to it. The cable connection between the DIM and the Display, when the display is not face-mounted, can be done from the front of the 3500 racks or from the I/O module in the back of the rack.
  • Use the External Power Supply and Cable Adapter for applications that need cables longer than 100 feet.
  • Applications that employ the back-lit Display Unit are required to make use of the external power supply. There are two external power supplies: one is for 115 Vac connections, the other is for 230 Vac connections. Installation of external power supplies is made simpler with the External Power/Terminal Strip Mounting Kit.
  • The Independent Mount Housing is made to accommodate the External Power/Terminal Strip Mounting Kit. The kit simplifies the process of installing an external power supply in either the Independent Mount Housing or housing that the user provides.

3500/93 Input Specifications

Power Consumption

15.5-watt maximum (Display Unit & Display Interface Module); 5.6 watt maximum (-01 Display Unit); 12.0 watt maximum (-02 Display Unit).

Data Types

Collects data, such as current values and current alarm status, via a high-speed internal network.

3500/93 Rack Space Requirements

  • Main Board: 1 full-height front slot.
  • I/O Modules: 1 full-height rear slot

Display Interface Module

  • OK LED: Indicates that the Display Interface Module is in good working order.
  • TX/RX LED: When the Display Interface Module is communicating with other modules in the 3500 rack, the TX/RX LED illuminates.

Display Unit

  • Unit OK LED: Indicates that the Display Unit is in good working order.
  • Rack OK LED: Indicates that the rack is in good working order and that all channels are operational.
  • Rack Alert LED: Indicates that the rack is in Alert mode, with at least one channel in Alert mode.
  • Rack Danger LED: Indicates that the rack is in Danger mode, with at least one channel in Danger.
  • OK LED (8): Indicates that the displayed channel(s) above the LED are in good working order.
  • Alert LED (8): Indicates that the displayed channel(s) above the LED are in Alert mode.
  • Danger LED (8): Indicates that the displayed channel(s) above the LED are in danger.
  • A new alarm has been detected since the last acknowledgement, as indicated by the New Alarm LED.
  • 640 x 200 Reflective Dots LCD: A graphical and textual display of data. The LCD module is a reflective FSTN dot matrix with no backlight. For adequate visibility, ambient white light is required. The best visibility is in indirect sunlight, and LCD visibility decreases as the ambient light level decreases. Under normal office lighting conditions, LCD displays acceptable visibility.
  • Transflective 640x200 Dots LCD: Displays data graphically and textually. The transflective FSTN dot matrix LCD module has a white electroluminescent backlight.

Communication between the Display Interface Module and the Display Unit

  • Protocol: Bently Nevada proprietary protocol and Modbus protocol based on AEG PI-MBUS-300 Rev. E Reference Manual are supported.
  • Hardware: RS422 interface
  • Channel update rate: 1 second on average.

WOC supports a large number of Bently Nevada Parts, contact us if you require additional information or have a question.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 3500/93?

The 3500/93 is a Display Interface I/O Module that is built to satisfy the criteria of American Petroleum Institute Standard 670 and provides local or remote visual indication of all 3500 Machinery Protection Systems.

What is Panel Mounting?

A mechanical element or feature included in the design of a connector half is known as panel mounting.
