3500/92 - Communication Gateway module

3500/92 - Communication Gateway module 3500/92 - Communication Gateway module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

3500/92 - Communication Gateway module is available in stock which ships the same day.

3500/92 - Communication Gateway module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 3500/92 - Communication Gateway module, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part Number: 3500/92
Manufacturer: Bently Nevada
Series: 3500
Product Type: Communication Gateway module
Availability: In Stock
Country of Manufacture: United States(USA)

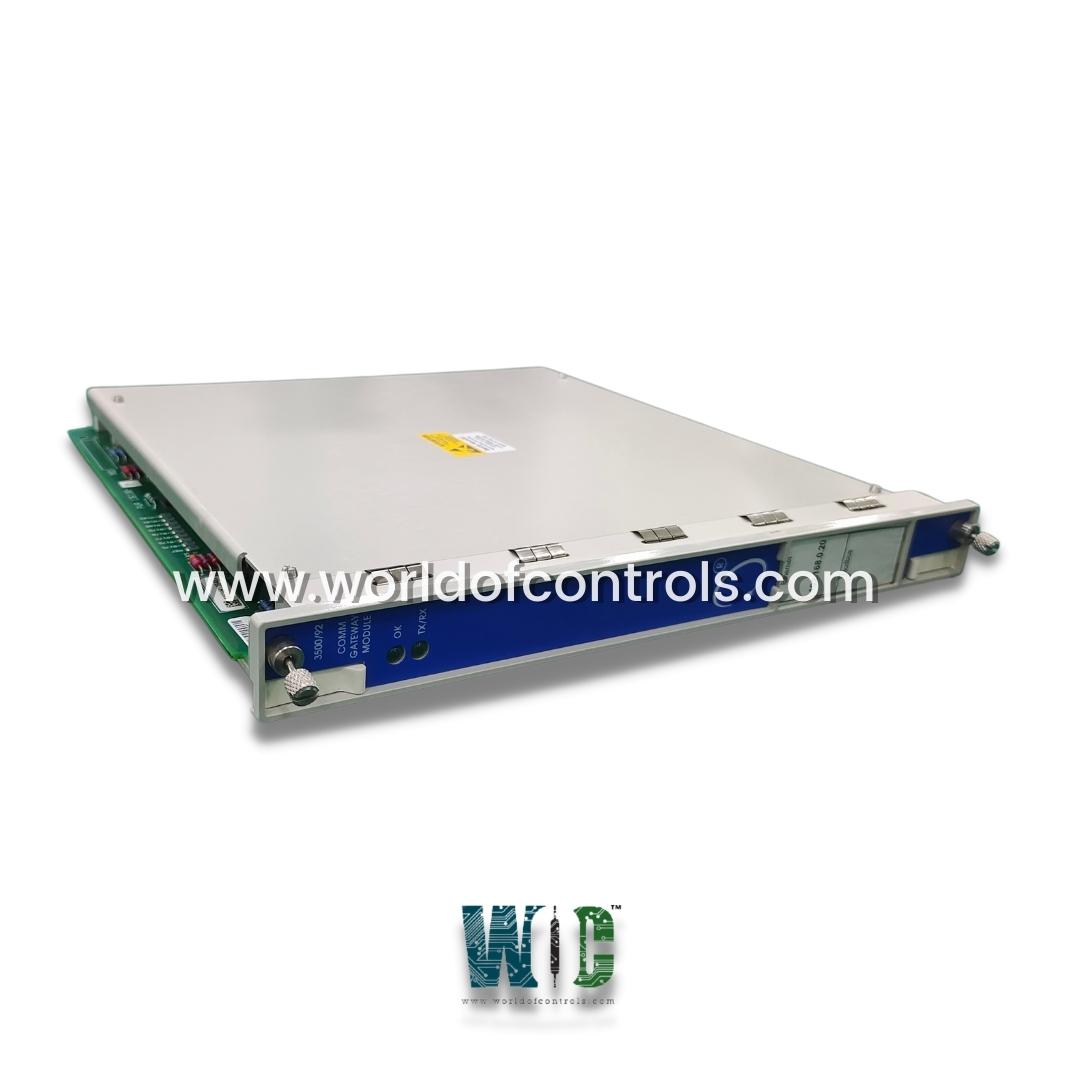

3500/92 is a Communication Gateway module developed by Bently Nevada. The 3500/92 Communication Gateway module offers extensive serial (RS232/RS422/RS485) and Ethernet TCP/IP communication capabilities for integrating all rack monitoring values and statuses with process control and other automation systems. Additionally, it enables Ethernet communication with the data acquisition software and 3500 Rack Configuration Software. Protocols supported include:

  • Modicon Modbus protocol (through serial communications)
  • Modbus/TCP protocol (a serial Modbus variation used for TCP/IP Ethernet communications)
  • Proprietary Bently Nevada protocol(for communication with 3500 Rack Configuration and Data Acquisition Software packages)

3500/92 Functional Description

For 10BASE-T star configuration Ethernet networks, the 3500/92's Ethernet connection is an RJ45 connection. With the exception of the primary value Modbus registers, the 3500/92 supports the communication interfaces, communication protocols, and additional functionality from the original 3500/90. The primary value Modbus registers were replaced by a Configurable Modbus Register Utility in the 3500/92, which may now offer the same functionality.

Power Consumption

  • 5.0 watts typical with ModbusRS232/ RS422 I/O Module
  • 5.6 watts typical with Modbus RS485 I/O Module

3500/92 Data Types

  • Utilizes a high-speed internal network to gather information from other modules in the rack, including current measured values with a time stamp, module statuses, and current alarm statuses.
  • The exact data types returned depend on the channel configuration and module type.
    Update Time: The rate of data gathering for all modules in the 3500 rack will not be greater than 1 second, depending on the design of the rack.

Protocols

BNC Host Protocol
Communication over Ethernet TCP/IP with the 3500 Configuration Software and the 3500 Data Acquisition and Display Software.

Modbus
based on the PIMBUS-300 Reference Manual for AEG Modicon. use the RTU transmission mode, or remote terminal unit.

Communication Link
Ethernet, 10Mbps, and conforms to IEEE802.3

Protocol
Ethernet TCP/IP frame and Modbus/TCP

Connection
RJ-45 (telephone jack style) for 10BASE-T Ethernet cabling

Outputs

OK LED
Indicates when the module is functioning properly.

TX/RX LED
Indicates when the system is communicating with other modules in the 3500 rack.

Rack Space Requirements

  • Monitor Module - 1 full-height front slot
  • I/O Modules - 1 full-height rear slot

Environmental Limits of Main and I/O Module

  • Operating Temperature: -30 °C to +65 °C
  • Storage Temperature: -40 °C to +85 °C
  • Humidity: 95%, non-condensing

Ethernet

  • Communication - Link Ethernet, 10Mbps, and IEEE802.3 compliant
  • Ethernet TCP/IP frame and Modbus/TCP protocol
  • RJ-45 (telephone jack style) connector for 10BASE-T Ethernet cabling

WOC supports a large number of Bently Nevada parts. Please do not hesitate to contact us if you require additional information or have a question.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 3500/92?
3500/92 is a Communication Gateway module developed by Bently Nevada.

What is the operating temperature of the module?
The Operating Temperature ranges from -30 degrees Celsius to +65 degrees Celsius

What is the storage temperature of the module?
The storage temperature ranges from -40 degrees Celsius to +85 degrees Celsius.

What are the rack space requirements of the Monitor Module?
A space requirement of 1 full-height front slot is required for the monitor module.

What does the TX/RX LED indicate?
TX/RX LED indicates when the system is communicating with other modules in the 3500 rack.

What are the rack space requirements of I/O modules?
A space requirement of 1 full-height rear slot is required for the I/O Modules.

How to Check Price and Availability For 3500/92?
Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
