SPECIFICATIONS
Part Number: 3500/05-01-02-00-00-01
Manufacturer: Bently Nevada
Product Type: System Rack
Operating Temperature: -52oC to +100oC
Storage Temperature: -52oC to +105oC
Country of Manufacture: USA (United States)
Functional Description

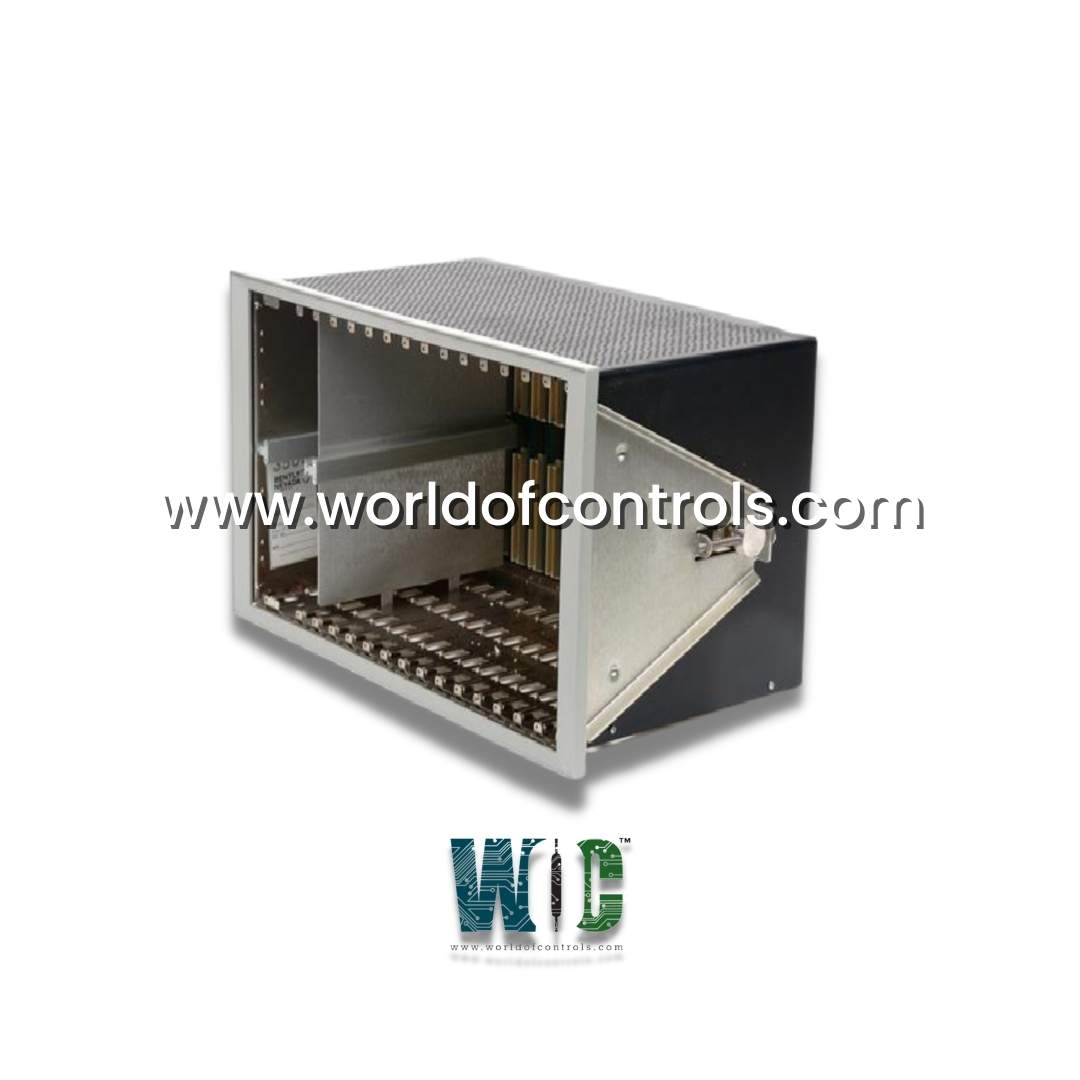

3500/05-01-02-00-00-01 is a System Rack manufactured by Bently Nevada. It is specifically engineered for use with Bently Nevada’s 3500 series condition monitoring system, offering reliable and efficient organization for vibration, temperature, and other types of sensors used in critical machinery monitoring.
Features
- Rack Size and Capacity: The system rack features a 19-inch EIA standard size, offering 14 module slots. This configuration is ideal for accommodating a variety of I/O modules, power supplies, and interface components, ensuring that each module has the necessary space to function optimally.

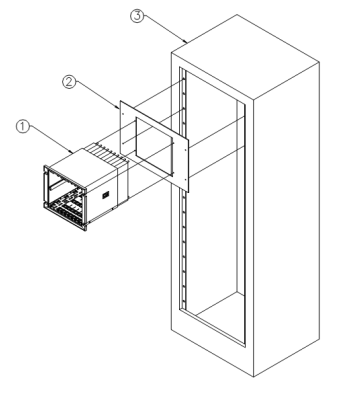

- Mounting and Installation: This system rack is designed as a rack mount option, meaning it can be securely installed on standard 19-inch EIA rails. This provides a space-efficient and organized way to mount the system rack in control panels or industrial environments. The full-size rack allows easy access to wiring connections and I/O modules, with all components being accessible from the rear of the rack, enabling straightforward maintenance and troubleshooting.
- Module Slot Configuration: The system rack is designed to accommodate up to 14 module slots. The power supplies and rack interface modules must occupy the far-left positions in the rack, ensuring proper system functionality. The remaining 14 available positions (or seven in the mini-rack configuration) can be used for any combination of modules, including signal input modules, vibration monitoring modules, or other system components needed for machinery condition monitoring.
European Compliance and Approvals
- The system rack does not require additional agency approvals (denoted as 0 None).
- The rack complies with CEE standards, making it suitable for use in European markets and ensuring it meets essential safety and environmental requirements.
- For users planning to install internal barriers within the rack, the system provides ample space to integrate these components. The system design allows for customization and flexibility, ensuring that the rack meets various safety, electrical, and environmental specifications based on the needs of the specific application.
- The system rack requires specific power supplies and a rack interface module to be placed in the far-left positions. These modules provide the necessary power and communication between the system rack and the rest of the monitoring components, ensuring smooth and uninterrupted operation of the system.
Benefits
- The 19-inch EIA rack format allows for compact installation of multiple modules, maximizing available space in control rooms and industrial panels.
- The rack offers flexibility in module arrangement, enabling users to tailor the system to their specific needs with a variety of monitoring and sensor modules.
- With all connections and modules accessible from the rear of the rack, it is easy to maintain and troubleshoot the system, which is critical for ensuring continuous machine performance monitoring.
- The system rack meets CEE compliance standards, ensuring it is suitable for European operations while maintaining high safety standards.
- Built to withstand the demands of industrial environments, the system rack is designed for reliability and long-term performance.
Our team of experts is available round the clock to support your Bently Nevada needs. Our team at WOC is happy to assist you with any of your automation requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.
FREQUENTLY ASKED QUESTIONS
What is 3500/05-01-02-00-00-01?
It is a System Rack manufactured by Bently Nevada.
What is the rack's size and capacity?
The system rack is a 19-inch EIA rack with a total of 14 module slots, offering flexibility for different combinations of modules based on system requirements.
How is the system rack mounted?
The system rack is designed for rack mounting and can be securely installed on 19-inch EIA rails. This allows for easy integration into control panels or machinery monitoring setups while ensuring efficient use of space.
What are the installation requirements for the system rack?
The rack mounts onto 19-inch EIA rails and requires specific power supplies and a rack interface module. It also allows flexibility for installing internal barriers if needed for safety or compliance purposes.
What is the significance of the European compliance option (CEE)?
The system rack complies with CEE (European compliance), ensuring that it meets European safety, environmental, and electrical standards, making it suitable for use in European markets.
