330854-080-24-00 - High Temperature FluidLoc Cable

SPECIFICATIONS

Part Number: 330854-080-24-00
Manufacturer: Bently Nevada
Product Type: 3300 XL 8 mm Extension Cable
Availability: In Stock
Country of Origin: USA

330130-040-00-05 is a 3300 XL 25mm High-Temperature FluidLoc Cable manufactured by Bently Nevada and used in proximity transducer system. Proximity Sensors come from the factory with a standard calibration to AISI 4140 steel. It is possible to calibrate on-demand to additional target materials. You might consult Bently Nevada Applications. Take note of the factors to take into account when using eddy current proximity probes for Overspeed protection applications when assessing this transducer system for tachometer or Overspeed measurements. Physically and technologically, the non-XL 3300 5 and 8 mm components can be swapped out for the 3300 XL 8 mm components. Even if the packaging of the 3300 XL Proximitor Sensor differs from that of its predecessor, it is still designed to fit in the same 4-hole mounting pattern when used with the same mounting base's 4-hole mounting pattern and will adhere to the same mounting space requirements.

330130-040-00-05 Features

• System performance is restricted to the non-XL 3300 5 and 8 mm Transducer System standards when XL and non-XL 3300 series 5 and 8 mm system components are combined.
• The 3300-series 5 mm probe (see Specifications and Ordering Information p/n 141605-01) has a smaller physical footprint than an 8 mm probe, but it cannot be used with reduced side view clearances or tip-to-tip spacing.
• When the use of an 8 mm probe is prohibited by physical—not electrical—constraints, this method is used. Use the 3300 NSvTM Proximity Transducer System when narrow side view probes are needed.
• A thicker encapsulation of the probe coil in the molded PPS plastic probe tip is offered by 8 mm probes. As a result, the probe becomes more robust.
• The probe body's increased diameter also offers a stronger, more durable casing. For the best robustness against physical abuse, Bently Nevada advises using 8 mm probes wherever it is practical.

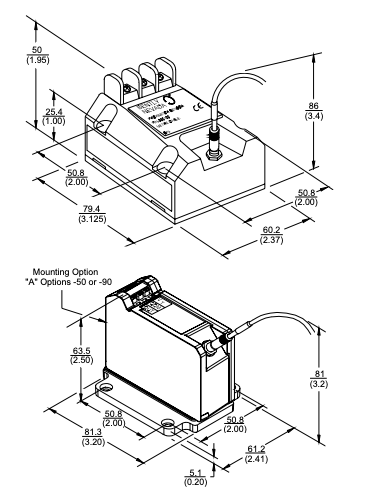

Figure 2: Physical mounting characteristics showing interchangeability of 3300 and 3300 XL Proximitor® Sensors when the 4-hole mounting option is used

Characteristics

• Product Family: 25mm, 25-mm, 25 mm, 330850
• Cable Length Option : 080 = 8.0 metres (26.2 feet)
• Armor and Cable Option : 24 = High Temperature FluidLoc cable
• Extension Cable Material : 75 ohm triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable.
• Operating and Storage Temperature : -35°C to +200°C (-31°F to +392°F)
• Extension cable capacitance : 69.9 pF/m (21.3 pF/ft) typical
• Weight : 0.045 Kg

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. If you require any additional information, please contact WOC.

FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 330854-080-24-00?

330854-080-24-00 is a 3300 XL 25mm High-Temperature FluidLoc Cable used in Proximity Transducer System.
