330190-085-00-00 -Bently Nevada Extension Cable

SPECIFICATIONS

Part Number: 330190-085-00-00
Manufacturer: Bently Nevada
Product Type: Extension Cable
Operating and Storage Temperage: –52°C to +177°C
Country of Manufacture: USA (United States)

Functional Description

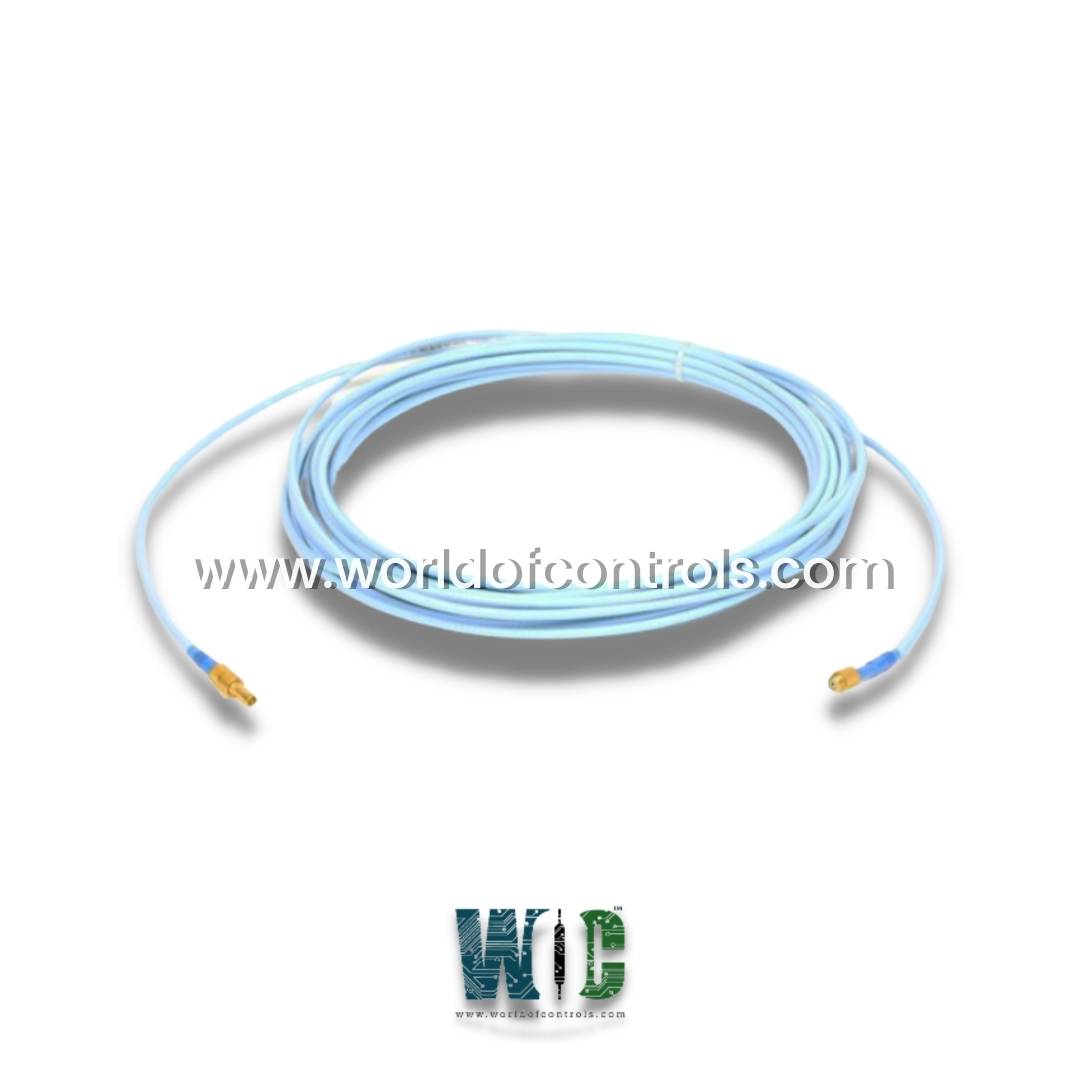

330190-085-00-00 is an Extension Cable manufactured by Bently Nevada. It is a part of the 3300 XL series. It is designed to connect proximity probes to Proximitor sensors in industrial monitoring systems. With a length of 8.5 metres (27.9 feet), it uses a standard 75 ohm triaxial cable insulated with FEP for durability and high performance.

Product Attributes

• Cable Length: 8.5 metres (27.9 feet), Designed for extended applications while maintaining signal performance over long distances.
• Cable Type: Standard 75 ohm triaxial cable with FEP (Fluoroethylene Propylene) insulation, offering excellent dielectric properties, flexibility, and resistance to environmental stressors.
• Capacitance: 69.9 pF/m (typical) or 21.3 pF/ft, ensuring low signal distortion and high fidelity over distance.
• Agency Approvals: Not required, This model is not associated with specific agency certifications, making it suitable for general industrial applications.

Installation Guidelines

• Field Wiring Compatibility: Supports 0.2 to 1.5 mm² (16 to 24 AWG). It is recommended to use a 3-conductor shielded triad cable with tinned conductors for optimal EMI protection and connectivity.
• Maximum Distance: The total allowable field wiring distance between the 3300 XL Proximitor Sensor and the monitoring system can extend up to 305 metres (1,000 feet).
• Frequency Considerations: Signal quality may experience high-frequency roll-off over longer cable runs. For accurate monitoring, refer to Figures 10 and 12 of the technical manual for detailed frequency response data.

Performance

• Linear Range: The cable supports a proximity system linear measurement range of 2 mm (80 mils). Measurement starts approximately 0.25 mm (10 mils) from the target. The effective linear range spans from 0.25 mm to 2.3 mm (10 to 90 mils), translating to approximately –1 to –17 Vdc output.
