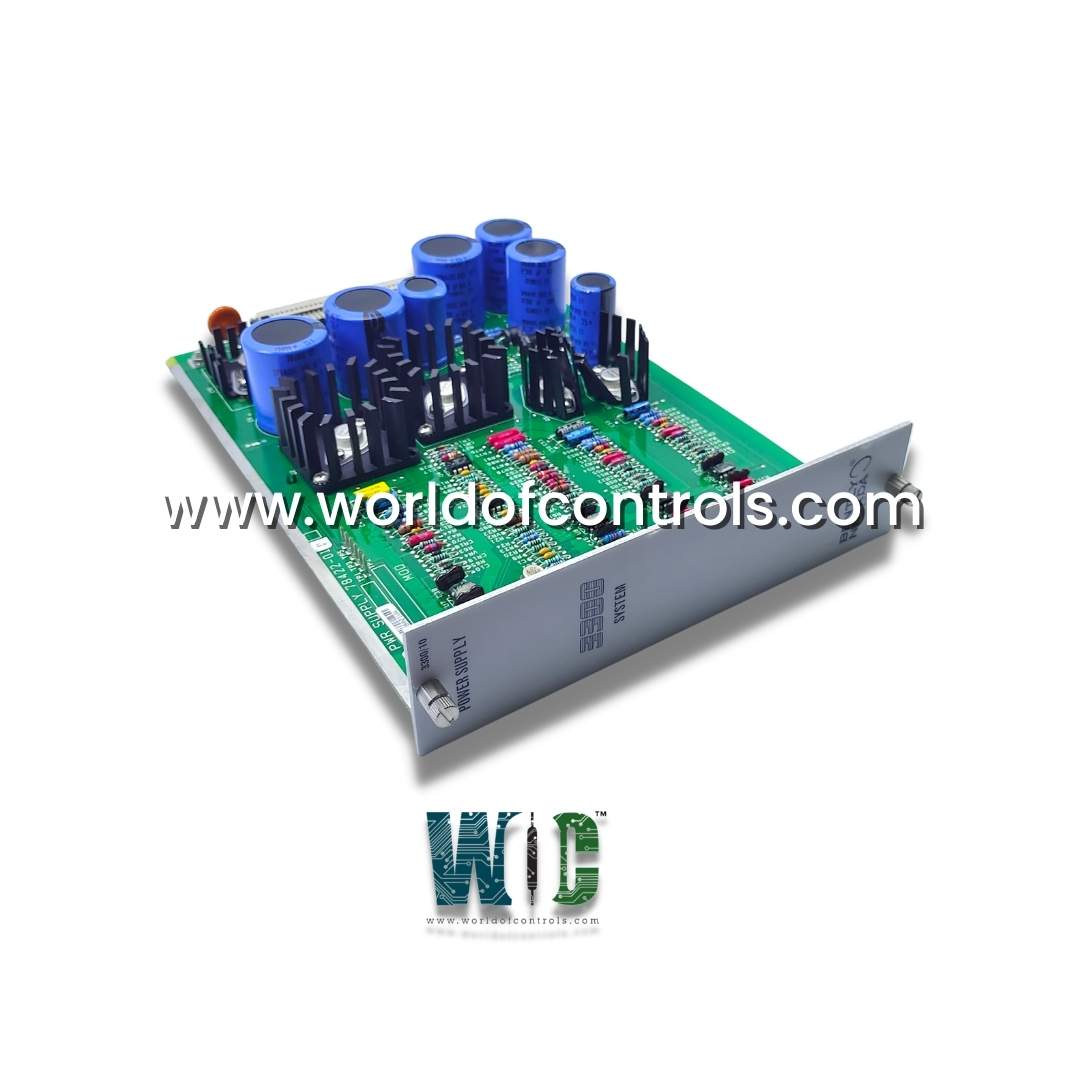

3300-10-PWA78422-01 - Power Supply Module

SPECIFICATIONS

Part Number: 3300-10-PWA78422-01
Manufacturer: Bently Nevada
Product Type: Power Supply Module
Operating Temperature : -35oC to +85oC
Storage Temperature : -51oC to +100oc
Country of Manufacture: USA (United States)

Functional Description

3300-10-PWA78422-01 is a Power Supply Module manufactured by Bently Nevada. It is a part of 3300 XL series. Designed to provide reliable, continuous power to up to 36 channels in rotating machinery protection systems. It supports both 115 Vac and 220 Vac input voltages, has an easy-to-configure design, and eliminates the need for a secondary power supply in most systems.

Features

•
  The Power Supply is engineered to deliver reliable and regulated power to up to 12 monitors and their corresponding transducers. This makes it ideal for applications where monitoring of multiple machinery components is required. The module is capable of supporting up to 36 channels within a rack, ensuring scalability in larger installations.
• The Power Supply is specifically designed to provide continuous, stable power to a 3300 rotating machinery protection system. This ensures that the monitoring and protection of machinery are uninterrupted, which is crucial for preventing downtime and equipment failure.
• The Power Supply Module is installed in the left-most location (position 1) in a 3300 rack. This allows it to easily integrate with the other components in the system. The module converts standard 115 Vac or 220 Vac input voltage into the appropriate DC voltages needed by the monitors and transducers in the rack.
• The module offers flexibility in voltage operation. It can support 115 Vac or 220 Vac input voltage, and users can select the primary voltage by simply moving a cable from one connector to another and replacing the external fuse. This ability to switch between voltages makes the module versatile and adaptable to different power environments without the need for special tools or additional components.
• One of the standout features of the Power Supply is its simple maintenance. No special tools or component changes are required for voltage selection or fuse replacement, making it easy for operators to maintain and replace parts if needed, reducing maintenance time and costs.

Our team of experts is available round the clock to support your Bently Nevada needs. Our team at WOC is happy to assist you with any of your automation requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is 3300-10-PWA78422-01?
It is a Power Supply Module manufactured by Bently Nevada.

What type of power input does the Power Supply use?
The Power Supply accepts 115 Vac or 220 Vac input voltage. The input voltage can be easily selected by moving a cable between connectors and replacing an external fuse, without requiring special tools or additional components.

Where is the Power Supply installed in the rack?
The Power Supply is installed in the left-most position (position 1) within the 3300 rack.
