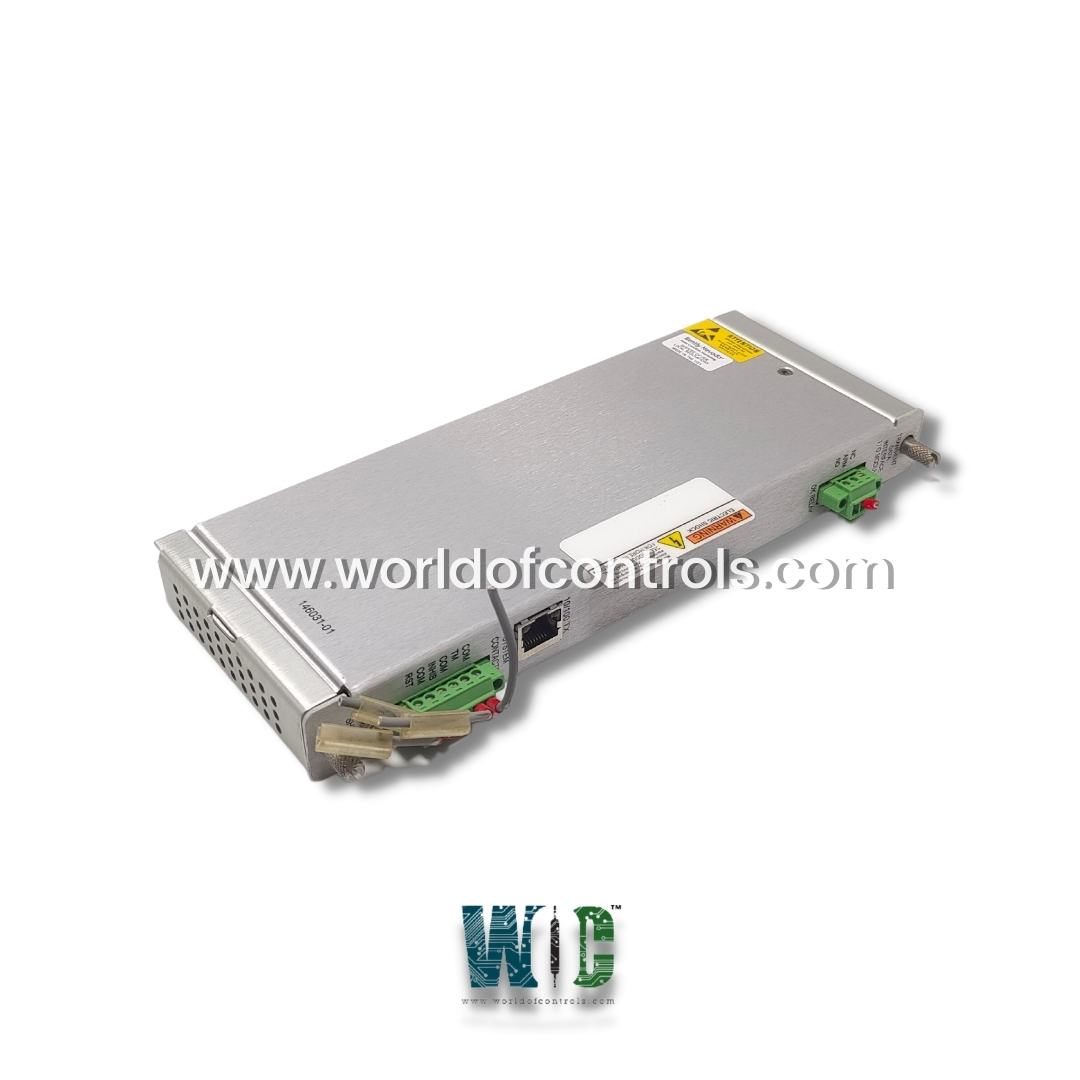

146031-02 - Transient Data Interface Module

146031-02 - Transient Data Interface Module 146031-02 - Transient Data Interface Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

146031-02 - Transient Data Interface Module is available in stock which ships the same day.

146031-02 - Transient Data Interface Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 146031-02 - Transient Data Interface Module, contact us and we will get back to you within 24 hours.


Part Number: 146031-02
Manufacturer: Bently Nevada
Series: 3500
Input Signal: -10 Vdc to +10 Vdc
Power Consumption: 10.5 watts
Front Panel: USB-B
Ethernet: 100Base-FX Fiber-Optic
Operating Temperature: -30°C to +65°C
Dimensions: 241.3 mm x 24.4 mm x 241.8 mm
Weight: 0.82 kg (1.8 lbm)
Availability: In Stock
Repair: 3-7 Day
Country of Origin: United States


146031-02 is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software.

WOC maintains the largest inventory of replacement parts for Bently Nevada Monitoring systems. Additionally, we offer warranty-backed unused and rebuilt boards as well as board repairs for your damaged ones. For your OEM needs, our team of professionals is available around the clock. We at WOC are happy to help you with any needs you may have in terms of automation. Please contact our team by phone or email for pricing and availability on any components and repairs.


What is a Data Interface Module?

A Data Interface Module is a component designed to enable the seamless exchange of data between various systems, devices, or software applications.

How does the Data Interface Module function?

The module acts as a mediator, translating and facilitating the transfer of data between different systems, ensuring compatibility and smooth communication.

What types of systems or devices can the Data Interface Module connect?

The Data Interface Module is versatile and can connect a variety of systems, devices, or applications, fostering interoperability.
