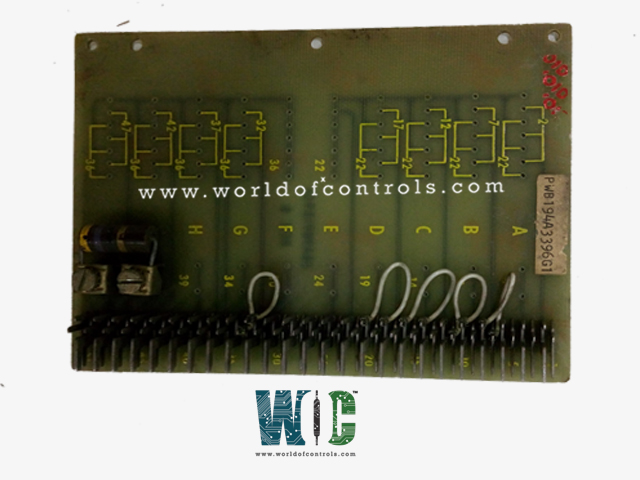

PWB194A3396G1 - Jumper Card

PWB194A3396G1 - Jumper Card PWB194A3396G1 - Jumper Card

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

PWB194A3396G1 - Jumper Card is available in stock which ships the same day.

PWB194A3396G1 - Jumper Card comes in UNUSED as well as REBUILT condition.

To avail our best deals for PWB194A3396G1 - Jumper Card, contact us and we will get back to you within 24 hours.


Part Number: PWB194A3396G1
Manufacturer: General Electric
Country of Manufacture: United States(USA)
Series: Mark I or II
Function: Jumper Card

PWB194A3396G1 is a Jumper Card manufactured by GE. It is a part of Mark I or II series. The Mark I and Mark II product lines were among the first GE (General Electric) Gas Turbine Control Systems. The Mark I and Mark II series, once cutting-edge technology with a massive global installed customer base, are now rarely used in live applications. As with all of the obsolete and legacy product lines listed on our website, we intend to stock and market these boards until the last of these systems are decommissioned.

Ground Fault detection

  • The MARKII control system has three potential ground fault sources: 'Ground Fault,' '125VDC Ground Fault,' and 'Thermocouple Ground Fault.' For the past seven years, the 'Speedtronic Ground Fault' and '125VDC Ground Fault' have hampered the turbine's smooth operation and functioning.
  • The most recent trip of TG701 occurred in September 2009, just one month before the turnaround, as a direct result of a '125VDC Ground Fault.' Ground faults are extremely hazardous to all electrical and electronic systems. Aside from outages, they can cause sparking and hardware damage.
  • When one of the two poles, positive or negative, is grounded, a ground fault is signaled. The fault should be addressed as soon as possible because grounding of the second pole will cause sparking and tripping of the machine.

WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.




What is PWB194A3396G1?
PWB194A3396G1 is a Relay Output Board manufactured by GE.

How to obtain this Relay Output Board?
Contact WOC, We provide General Electric and Bently Nevada OEM parts.
