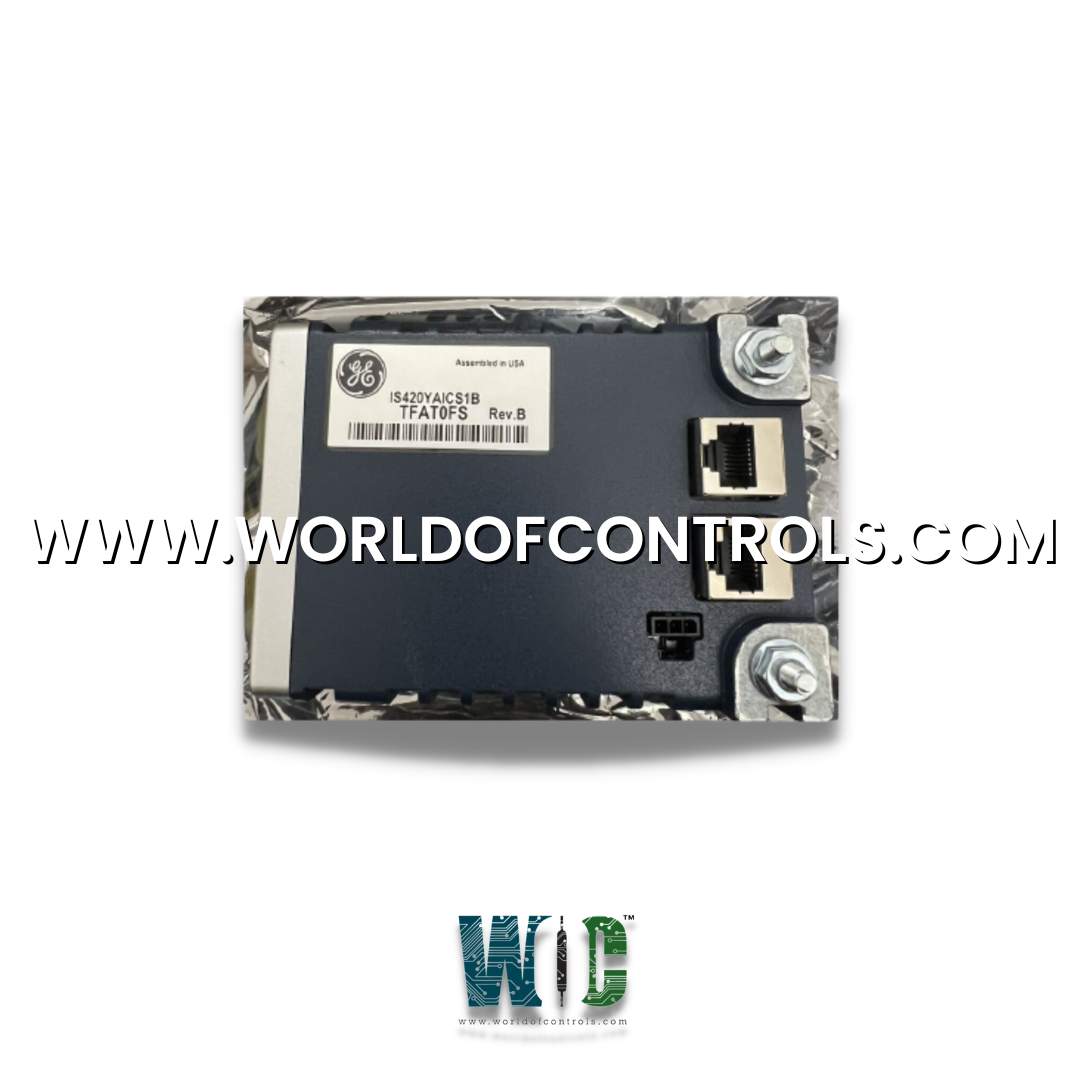

IS420YAICS1B - Analog I/O Module

IS420YAICS1B - Analog I/O Module IS420YAICS1B - Analog I/O Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS420YAICS1B - Analog I/O Module is available in stock which ships the same day.

IS420YAICS1B - Analog I/O Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS420YAICS1B - Analog I/O Module, contact us and we will get back to you within 24 hours.


Part Number: IS420YAICS1B
Manufacturer: General Electric
Series: Mark VIeS
Analog inputs: 10
Temperature Range: -40 to 158 degrees Fahrenheit
Compatible Firmware: V05.01 or Later
ControlST Software Suite Version: V06.01 and Later Versions
Input Converter Resolution: 16-bit ADC
Manua:l GEH-6855
Power Consumption: 5.3 W
Processor Board: BPPC
Function: Analog I/O Module
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

IS420YAICS1B is an analog I/O module designed and developed by GE. It is a part of GE Mark VIeS control system. The Analog I/O pack (YAIC) is an electrical interface that connects one or two I/O Ethernet networks to an analog input/output terminal board. The YAIC includes a processor board shared by all Mark VIeS Safety control distributed I/O packs as well as an acquisition board dedicated to the analog input function. The I/O pack supports up to ten analog inputs, the first eight of which can be configured as 5 Vor 10 V or 4-20 mA current loop inputs. The final two inputs can be set to 1 mA or 0-20 mA current inputs.


  • The component has current loop inputs, which are complemented by load terminal resistors conveniently located on the terminal board. These resistors enable precise current loop measurements, ensuring accurate and reliable data for control and monitoring purposes.
  • It boasts dual 0-20 mA current loop outputs. These outputs are essential for seamless interfacing with other systems and devices, facilitating the transmission of control signals and sensor data to external components. Whether it's for process control or data acquisition, these outputs enhance versatility and connectivity.
  • Three-pin power input ensures the device operates efficiently, guaranteeing consistent and dependable performance. Furthermore, the inclusion of two RJ-45 Ethernet connectors expands its connectivity options, enabling data exchange and communication with networked systems, enhancing its adaptability in modern industrial settings.
  • Streamlining the output process, the component features a DC-37 pin connector directly connected to the associated terminal board connector. This simplifies the connection procedure, reducing setup time and ensuring reliable data transmission. Additionally, the device incorporates LED indicator lights, offering valuable visual diagnostics. These indicators provide real-time information about the operational status, simplifying troubleshooting and maintenance tasks.
  • Integration ensures compatibility and simplifies the installation process, allowing users to leverage its capabilities effectively. Moreover, the component is received by a single DC-37 pin connector on simplex termin, further streamlining the connection process and ensuring a secure and reliable attachment to the system.
  • Combines precision, connectivity, and user-friendly features to meet the demands of industrial applications effectively. Its ability to provide accurate measurements, seamless interfacing, and streamlined connectivity make it an invaluable asset in enhancing control and monitoring functions in industrial settings.


  1. Securely mount the terminal board of choice.
  2. Insert one simplex YAIC I/O pack or three TMR YAIC I/O packs directly into the terminal board connectors.
  3. Use the threaded studs next to the Ethernet ports to mechanically secure the packs. The studs fit into a terminal board-specific mounting bracket. The bracket should be positioned so that no right-angle force is applied to the -37 connector between the pack and the terminal board. The adjustment should only be needed once during the product's lifetime.
  4. Depending on the system configuration, connect one or two Ethernet cables. The pack will work with either port. When using dual connections, it is common practice to connect ENET1 to the network associated with the R controller.
  5. Connect the pack to power by plugging in the connector on the pack's side. This connector does not need to be inserted with the power disconnected from the cable because the I/O pack has an inherent soft-start capability that controls current inrush on power application.
  6. Configure the I/O pack as needed.


The following connectors are included in the I/O pack:

  • A DC-37 pin connector on the YAIC's underside connects to the discrete input terminal board. The 24 input signals, ID signal, relay coil power, and feedback multiplex command are all housed on the connector.
  • The primary system interface is an RJ-45 Ethernet connector labeled ENET1 on the pack's side.
  • The redundant or secondary system interface is a second RJ-45 Ethernet connector named ENET2 on the side of the I/O pack.
  • A 3-pin power connector on the pack's side provides 28 V dc power to the pack and terminal board.

Product Attributes

  • The product boasts exceptional accuracy, ensuring that the input measurements are highly precise. With an accuracy of 0.1% of full scale, it can provide reliable data even when operating under varying temperatures, maintaining consistent performance across its entire temperature range. This level of accuracy is crucial for applications where precise measurements are critical.
  • To maintain signal integrity and minimize interference, the product incorporates robust noise suppression mechanisms. It utilizes hardware filters with single-pole attenuation starting at 500 rad/s. This hardware filter efficiently removes unwanted high-frequency noise from the input signals, ensuring clean and reliable data.
  • In addition to hardware filtering, the product also offers a software filter. This filter employs a two-pole low-pass filter configuration that is adjustable to various cutoff frequencies: 0.75 Hz, 1.5 Hz, 3 Hz, 6 Hz, and 12 Hz. This flexibility allows users to tailor the filter to their specific noise suppression needs, further enhancing signal quality.
  • Common mode rejection (CMR) is essential for rejecting unwanted interference or noise that appears as a common signal across both input leads. The product excels in this regard, providing an impressive AC CMR of 60 dB at 60 Hz. This level of CMR ensures that interference originating from common sources, such as electrical noise, is effectively canceled out.
  • AC CMR remains robust even when dealing with common mode voltages of up to ±5 V. This means that even in the presence of relatively high common mode voltages, the device maintains its ability to reject unwanted noise, ensuring the accuracy and reliability of the measured signals.


  • The I/O pack includes an internal processor board, while the YAICS1A includes a BPPB processor board. This processor has a limited component lifecycle, with firmware support only up to V04.06.
  • Upgrade to firmware V04.06 or higher from the ToolboxSTapplication. Firmware V05.00 and later are not supported.
    The component includes a BPPC processor board that is compatible with ControlST Software Suite V06.01 or later and firmware V05.01 or later.
  • I/O pack versions YAICS1A and YAICS1B cannot be mixed on the same T-type terminal board. A TMR set's three I/O packs must all be the same hardware form. It is designed to work with the TBAISIC and STAIS#A terminal boards.
  • Simplex makes use of a single I/O pack with one or two IONet connections.
  • TMR uses three I/O packs with a separate IONet connection on each pack.

Analog Input Configuration

  • The I/O pack can accommodate up to ten analog inputs, with a unique configuration capability. Eight of these inputs can be configured as either 5 V or 10 V inputs or 4-20 mA loop inputs, providing flexibility in adapting to different sensor requirements.
  • The remaining two inputs are specifically designed for 1 mA or 4-20 mA current inputs.

Networking Capabilities

  • This I/O pack serves as a pivotal interface within the Mark VIe system. It can seamlessly connect with up to two Ethernet networks and a terminal analog I/O board.
  • Data communication is facilitated through dual RJ45 Ethernet connectors, ensuring robust connectivity.

Redundancy Considerations

  • While many units in the Mark VIe Series support dual, TMR (Triple Modular Redundancy), or simplex redundancy configurations, it's important to note that the I/O pack is compatible only with TMR or simplex applications.
  • In TMR redundancy, three I/O packs are employed, whereas in simplex redundancy, a single I/O pack suffices. Furthermore, all I/O packs within a TMR set must share the same hardware form.

Diagnostics and Environmental Performance

  • The I/O module incorporates robust self-diagnostic capabilities. During startup, it conducts a comprehensive power-up self-test, examining flash and RAM memory, processor board hardware, and Ethernet ports for optimal functionality. Additionally, continuous monitoring of internal power supplies ensures correct operation.
  • Operating efficiently within an ambient temperature range of -40 to 158 °F, this I/O pack features a 16-bit ADC for precise input conversion. Its dimensions are H 3.25 in x W 1.65 in x D 4.78 in, making it a compact yet powerful component within your system. Compatibility with ControlST Software Suite Version V06.01 and later versions is guaranteed, with the requisite firmware version set at V05.01 or later.

WOC has the largest stock of Speedtronic control spares. Please contact our staff by phone or email for pricing and availability on any parts and repairs


What is IS420YAICS1B?
It is an analog I/O module designed and developed by GE

What type of outputs does the YAIC have?
It has two 0-20 mA current loop outputs.

How is the module powered?
It is powered by a three-pin power input.

How does the module connect to the terminal board?
The YAIC is directly mounted to a Mark VIeS terminal board and is received by a single DC-37 pin connector on simplex terminal boards.

What types of terminal boards can operate in simplex mode with a single module installed?
TMR-capable terminal boards, which have three DC-37 pin connectors, can operate in simplex mode with a single installed.
