IS2020ISUCG1A - UNIT CONTROLLER

IS2020ISUCG1A	 - 	UNIT CONTROLLER IS2020ISUCG1A	 - 	UNIT CONTROLLER

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS2020ISUCG1A - UNIT CONTROLLER is available in stock which ships the same day.

IS2020ISUCG1A - UNIT CONTROLLER comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS2020ISUCG1A - UNIT CONTROLLER, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part No.: IS2020ISUCG1A
Manufacturer: General Electric
Product Type: Control Module
Series: Mark VI

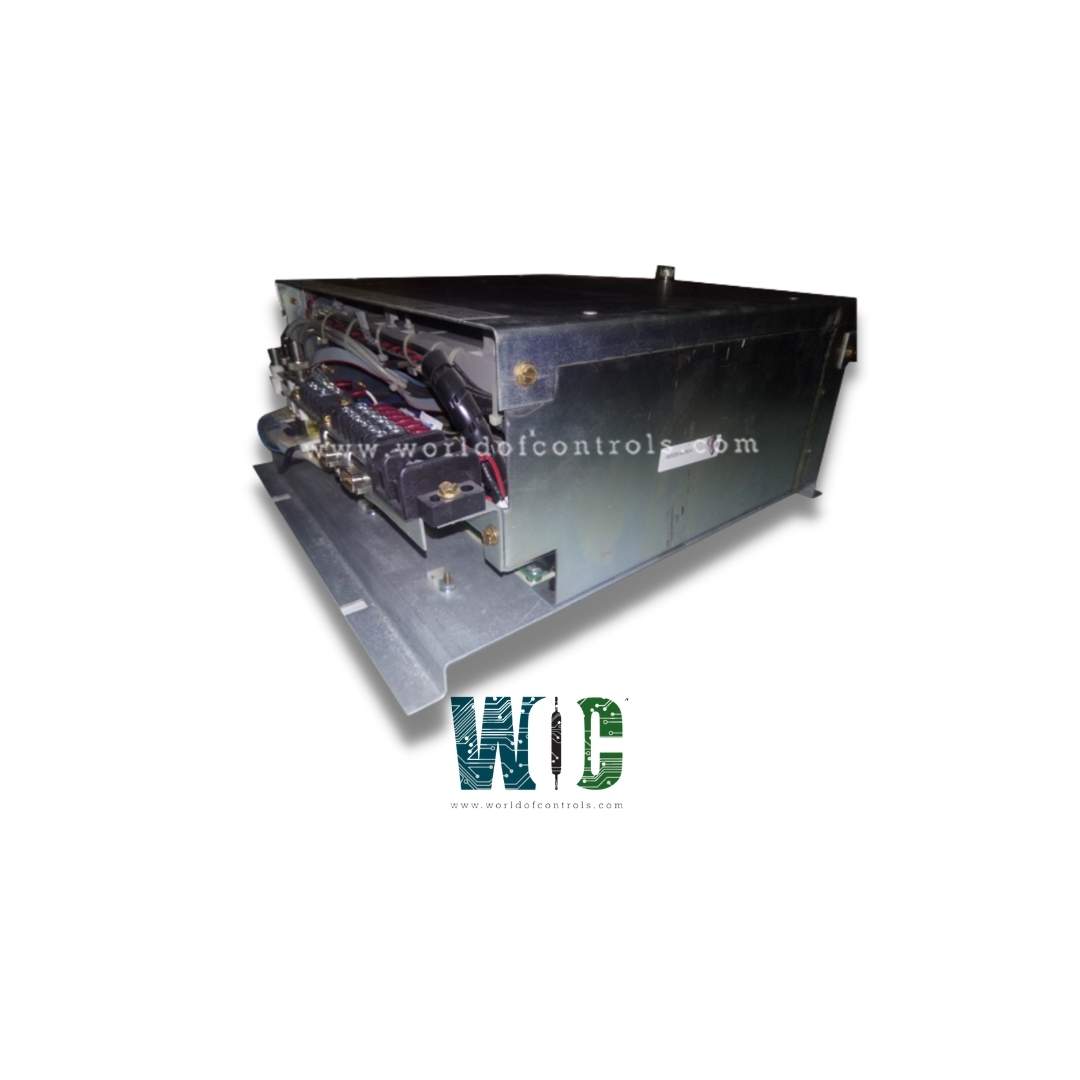

IS2020ISUCG1A is a unit control module developed by General Electric. It's part of the Mark VI control system. Mark VI is General Electric's third generation of gas and steam turbine management systems, which uses a TMR (Triple Module Redundant) design with three independent and full Control Modules, power supplies, and IONets. The component is intended to be one of the three separate modules.

  • The board uses termination boards and I/O cards with a TMS320C32 DSP processor to digitally filter data before converting it to 32-bit IEEE-854 floating-point format. An internal communications card, a primary processor card, and an optional flash drive card are all included in the Control Module.
  • The primary processor card occupies two slots, while the others occupy one. Depending on the program, the primary processor card will run the majority of the application software in 10/20/40 milliseconds.
  • The card uses IONet to interface with other Mark VI control system modules. The Control Module's VCMI card serves as the bus master. This connects slave stations to an Ethernet 10Base2 network.
  • While the board is designed to perform control, monitoring, and protection functions, some applications will require backup protection. Emergency Overspeed protection is one example.
  • For turbines without a mechanical Overspeed bolt, this is always provided, and the IONet is expanded to a Backup Protection Module available in simplex or triple redundant forms in this application.
  • During shipment, WOC will carefully box and protect the component with a static-reducing sleeve. For safety information and installation instructions, please consult any GE manuals or data sheets that you may have.

Our team of experts is here to help you with your Mark VI requirements 24 hours a day, 7 days a week. Please contact WOC if you require any additional information.



Frequently Asked Questions



What is IS2020ISUCG1A?
IS2020ISUCG1A is a unit control module developed by General Electric.

How to obtain IS2020ISUCG1A?
Contact WOC. WOC provides GE turbine control components worldwide.
