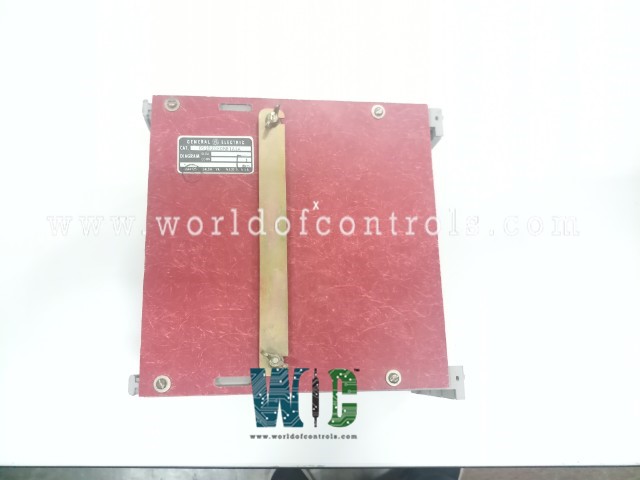

DS3820RDMB1A - Advance Relay Drive Control Module

SPECIFICATIONS:

Part Number: DS3820RDMB1A
Manufacturer: General Electric
Series: Mark IV
Product Type: Advance Relay Drive Control Module
Input Voltage: 24V DC
Memory Capacity: 128 MB RAM, 128 MB Flash
Processor Speed: 400 MHz
Operating Temperature: -20°C to +60°C
Signal Type: Digital pulse signals
Communication Interfaces: 2 Ethernet, 2 CANopen
Power Consumption: 30 W
Mounting Type: DIN rail
Dimensions: 173.2 mm x 101.6 mm x 76.2 mm
Repair: 3-7 Days
Availability: In Stock
Weight: 0.45 kg
Status: Discontinued by Manufacturer
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

DS3820RDMB1A is an Advanced Relay Drive Control Module manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Gas Turbine Control Systems. The primary function of the Advance Relay Drive Control Module is to send the necessary signals to activate or deactivate the relay, depending on the requirements of the system. This is crucial for systems where multiple relays must be controlled simultaneously, ensuring seamless operation and protection of the system. These features can include real-time monitoring, fault detection, and the ability to handle complex or high-voltage systems more effectively. For instance, advanced control modules might be capable of monitoring the status of the relays and providing feedback on their operational condition.

FUNCTIONS OF RELAY DRIVE CONTROL MODULE:

• Relay Control: The primary function of the module is to control the activation and deactivation of relays. It sends the necessary electrical signals to the relay to switch it on or off, based on the needs of the system. This control enables the module to regulate the flow of electricity to various parts of the system, ensuring that components are energized or de-energized as required.

• Signal Amplification and Conditioning: The module can amplify or condition low-power control signals so that they can operate high-power relays. This is particularly important in systems where the control circuit operates at a lower voltage or current than the relay, ensuring the relay can handle higher loads without damaging the control circuit.

• Fault Detection and Diagnostics: Advanced relay drive modules often come equipped with fault detection capabilities. These systems monitor the performance of the relay and other connected components, checking for issues such as relay failure, overheating, or electrical faults. If any anomalies are detected, the module can trigger alarms or take corrective action, such as shutting down the system or isolating the affected component to prevent further damage.

• Safety Protection: In addition to fault detection, the module provides built-in safety features such as overload protection, short-circuit protection, and thermal shutdown. These safety mechanisms ensure that the system remains operational within safe limits, preventing excessive current or voltage from damaging the relay or other system components.

• Relay Monitoring and Feedback: The module may include capabilities to provide feedback about the status of the relay, such as whether it is engaged or disengaged. This feedback is essential for operators to monitor the system's health and to ensure that relays are operating correctly. Some modules also allow remote monitoring, which can be crucial for systems that require constant oversight or troubleshooting.

• Automated Operation: The module may include the ability to automate relay control based on predefined conditions or inputs, such as temperature, pressure, or time. This automation reduces the need for manual intervention, making the system more efficient and reducing human error.

• Multiple Relay Control: In advanced systems, the module can control multiple relays simultaneously or in sequence. This is particularly useful in complex applications where several relays need to work together in a coordinated manner, such as in large industrial machines, automotive systems, or power distribution networks.

WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is an Advance Relay Drive Control Module?

An Advance Relay Drive Control Module is an electronic component designed to manage and control relays within an electrical or automation system. It sends control signals to activate or deactivate relays, enabling the flow of electricity to different components in the system.

How does the Advance Relay Drive Control Module enhance safety?

The module includes built-in safety features such as overload protection, short-circuit protection, and thermal shutdown. These features prevent the relay or system from being damaged by excessive current, voltage, or temperature.

How does the module detect faults in the system?

The module monitors the operational conditions of the relays and connected components. It checks for issues like overheating, relay failure, or electrical faults. If any problems are detected, the module can alert the operator or take corrective action, such as shutting down the system to prevent damage.
