DS3800NPSP - MK4 CIRCUIT BOARD

SPECIFICATIONS

Part Number: DS3800NPSP
Manufacturer: General Electric
Series: Mark IV
Function: Power supply circuit board

The DS3800NPSP is a Mark IV control system power supply circuit board. A printed circuit board, or PCB, is the device. The DS3800NPSP was created by General Electric to be a component of the Speedtronic Mark IV system. It is preferred by Gas & Steam turbine industry.

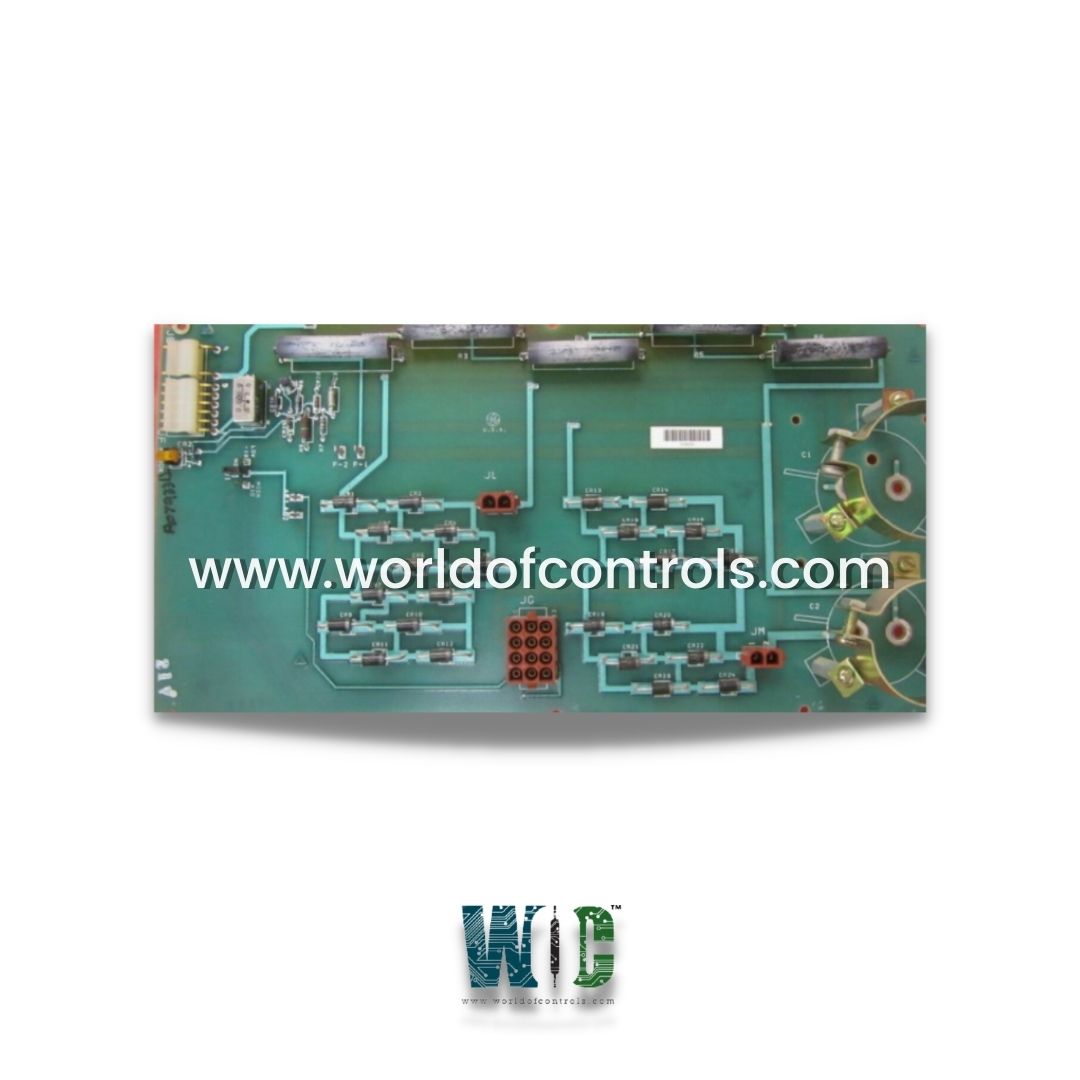

• The circuit board has two spaces on the right side of the circuit board designed to accommodate large capacitors. C1 and C2 are the designations for these areas. On the bottom, half of the board are twenty-four small black and grey diodes. These diodes are organized into two columns, each with six rows of two diodes.
• Three red terminal blocks are positioned among these diodes. JL and JM are the names of two of these terminal blocks. Each of these has two terminals. The third terminal block has a total of twelve terminals. An operator can connect additional components to the board using these terminals.
• At the top of the circuit board are five large black resistors. R2 to R6 are the resistor numbers. Next to these larger resistors is a very small metal resistor. On the left edge of the board is one light-emitting diode, also known as an LED. When this diode is turned on, it emits an orange glow. On the right half of the board, there is one silver rectangular capacitor. The circuit board's full part number is listed on the bottom edge of the board.

WOC has the largest stock of Speedtronic Mark IV Spares and we can repair your faulty DS3800NPSP with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts is available round the clock to support your critical spare needs, contact us.



FREQUENTLY ASKED QUESTIONS



What is DS3800NPSP?
DS3800NPSP is a Mark IV control system power supply circuit board.

How to Obtain DS3800NPSP?
World of Controls provides DS3800NPSP as well as other turbine control products. Contact WOC.
