DS3800NPRB1 - PROXIMITOR INTER GENERAL ELECTRIC

SPECIFICATIONS

Part Number: DS3800NPRB1
Manufacturer: General Electric
Series: Mark IV
Function: Motor Field Regulator

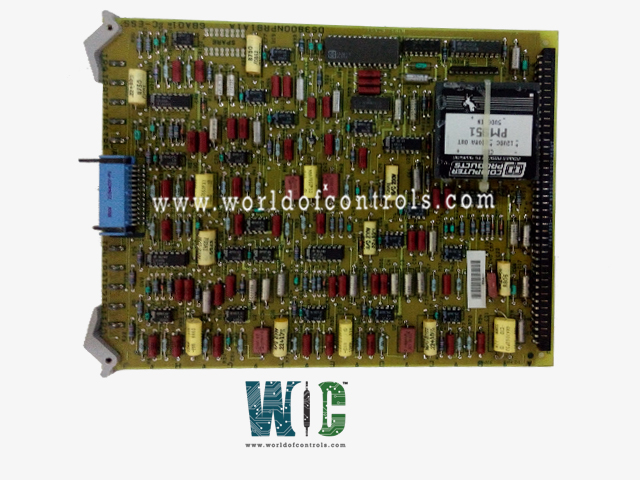

GE Speedtronic Mark IV DS3800NPRB1 is a Proximity Interface Circuit Board and is part of the Mark IV gas turbine control system. A lengthy black connector port runs the length of the DS3800NPRB1 circuit board. A smaller blue connector port is located on the circuit board's other end. The part number for the port, 218A4637-P3, is written on the component's top. A male connecting port is the 218A4637-P3. There are ten test points on the right edge of the DS3800NPRB1. From TP0 to TP9, each test point is identified with the initials TP. On the DS3800NPRB1, there is a cubic black converter.

• The part number and the voltage of this converter, 12VDC (12 volts DC), are inscribed on the top of the part. On the DS3800NPRB1 printed circuit board, there are twenty-seven integrated circuits. The size of the integrated circuits varies.

• On the top of the mid-sized integrated circuits is printed the part number JM318AC LM348N. The largest integrated capacitor has the part number H13-507-5 L0131ACME inscribed on it. A yellow resistor network can be found at the DS3800NPRB1 lower-left corner.

• WOC has the largest stock of Speedtronic Mark IV control spares and we can repair your faulty DS3800NPRB1 with a warranty of 12 months.

• WORLD OF CONTROLS can also supply UNUSED and REBUILT DS3800NPRB1 backed up with a warranty of 24 months. Our team of experts is available round the clock to support your DS3800NPRB1 needs.

• Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is the function of Mark IV DS3800NPRB1?

The DS3800NPRB1 is a field regulator for motors.

Does the DS3800NPRB1 have a Warranty?

WOC can also supply UNUSED and REBUILT DS3800NPRB1 backed up with a warranty of 24 months.

How long does it take for a WOC DS3800NPRB1 to Ship?

WOC maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.

What is the Phone Number for WOC?

Please contact World of Controls FZE for sales at +1 609 385 1231
