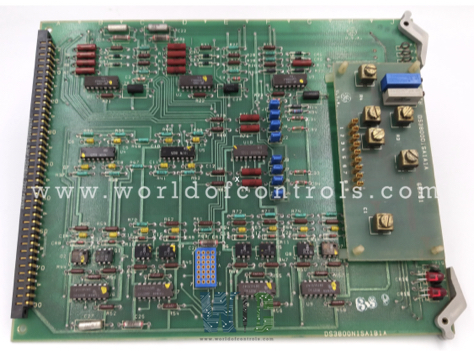

DS3800NISA - Signal Isolator Board

SPECIFICATIONS:

Part Number: DS3800NISA
Manufacturer: General Electric
Series: Mark IV
Product Type: Signal Isolator Board
Number of channels: 16
Operating temperature: -35 to 55 °C
Size: 8.26 cm high x 4.19 cm
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

DS3800NISA is a Signal Isolator Board manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Gas Turbine Control Systems. A signal isolator board is a device used in gas turbine control systems to isolate the control signals between different sections of the system. This is typically done to prevent electrical interference and noise from interfering with the control signals, which could lead to inaccurate readings or even system failure. The signal isolator board works by taking the control signals from one section of the control system and isolating them from the signals in another section using galvanic isolation. Galvanic isolation is the process of separating electrical circuits by using a barrier such as a transformer or an optocoupler to prevent the flow of electrical current between them.

The signal isolator board can also help to increase the overall reliability of the gas turbine control system by protecting against electrical faults, such as short circuits or voltage spikes, that can damage sensitive control components. Additionally, signal isolator boards can be designed to provide a range of other features, such as signal conditioning, amplification, or filtering, depending on the specific requirements of the system. Signal isolator boards used in gas turbine control systems can have a range of features depending on the specific requirements of the system. Some common features include:

Galvanic isolation: This is the most important feature of a signal isolator board. It isolates the control signals between different sections of the control system, preventing electrical interference and noise from interfering with the signals.

Signal conditioning: Signal conditioning can be used to modify the signals to suit the requirements of the control system. For example, the signal can be amplified, filtered, or converted to a different voltage level.

Fault protection: Signal isolator boards can provide protection against electrical faults, such as short circuits or voltage spikes, that can damage sensitive control components.

Accuracy: Signal isolator boards should provide accurate signal isolation to ensure that the control system is functioning as intended.

Compatibility: The signal isolator board should be compatible with the control system's input and output signals. Some signal isolator boards can be configured to work with a range of input and output signals.

Durability: Signal isolator boards should be designed to withstand the harsh operating conditions of gas turbine control systems, including high temperatures, vibration, and shock.

WOC has the largest stock of GE Speedtronic Gas Turbine Control System Replacement Parts. We can also repair your faulty boards. We can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is a signal isolator board in a gas turbine control system?

A signal isolator board is a device used to isolate the control signals between different sections of a gas turbine control system. The board prevents electrical interference and noise from interfering with the control signals, which could lead to inaccurate readings or even system failure.

How does a signal isolator board work in a gas turbine control system?

The signal isolator board takes the control signals from one section of the control system and isolates them from the signals in another section using galvanic isolation. Galvanic isolation is the process of separating electrical circuits by using a barrier such as a transformer or an optocoupler to prevent the flow of electrical current between them.

What are the benefits of using a signal isolator board in a gas turbine control system?

Signal isolator boards provide reliable and accurate signal isolation to ensure the safe and efficient operation of the system. They protect against electrical faults, increase the overall reliability of the system, and can provide a range of other features such as signal conditioning, amplification, or filtering
