DS3800NFCF1J1G - GE FIRING CIRCUIT MODULE

DS3800NFCF1J1G - GE FIRING CIRCUIT MODULE DS3800NFCF1J1G - GE FIRING CIRCUIT MODULE

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS3800NFCF1J1G - GE FIRING CIRCUIT MODULE is available in stock which ships the same day.

DS3800NFCF1J1G - GE FIRING CIRCUIT MODULE comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS3800NFCF1J1G - GE FIRING CIRCUIT MODULE, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part No.: DS3800NFCF1J1G
Manufacturer: General Electric
Product Type: Firing Circuit Module
Series: Mark IV

DS3800NFCF1J1G is a GE Firing Circuit Module developed by GE under the Mark IV series. The Mark IV, which was designed to manage gas/steam turbines, can prevent the system from working in hazardous situations. Some procedures, such as setup, shutdown, and cooling, can also be automated.

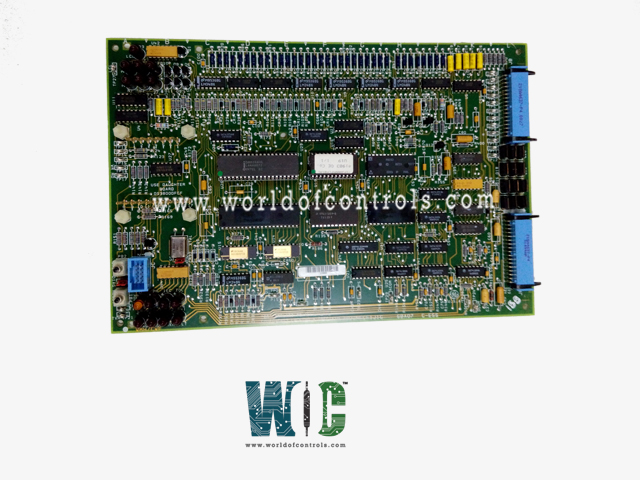

  • For the optional auxiliary DS3800DFCF, the DS3800NFCF1J1G serves as a motherboard. This board adds various components, including ammeters, when it is installed. To support the corners of DS3800DFCF, four nylon pins are inserted on the left side of DS3800NFCF1J1G. If the board is placed, seventeen metal pins hold it in place.
  • The DS3800NFCF1J1G is made up of 42 circuits, including flip-flops (buffered for maximum isolation from external noise), 4-bit up/down counters, 8-bit static MOS RAM chips, and crystal oscillators. All of the circuits are clearly identified.
  • Fifteen LEDs are included. There are fourteen red and one amber in all. A 10-pin vertical male connector, two 218A4637-P4 0027 connectors, two jumper switches, twenty-one transistors, and nine TP test points are included on the board. Capacitors of various values are included in the module, including 8542 +/- M/e 0022 200V electrolytic capacitors and Resistors made of the ceramic-covered metal film. It includes two plunge switches and is factory drilled and marked for alignment. The first is labeled "step," while the second is labeled "reset."

The most extensive collection of GE Speedtronic Mark IV control components can be found at World of Controls. Our experts are ready to assist you with your Mark IV requirements. Please contact WOC right away if you require any additional information.



Frequently Asked Questions



What is DS3800NFCF1J1G?
DS3800NFCF1J1G is a GE Firing Circuit Module developed by GE under the Mark IV series.

How many TP Test points are there on DS3800NFCF1J1G?
There are Twenty-nine TP test points on DS3800NFCF1J1G.

How to Obtain DS3800NFCF1J1G?
World of Controls provides DS3800NFCF1J1G as well as other turbine control products. Contact WOC.
