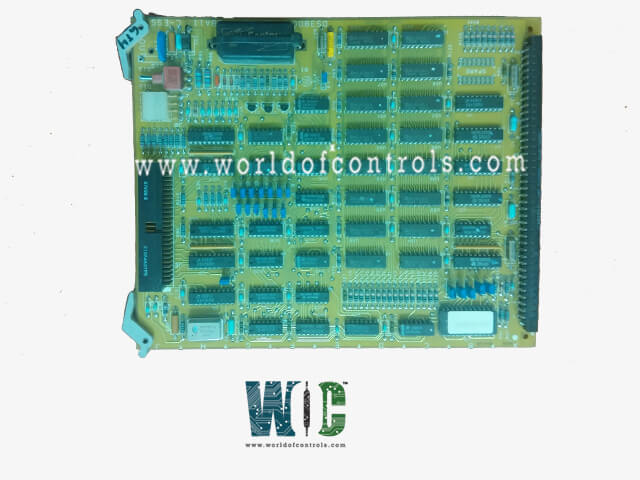

DS3800HRMB1N - Battery ROM Board

SPECIFICATIONS

Part No.: DS3800HRMB1N
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Technology: Surface-mount
Product Type: Battery ROM Board
Availability: In Stock
Series: Mark IV

Functional Description

DS3800HRMB1N is a Battery ROM Board developed by GE. It is a part of Mark IV control system. The board is designed with a modular connector on one end and retention levers on the other, facilitating easy and secure installation within the drive system.

Features

• The board includes a 40-pin connector embedded on the board, a 20-pin connector, and seven jumpers. These connectors ensure that the board can interface effectively with other components and systems.
• Features a reset toggle switch that can be used to resolve processing errors. This switch is essential for troubleshooting intermittent or unexplained processing issues while the drive is still operational.
• An embedded analog/digital converter on the board converts analog signals into digital format, essential for signal processing throughout the drive system.

Installation and Usage

• The reset toggle switch can be activated by a trained servicer to resolve intermittent processing errors or irregularities. It is important to note that this should only be done by trained personnel due to the risk of electric shock or burns from the current in the drive.
• Best practices recommend having two individuals perform any work on the drive. This ensures that if one servicer is injured, the other can call for help, administer first aid, or take other necessary actions, including using the emergency shutoff device.
• The 40-pin connector is located between the retention levers on the front edge of the board, allowing easy access to the ribbon cable. The ribbon cable originates from another board or component within the drive and terminates with a plastic connector.
• The connector carries 40 separate control signals to the board and is equipped with retention latches. These latches ensure the connector remains securely attached, preventing accidental disconnection.
• To remove the ribbon cable, the servicer should first swing the retention latch over the connector and then perform the same action for the other retention latch.

The WOC team is always available to help you with your Mark IV requirements. For more information, please contact WOC.

Frequently Asked Questions

What is DS3800HRMB1N?
It is a battery ROM board developed by GE under the Mark IV series.

What is the role of the 40-pin connector on the board?
The 40-pin connector interfaces with a ribbon cable from another board or component within the drive. It carries 40 separate control signals to the board and is equipped with retention latches to ensure a secure connection.

What does the analog/digital converter on the board do?
The analog/digital converter converts analog signals into digital format, which is used for signal processing throughout the drive system.
