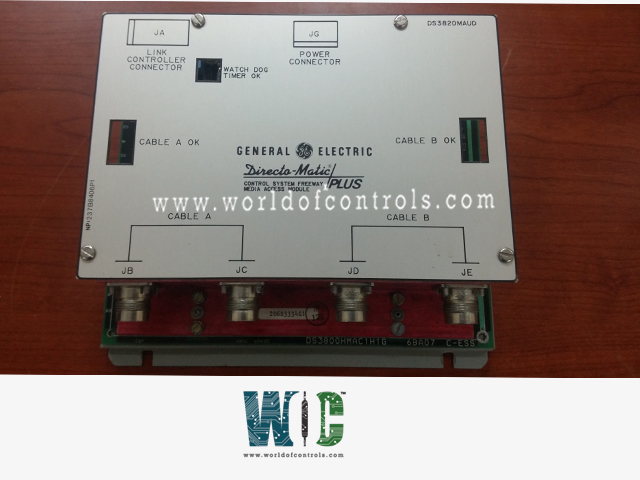

DS3800HMAC1H - Media Access Control Module

SPECIFICATIONS:

Part No: DS3800HMAC1H
Manufacturer: General Electric
Series: Mark IV
Product Type: Media Access Control Module
Input Voltage: 24V DC / 48V DC
Power Consumption: ≤ 15W
Signal Input Type: Analog (±10V, 4-20mA)
Frequency Response: DC to 5 kHz
Output Range: 0-10 V, 4-20 mA
Input Voltage Frequency: 50Hz
Mounting: Standard mounting
Operating Temperature: -20°C to +70°C
Country of Origin: USA
Availability: In Stock

FUNCTIONAL DESCRIPTION:

DS3800HMAC1H is a Media Access Control Module manufactured and designed by General Electric and is part of the Mark IV Series used in GE Speedtronic gas turbine control systems. The MAC module operates at the Data Link Layer (Layer 2) of the OSI model and ensures that devices can share the same communication medium without interference or data collisions. In complex systems, like those used in industrial environments, the MAC module plays a crucial role in maintaining seamless communication, enabling real-time control and monitoring, which is critical for the safe and efficient operation of the entire system. The MAC module also detects and corrects errors in data transmission through mechanisms like Cyclic Redundancy Check (CRC). This error detection is crucial in control systems, where even minor data corruption could lead to malfunctioning equipment or system failures.

FUNCTIONS MEDIA ACCESS CONTROL MODULE:

The Media Access Control (MAC) Module performs several essential functions to ensure efficient and reliable data communication in control systems. These functions help maintain the integrity and stability of the system by managing how devices communicate with one another over a shared network. Below are the primary functions of a MAC module:

• Network Access Control: One of the key functions of the MAC module is to control how devices access the network. In environments where multiple devices are transmitting data over the same medium, the MAC module ensures that only one device transmits at a time.

• MAC Addressing: The MAC module assigns a unique MAC address to each device on the network. This address serves as a unique identifier for devices, ensuring that data packets are correctly routed to the appropriate destination.

• Flow Control: Flow control is another critical function of the MAC module. It regulates the rate at which data is sent across the network to prevent congestion and ensure that devices can handle the incoming data at the proper rate.

WOC has the largest stock of OEM Replacement Parts for GE Speedtronic Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is a Media Access Control (MAC) module?

A Media Access Control (MAC) module is an essential component of networking systems responsible for managing how devices access and communicate over a shared network. Operating at the data link layer (Layer 2) of the OSI model, the MAC module provides unique addressing for devices in the form of a MAC address, a hardware-based address assigned to the network interface card (NIC).

Why is the MAC address important for network communication?

The MAC address is crucial for network communication because it provides a way for devices to uniquely identify and communicate with each other within a local network. Since the MAC address is embedded in the hardware of network devices, it ensures that data is directed to the correct destination within a network, such as in Ethernet or Wi-Fi connections.

How does a MAC module ensure data integrity?

The MAC module ensures data integrity by encapsulating data into frames with proper addressing and error-checking mechanisms. In Ethernet, for example, the MAC frame includes a Frame Check Sequence (FCS) that uses cyclic redundancy check (CRC) to detect errors in the transmitted data.
