DS3800HLNE1B - Network Controller Card

SPECIFICATIONS:

Part Number: DS3800HLNE1B
Manufacturer: General Electric
Series: Mark IV
Product Type: Network Controller Card
Board Size: 55 mm x 65 mm
Operating Temperature: 0 - 50° C
Repair: 3-7 Days
Weight: 0.15 Kg
Country of Origin: USA
Availability: In Stock

FUNCTIONAL DESCRIPTION:

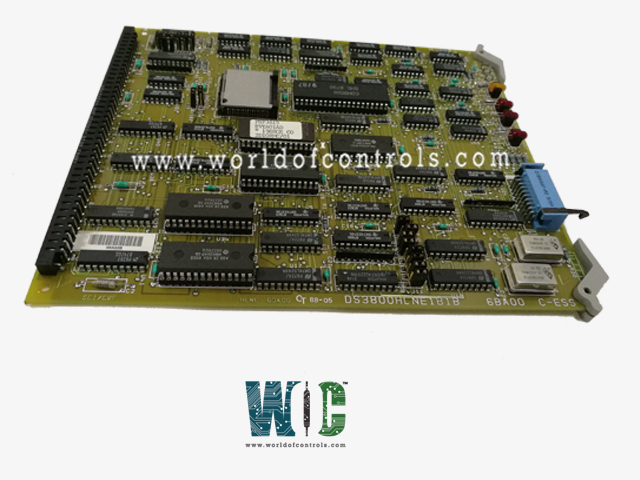

DS3800HLNE1B is a Network Controller Card manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic turbine control systems. The Board has retention levers on one end and a modular connector on the other. A microprocessor is installed on the board. Numerous transistor-transistor logic devices are present on the board. Three red indicator LEDs and one amber indicator LED are also present on the GE Network Controller Board. Additionally, the board features several electrically erasable, programmable read-only memory (EEPROM) module sockets. 16 jumpers and a 34-pin connector are also present on the board. It has a specialized microprocessor that manages networking operations.

INSTALLATION:

• When installing the board, choose a rack placement that has at least 3 inches of clearance all around it so that air can flow freely over the microprocessor. The drive could overheat if the air is unable to remove the board's excessive heat. Make that the drive's ribbon cables are not obstructing airflow.

• Run the diagnostic tools if the drive shuts down to see a log of the most recent errors. The drive may have overheated, as you might discover. The drive will shut down automatically as a result. Make that the airflow is not obstructed before restarting the drive. The air vents at the top and bottom of the drive must be free of obstructions.

WOC has the largest stock of GE Speedtronic Mark IV control system replacement parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.



FREQUENTLY ASKED QUESTIONS:

How to Check Price and Availability For Network Controller Card?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

What Payment Options do You Accept?

Bank Transfer is the preferred payment method. For more payment options contact us.

Are the Products Genuine OEM Units?

These items have been certified by WOC Quality Control to be genuine OEM Units obtained through OEM or independent third-party channels.
