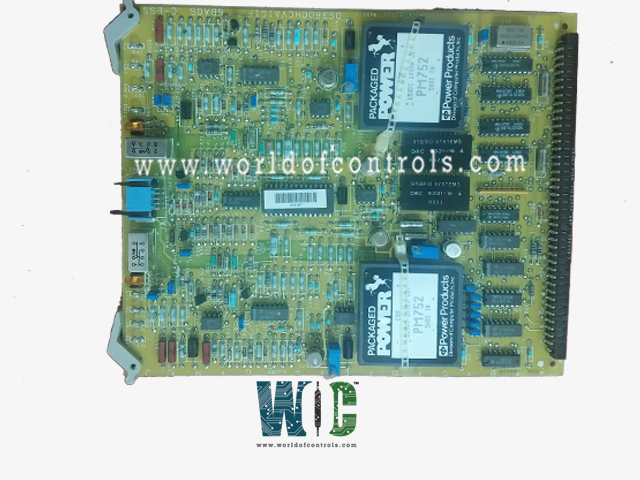

DS3800HCVA1H - Digital To Analog Board

SPECIFICATIONS

Part No.: DS3800HCVA1H
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Digital To Analog Board
Availability: In Stock
Series: Mark IV

Functional Description

DS3800HCVA1H is a Digital To Analog Board developed by GE. It is a part of the Mark IV control system. This board is designed to facilitate conversion of digital signals into analog outputs, a critical function in control systems where seamless integration between digital processing and analog actuation is required.

Features

• High-Precision Conversion: The board ensures accurate digital-to-analog signal conversion, maintaining the integrity of the original digital signal while adapting it for analog devices.
• Seamless Integration: Designed to work within the Mark IV architecture, integrates smoothly with other boards and modules, contributing to efficient and coordinated turbine control.
• Multiple Output Channels: Equipped with multiple analog output channels to support a range of devices, the board enables simultaneous operation of various subsystems.
• Robust Design: Built to withstand the harsh conditions of industrial environments, the board ensures reliable performance under extreme temperatures, vibrations, and electrical noise.
• Diagnostic Capabilities: Integrated diagnostic features allow real-time monitoring of the board’s performance, enabling quick detection and resolution of potential issues.
• Signal Conversion: Converts digital data (0s and 1s) from a microprocessor or digital control system into corresponding analog signals (e.g., voltages or currents) that can drive physical devices.
  Signal Output: Provides analog outputs to control various mechanical or electrical devices based on the converted signals.
  Control Interface: Enables the system to interface with analog components, which are often used for precise control, measurement, and feedback in systems like turbines, industrial machines, and scientific equipment.

Components

• Digital Inputs: The input data is typically received from a microprocessor, digital controller, or computer system.
• DAC (Digital-to-Analog Converter): This is the core component responsible for the conversion of digital data into analog signals.
• Output Channels: Analog outputs that are used to drive devices or provide feedback in real-time.
• Voltage and Current Control: Regulates the level of output voltage or current based on the digital input, which can be crucial for precision in industrial control.

The WOC team is always available to help you with your Mark IV requirements. For more information, please contact WOC.

Frequently Asked Questions

What is DS3800HCVA1H?
It is a Digital To Analog Board developed by GE under the Mark IV series.

How does a Digital to Analog Board work?
The board receives digital input from a microprocessor or controller, and through a Digital-to-Analog Converter (DAC), it converts these signals into corresponding analog signals such as voltage or current. These analog outputs can then be used to control analog devices or provide real-time feedback.

How does a Digital to Analog Board contribute to control systems?
D/A Board converts digital control signals into analog outputs that are used to control actuators, valves, and other components, ensuring smooth and precise operation of turbines in power generation systems.
