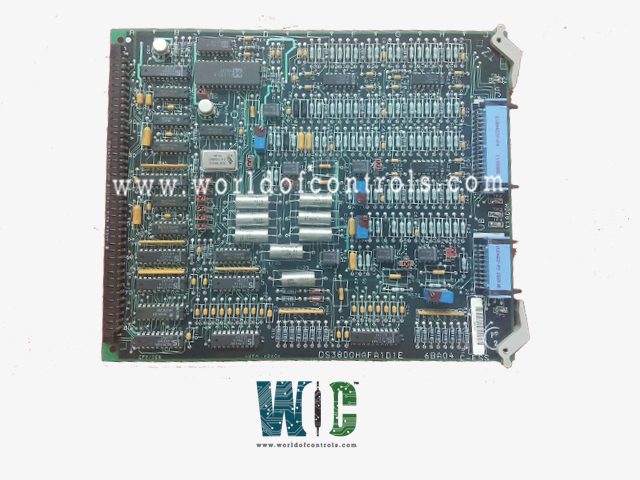

DS3800HAFA - ANALOG AMP CARD

SPECIFICATIONS

Part No.: DS3800HAFA
Manufacturer: General Electric
Product Type: Regulator Board
Series: Mark IV

DS3800HACB is a custom address card developed by GE. The GE Turbine Control Board DS3800HACB has 11 jumpers for board configuration and a single 20-pin connector. The GE Turbine Control Board is designed with features that make installation and removal of the board simple. The board is put into the interior of the drive's board rack.

• The bottom of the board's modular connectors automatically lines with the drive's connectors, forming a secure connection. On the top of the board are retention levers that secure the board in the rack.
• After the board is placed, you can connect a 20-pin ribbon cable to one of the 20-pin connectors on the top edge of the board. When you're ready to remove the board, unplug the 20-pin ribbon wire and move it out of the way. When the ribbon cable is linked to the board, avoid tugging on it. This can damage the connector and cause the wires to be disconnected from the connector on the ribbon cable's end.
• The 11 jumpers are useful for customizing the board to meet your needs. Each of the jumpers has a unique identification number. RST1, RST2, FRZ1, and WRD3 are some of the jumper IDs. Use the same jumper settings on the replacement board as you did on the old board when replacing it.

The most extensive collection of GE Speedtronic Mark IV control components can be found at World of Controls. Our experts are available to assist you with your Mark IV requirements at any time. If you require any additional information, please contact WOC as soon as possible.



Frequently Asked Questions



What is DS3800HACB?
DS3800HACB is a custom address card developed by GE.

What are the jumper IDs on DS3800HACB?
FRZ1, RST1, RST2, and WRD3 are the jumper IDs.

How to Obtain DS3800HACB?
World of Controls provides DS3800HACB as well as other turbine control products. Contact WOC.
