DS2020PDMAG6 - Power Distribution Moudle

DS2020PDMAG6 - Power Distribution Moudle DS2020PDMAG6 - Power Distribution Moudle

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS2020PDMAG6 - Power Distribution Moudle is available in stock which ships the same day.

DS2020PDMAG6 - Power Distribution Moudle comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS2020PDMAG6 - Power Distribution Moudle, contact us and we will get back to you within 24 hours.


Part Number: DS2020PDMAG6
Manufacturer: General Electric
Country of Manufacture: United States
Product Type: Power Distribution Module
Series: Mark VI
Availability: In Stock

DS2020PDMAG6 is a Power Distribution Module manufactured by General Electric as part of Mark V used in gas turbine control management systems. The Power Distribution Module (PDM) provides 125 V dc and 115 V ac (or 230 V ac) to the Mark VI system for all racks and terminal boards. There is a second version of the PDM for the control cabinet in those systems using remote I/O cabinets.


Power Distribution Module AC to DC Converter

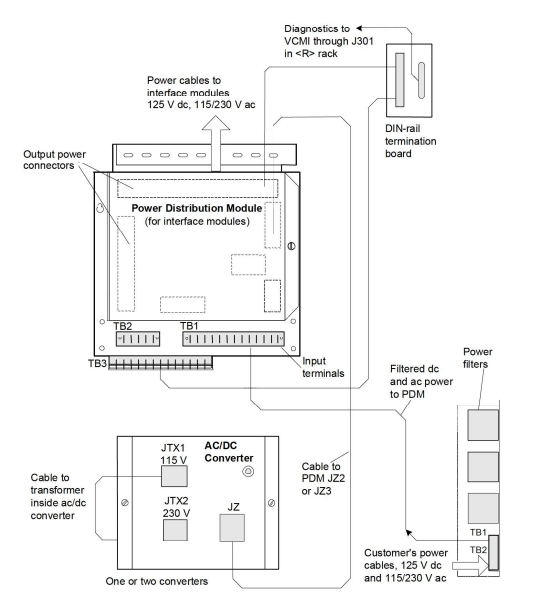

Fig 1: Power Distribution Module AC to DC Converter

Power filters are used to enter the PDM with the customer's 125 V de and 115/230 V ac power. One or two ac/dc converters that output 125 V dc are connected to the ac power by cables. In order to create a backup power supply, this de voltage is then cabled back into the PDM and diode linked to the primary dc power. The VME racks and terminal boards receive this power distribution. The ac/dc converters can handle either 115 V or 230 V ac. For operation at 115 V or 230 V, the transformer cable must be inserted into either JTX1 or JTX2. The PDM is used to gather diagnostic data, which is then linked to a terminal board installed on a DIN rail. After that, a cable travels through J301 to the VCMI in rack "R". Fused and cabled out to the relay terminal boards are the ac feeds, J17–20. The interface (I/O) cabinets, protection modules, TRPG, TREG, and TRLY all have 125 V dc feeders that are fused and wired. The PDM is delivered through a control power filter (CPF), which reduces EMI noise, to ensure a noise-free supply to the boards. As seen in the following illustration, the CPF rack may store two or three Corcom 30 A filter modules. Before being fused and cabled to the TBCI boards, power to the contact inputs first travels through TB2, resistors R3 and R4, and TB2. An excitation voltage of 125 V dc is used for contact inputs.

WOC has the largest stock of Speedtronic Mark V replacement spare parts and we can repair your faulty parts with a warranty of 12 months. WORLD OF CONTROLS can also supply UNUSED and REBUILT backed up with a warranty of up to 24 months. Our team of experts is available round the clock to support your needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.


What is GE Mark V DS2020PDMAG6?

DS2020PDMAG6 is a Power Distribution Module that provides 125 V dc and 115 V ac to the Mark VI system for all racks and terminal boards.

Are the Products Genuine OEM Units?

These items have been certified by WOC Quality Control to be genuine OEM Units obtained through OEM or independent third-party channels.

How to Check Price and Availability For DS2020PDMAG6?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
