DS2020LPPA340A - Line Protection Board

DS2020LPPA340A - Line Protection Board
DS2020LPPA340A - Line Protection Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS2020LPPA340A - Line Protection Board is available in stock which ships the same day.

DS2020LPPA340A - Line Protection Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS2020LPPA340A - Line Protection Board , contact us and we will get back to you within 24 hours.


Part No: DS2020LPPA340A
Manufacturer: General Electric
Function: Line Protection Board
Series: Mark V
Operating temperature: -30 to 65°C
Board Size: 6.25 in x 4.25 in
Availability: In Stock
Product of Origin: USA

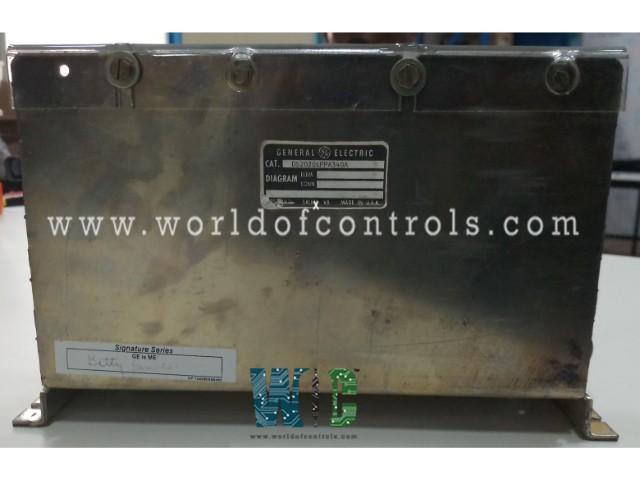

DS2020LPPA340A is a Line Protection Board manufactured and designed by General Electric as part of the Mark V Series used in Drive Control Systems. The GE Line Protection Board has seven jumpers and two terminal blocks, each with three terminals. JP1 through JP7 are the names of the jumpers. There are also test locations on the GE Line Protection Board. The board is mounted on standoffs on another component of the drive and acts as a daughter card for that component. On the opposite component, the signal wires that link to the board originate.

  • The test points on the GE Line Protection Board can assist in isolating and pinpointing any board problems. You must first run the diagnostic tool on the drive to diagnose any problems.
  • The user interface accessible from the keypad can be accessed using the keypad. A display is also included on the control panel, which displays information and allows you to make choices. A history of all faults and warnings linked with the drive may be found here. The components' health is also provided.
  • The test points are useful for evaluating specific circuits if the diagnostics suggest that there is a problem with the board. The test points enable you to test the circuits described in the material that came with the board. The test points have IDs, and the prefix for the IDs is E.
  • The suffix is a numerical value. Some of the test locations, for example, have IDs like E1, E3, and E8. The readings generated by the current indicate the circuit's health when the probes of the testing device are placed on the test points.

WOC has the largest stock of GE Mark V Speedtronic Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


What is GE Mark V DS2020LPPA340A?

It is a Line Protection Board developed by General Electric and used in drive control systems.

How to Check Price and Availability For Line Protection Board?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.
